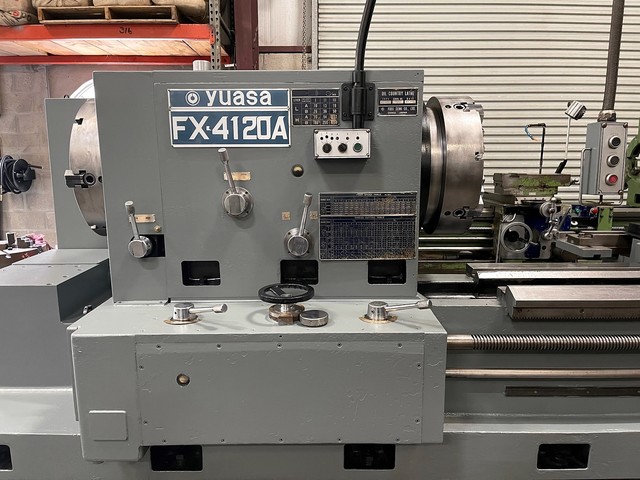

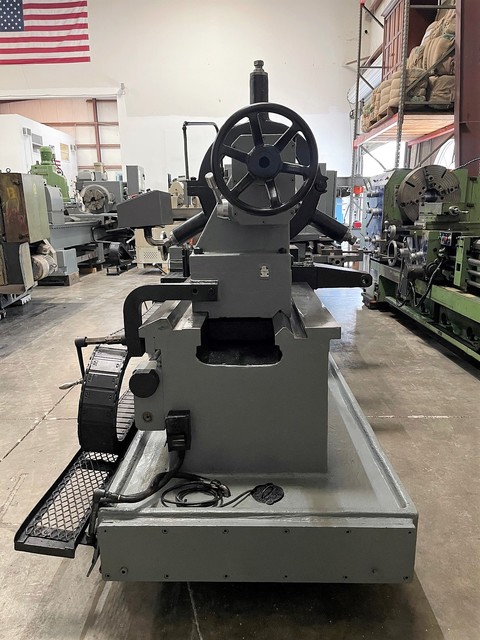

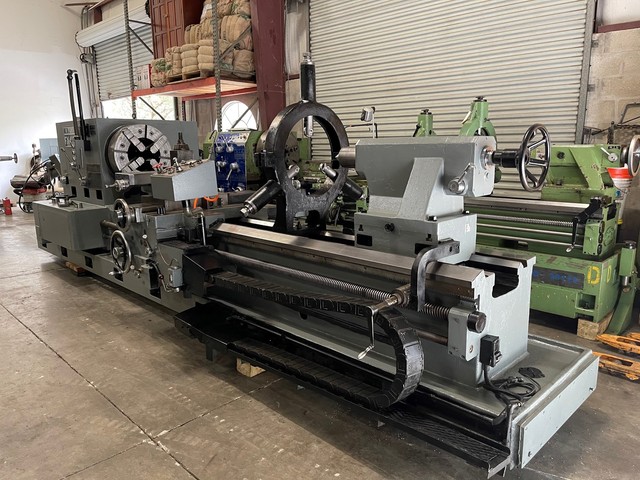

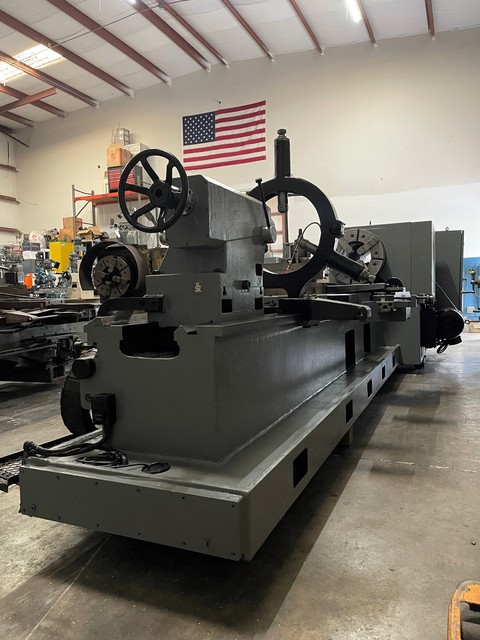

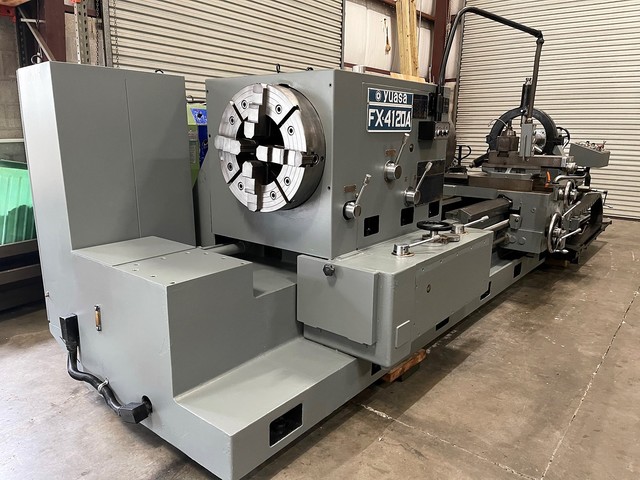

YUASA FX 4120A 43-1/2” X 120”CC 13-1/2” HOLLOW SPINDLE LATHE JAPANESE #GMT-2540

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


FX 4120A
2483
Lathes (Manual)
Hollow Spindle Lathe
used
30000 (LB)
1978
$44,500.00

Feature Video

Description

SPECIFICATION
Reference #
GMT-2540
Model #
FX 4120A
Serial #
2483
Year of manufacture
12/1978
Swing over bed
43-1/2 in
Swing over cross slide
27 in
Distance between centers
120 in
Spindle speeds
(12) 10 to 350 R.P.M.
Spindle bore
13.5 in
Tailstock quill diameter
5 in
Tailstock quill travel
11 in
Tailstock taper
#6 Morse (2 Speed)
Cross slide travel
18.5 in
Compound slide travel
7.5 in
Longitudinal feeds
0.00193 to 0.1078
Cross feeds
0.00096 to 0.0538
Inch threads
1/8 in to 7 T.P.I.
Metric threads
1 to 56mm
Whitworth threads
1.75 in to 56 in
Module threads
1 to14
Diametral pitch
4 to 112
Bed width
25.5 in
CHARACTERISTICS
Equipped With:
Coolant pump

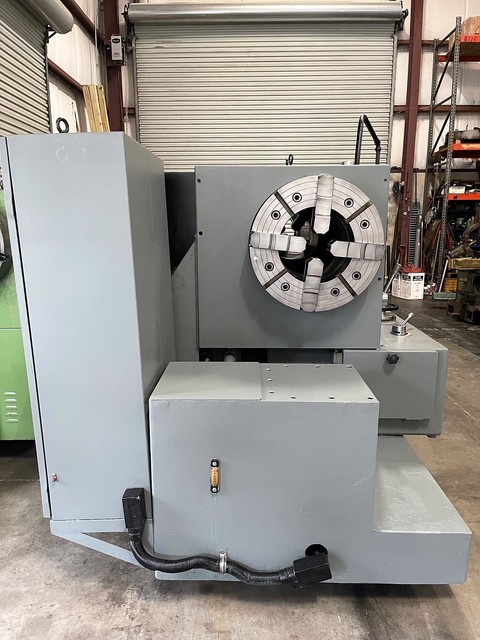

Front & Rear chucks

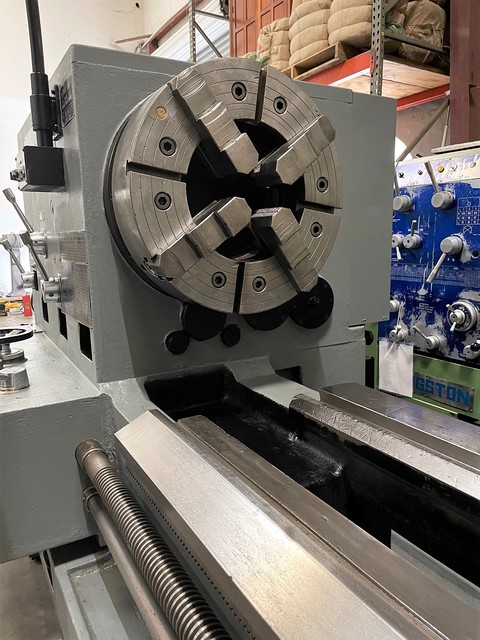

24 in YUASA Japanese 4 Jaw Chuck with 13.5 in bore
24 in YUASA Japanese 4 Jaw Chuck with 13.5 in bore
4 Way Rapid
Taper attachment
Hardened & ground bedways
One piece heavy duty bed casting

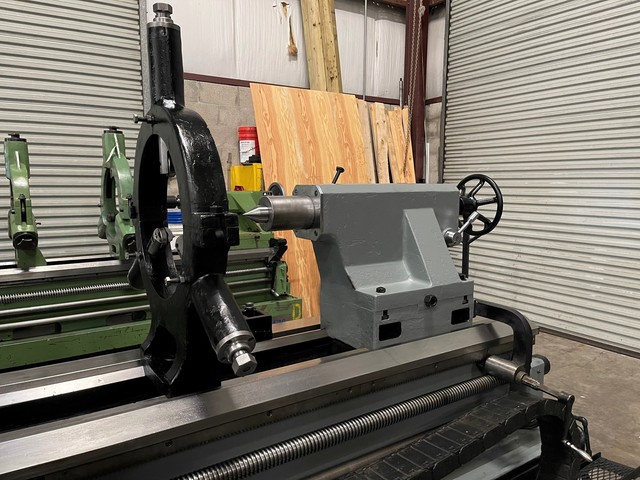

Steady rest 20 in capacity roller type

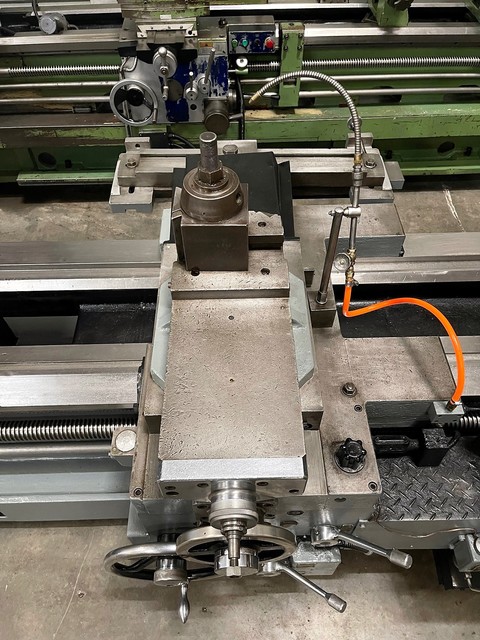

ALORIS DA tool post
Threading dial
(1) Dead center
40 H.P. Main motor 220/440
Machine is currently wired for 220 volt / 3 phase / 60 H.Z.
Approximate Weight (Machine Only):
30000 Lbs.
APPROXIMATE DIMENSIONS:
259 in L x 80 in W x 81 in H
PRICE:
$44,500
