Stock Number: 1469
Yougar YGS-43C
Age: 2015
Condition: As Is, Where Is
Overview: * Easy to operate.CNC control * Auto Z axis return function * Excellent stability and high precision drilling with precise repeatable positioning on X, Y, Z, W axis * High speed processing with 1Mm linear scale and high precision ball screws * Long life machine tool with linear motion, high weight capacity guide rails on all 4 axis (X, Y, Z, W)
Request A Quote On Our Stock Number: 1469 Yougar YGS-43C EDM Hole DrillerRequest a quote on stock# 1469
Specification Description
Machine Travels (X x Y x Z) 17.71" x 11.81" x 15.74"

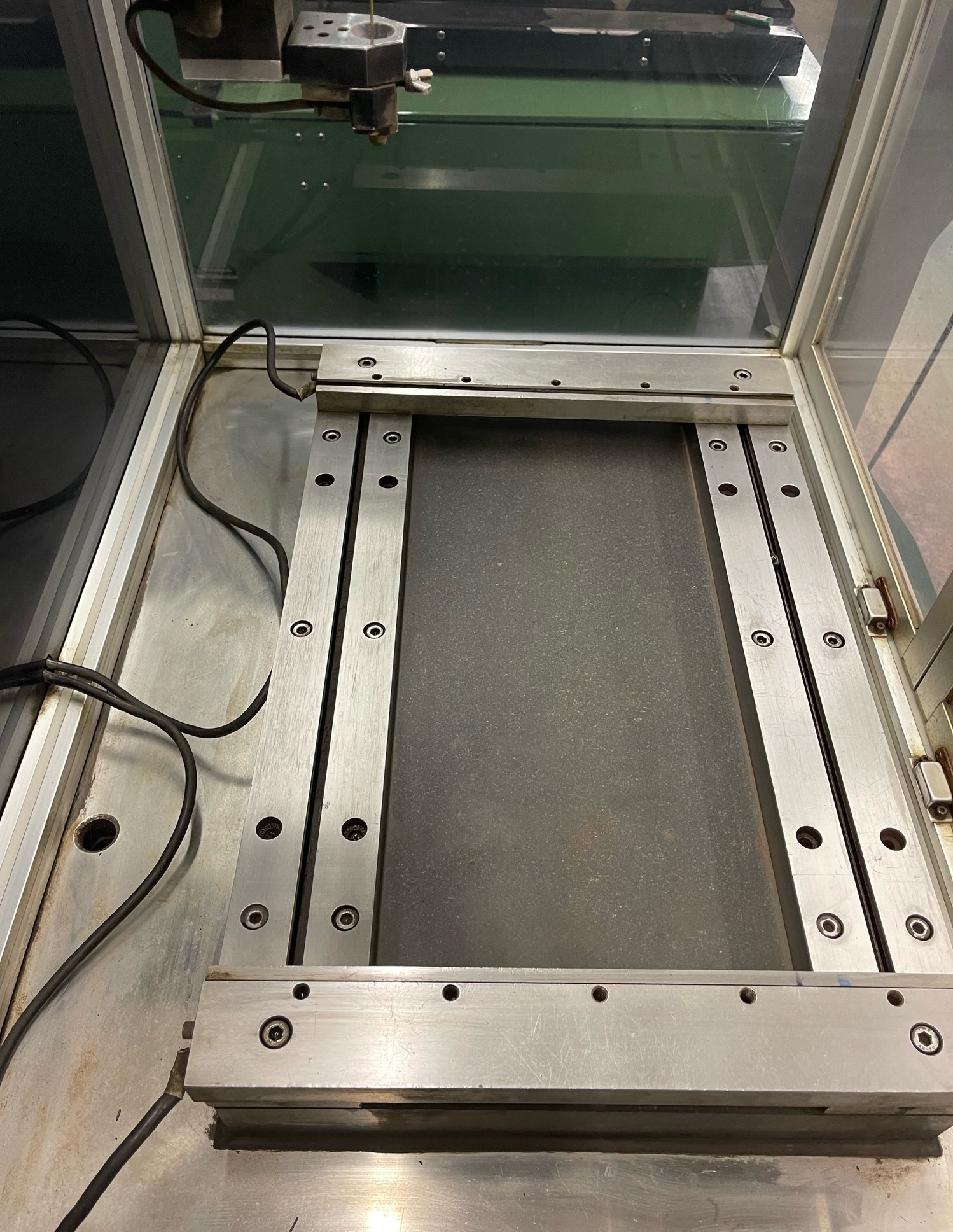

Table Size 35.82" x 26.77"
Maximum Lenth of Electrode 15.74"
Maximum Workpiece Height 13.77"
Maximum Workpiece Weight 1,102 lbs
Electrode Diameter Range .0039" - .118" (0.1 - 3.0mm)
Electrical Requirements 220V/3Phz/50-60Hz 3.3KVA
Machine Dimensions (LxWxH) 62" x53" x 84"H
Total Footprint Dimensions 88" x 83" x 84"H
Machine Weight 2,513 lbs
Equipped With:

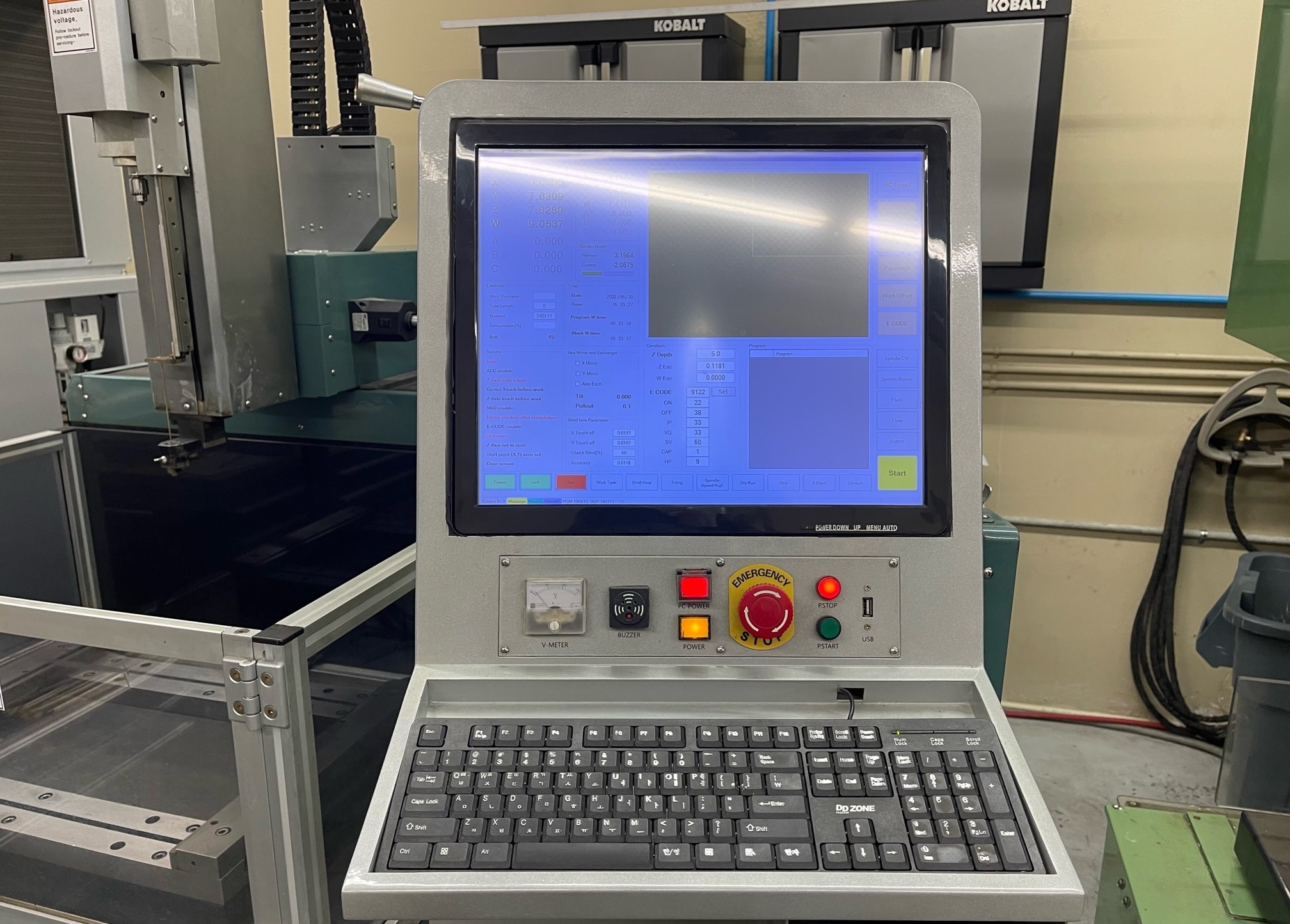

* 17" Touch Screen CNC Control * 32-Bit High DSP Flat Form Ensures Stability of the System * NC Programs, G Code and DXF File Format Capability * Electrode Consumption Saving And Qualified Hole Processing With the Stable Micro Discharge (1Ms) Function * User Custom Program Storage Capability * MDI Machining Function for Simple Jobs * Automatic Position Finding of Edge, ID and Center Point * Automatic Reset and Depth Calculation of Z Axis * Automatic Checking of the Hole-Depth and Returning Function * Automatic Color Display of Current and Next Drilling Positions * Easy to Operate Interactive Interface System * Data Input by USB * Blind Hole Function * Six Language Support [English, Korean, Chinese, Japanese, German, French] * All Available Manuals and Disks
