Description:
1-USED MOTOMAN SSA2000 MIG WELD CELL
WITH EA1400N 6 AXIS CNC DUAL ARM DUAL ARM EA1400N ROBOTS
AND 11,000 LB CAPACITY A/B SIDED INDEX TABLE

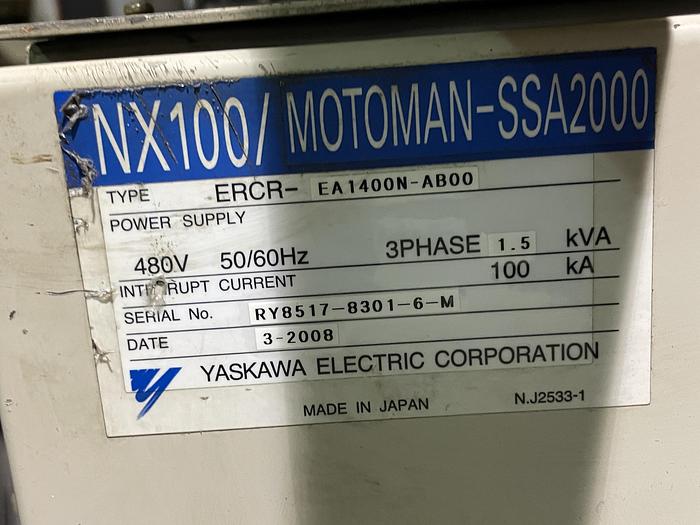

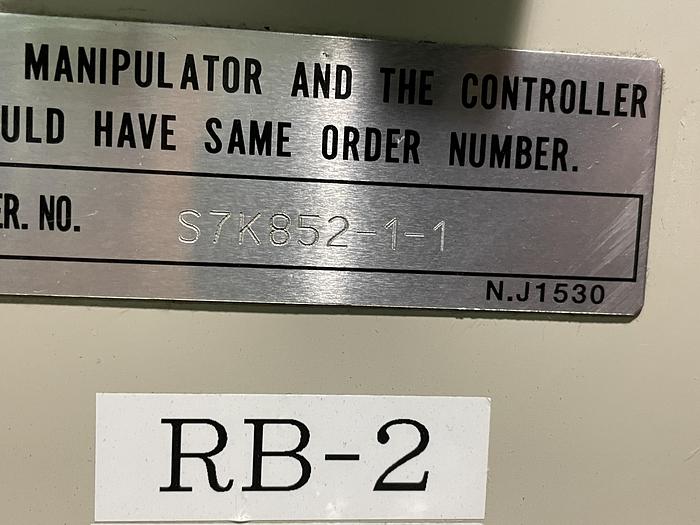

ORDER NUMBER S7K852-1-1
DATE OF MFG. 03/2008
STK#104261
========================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

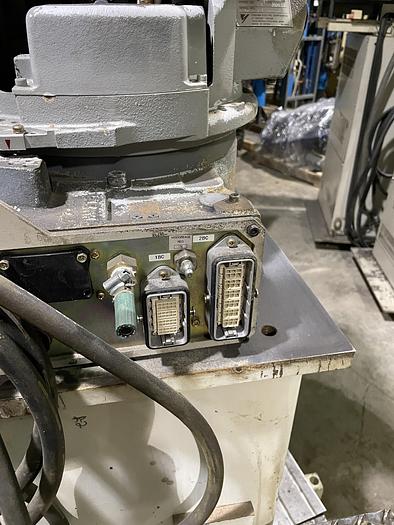

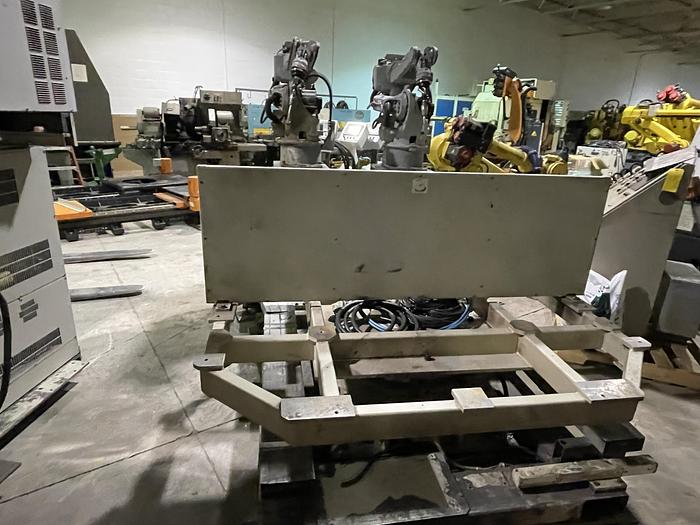

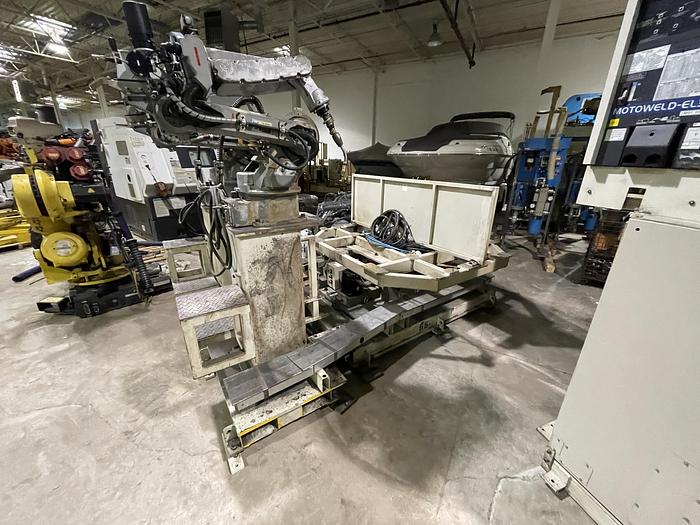

THIS IS A DUAL ARM MOTOMAN WELDING CELL. THE ROBOTS ARE MODEL EA1400N.
BUILT ON A COMMON FABRICATED BASE FOR EASY MOVING AROUND YOUR PLANT.
THE CELL IS EQUIPPED WITH A MOTOMAN 11,000 LB CAPACITY A/B SIDED INDEX TABLE

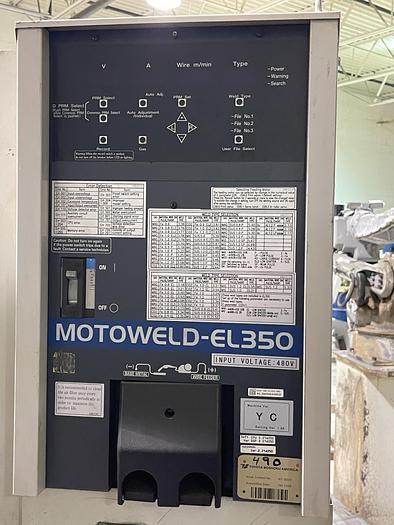

FOR UNLOAD AND LOAD WHILE WORKING. MOTOMAN NX100 CONTROLLERS. MOTOMAN
MOTOWELD EL-350 MIG WELDING POWER SUPPLIES.
Both Robot Specifications:
Axes: 6
Payload: 3.00 kg
H-Reach: 1390.00 mm
Repeatability: Plus/minus 0.0800 mm
Robot Mass: 130.00 kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 150 deg/s (2.62 rad/s)
J2 160 deg/s (2.79 rad/s)
J3 170 deg/s (2.97 rad/s)
J4 340 deg/s (5.93 rad/s)
J5 340 deg/s (5.93 rad/s)
J6 520 deg/s (9.08 rad/s)
Robot Motion Range:
J1 Plus/minus 170 deg
J2 +155 deg - 90 deg
J3 +190 deg - 170 deg
J4 Plus/minus 150 deg
J5 +180 deg - 45 deg
J6 Plus/minus 200 deg
The EA1400N is Motomans popular welding robot arm paired with the powerful NX100controller.
The EA 1400N Motoman welder is a ceiling and wall mountable robot designed for floor plan flexibility. ThE EA-1400N variation allows you to work from above or the side, fitting easily into your workplace.
CELL EQUIPPED WITH:
2-MOTOMAN EA1400N MIG WELDING ROBOTS
2-WELD GUNS
2-MOTOMAN MOTOWELD EL-350 MIG WELDING POWER SUPPLIES
1-MOTOMAN MOTOPOS 5,000 KG (11,000 LB) CAPACITY A/B SIDED INDEX TABLE

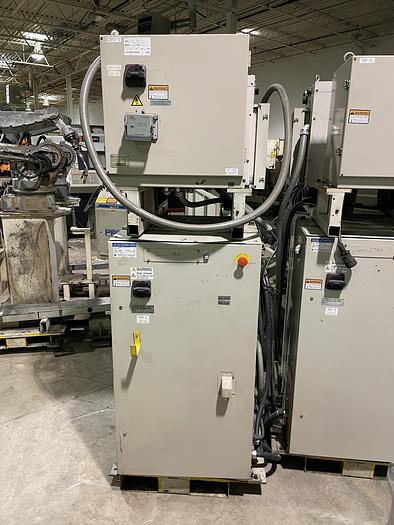

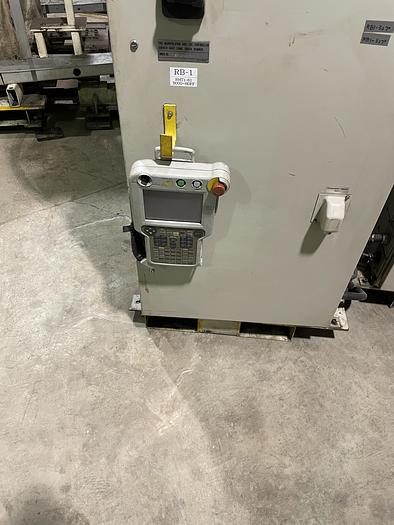

2-NX100 CONTROLLERS
TIP CLEANERS
FOB TRUCK IMLAY CITY, MI 48444
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
RAB INDUSTRIES, INC
Specifications:
Manufacturer YASKAWA MOTOMAN
Model YASKAWA MOTOMAN EA1400N
Year 2008
Condition Used
Serial Number S7K852-1-1
Stock Number 104261
Payload 3.00 kg, H-Reach 1390 mm
