YANG ML55A CNC SLANT BED 3 AXIS LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA $10,500.00
HMC Stock # 20114
Machine Serial No.: K10135
Machine Model No.: ML-55A
New Date: June 1996
Swing Over Bed: 28.35"
Distance Between Centers: 47.25"
Z Axis Travel: 43.30"
Maximum Turning Dia. x Full Length Not Over Saddle: 21.65" x 6.54"
Maximum Turning Dia. x Full Length Over Saddle: 17.72" x 43.3"
Spindle Nose (R Style): ASA A-2-11
Spindle Bore (A-2-11): 5.315"
Bar Capacity (A-2-11): 4.56"
Turning Tool Shank Size: 1.25"
Maximum Boring Bar Size: 2.00"
Turret Index Time (Station to Station): 0.5 Second
Tailstock Base Traverse: 38.54"
Tailstock Quill Traverse: 6.30"
Tailstock Quill Diameter: 4.92"
Tailstock Quill Taper: MT #5
EQUIPPED WITH:

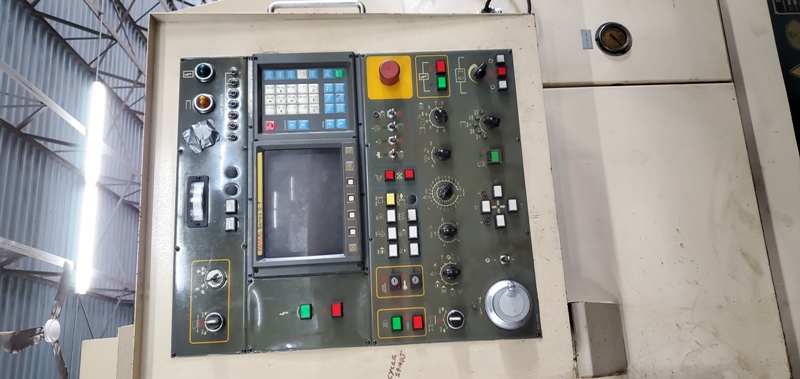

CNC Control: Fanuc O-T
15" Kitagawa 3 Jaw Hydraulic Chuck, Model B15 with 4-5/8" Thru Hole
Chip Conveyor
Tool Turret Designed for Face and Circumference Tool Holders
25 Pin RS232 Port
Spindle Load Meter
Swing Down Tool Probe
Hydraulic Tailstock with Dead Center
Built in Hydraulic Oil Cooler
Adjustable Chuck Pressure Controls
Hydraulic Speed Gear Shifting
Hardened and Ground Bed Ways in Very Good Condition
Z Axis Tool Turret Saddle has New Turcite Way Surface Installed and Scrapped
Rebuilt X Axis Ball Screw
22-26 KW (29.5-34.8 HP) Main Motor
Wired for 3 Phase, 60 Cycle, 208-240 Volts AC, 85 AMPS
Overall Size: Machine 165" LR x 86" FB x 90" High x 21,000 Lbs.
Chip Conveyor 104" LR x 21" FB x 52" High x ? Lbs.
