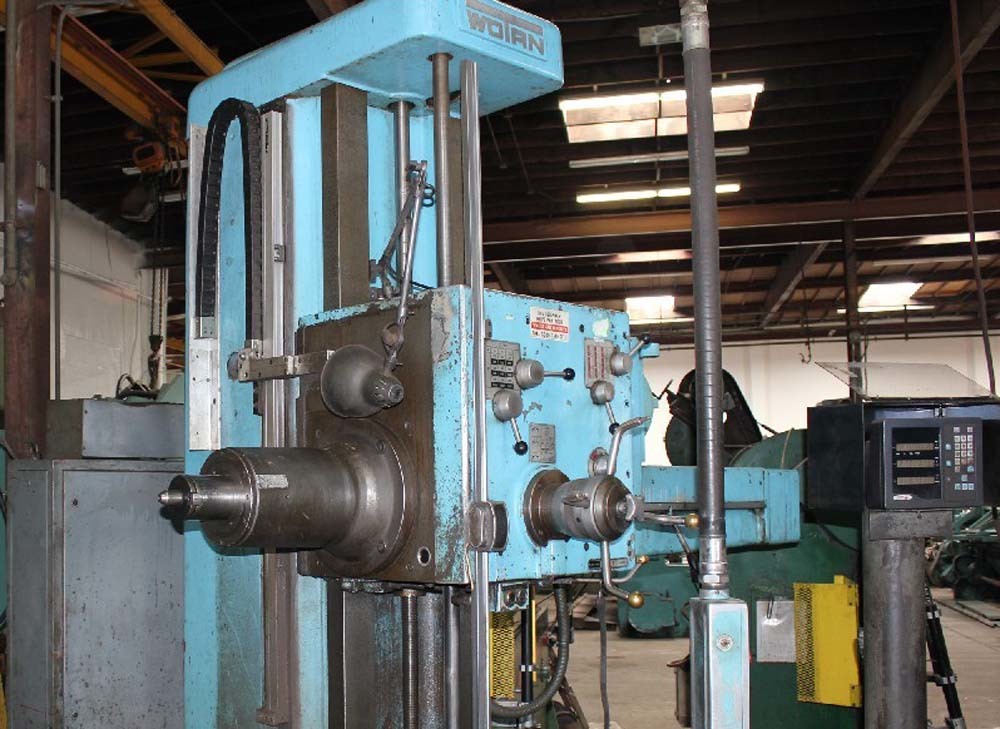

WOTAN - TABLE TYPE HORIZONTAL BORING MILL (ROTARY TABLE) | 4"

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


B-100S
52386
used
(3)
$0.00

Description

'

Basic Information

Model: B-100S
Manufacturer: Wotan
Serial #: 52386
Location: Huntington Park, CA
Year Built: 1966

Specifications

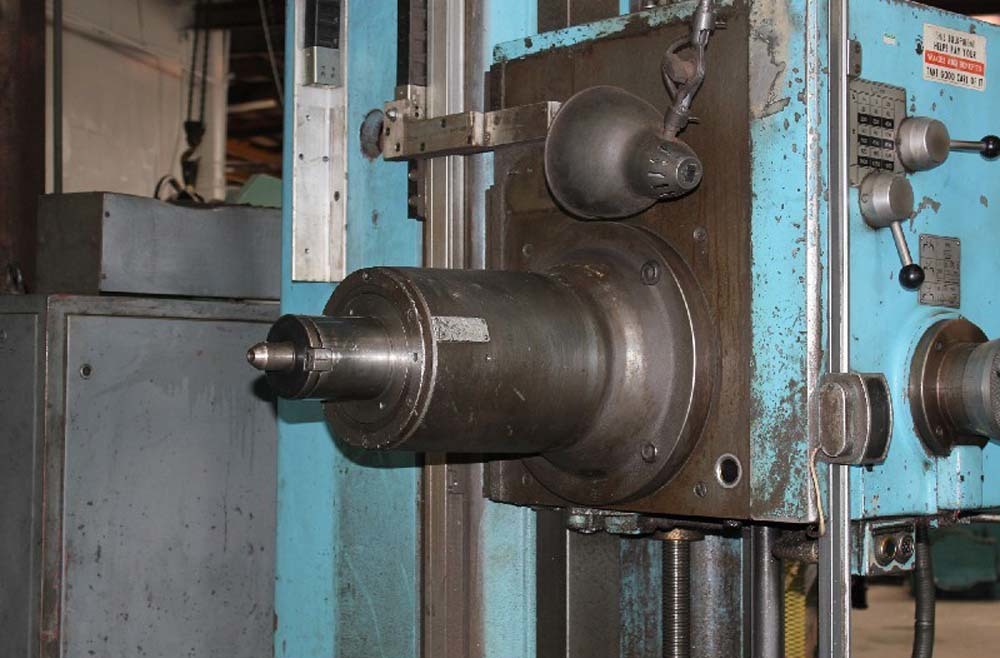

Spindle Diameter: 4"
Spindle Nose: #50
Spindle Speeds (21): 14 - 1,600 RPM

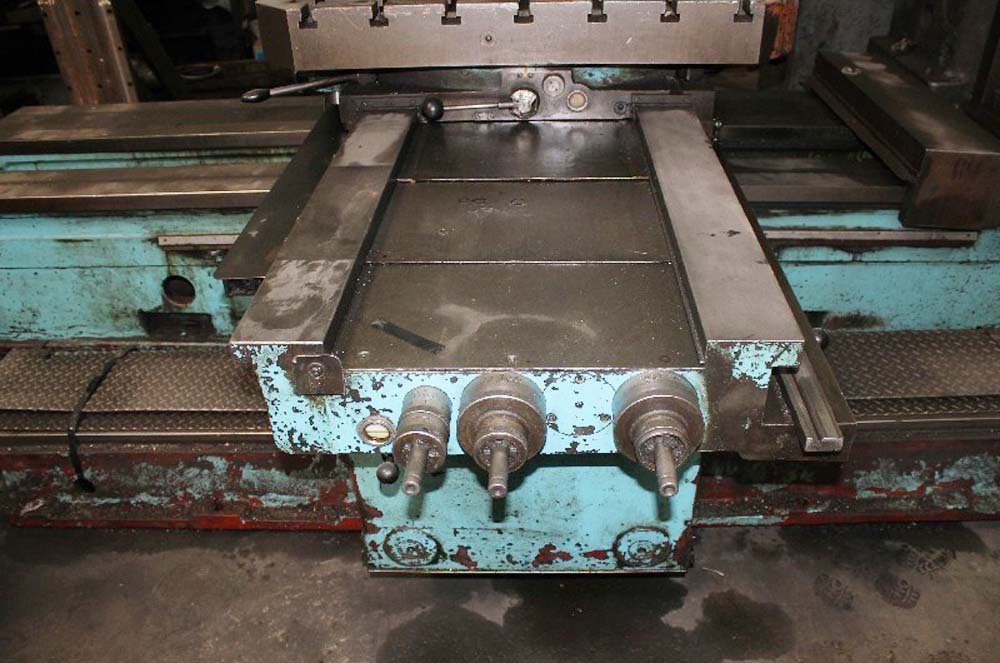

Table Size (Rotary): 43" x 50"
Longitudinal Table Travel: 83"
Cross Saddle Travel: 80"
Vertical Head Travel: 52"
Feed Range (27): 0.0013"-0.500"
Spindle Travel: 28"
Dimensions (L x W x H): 188" x 144" x 124"
Weight: 32,500 LBS

Equipped with

  • Power Draw Bar

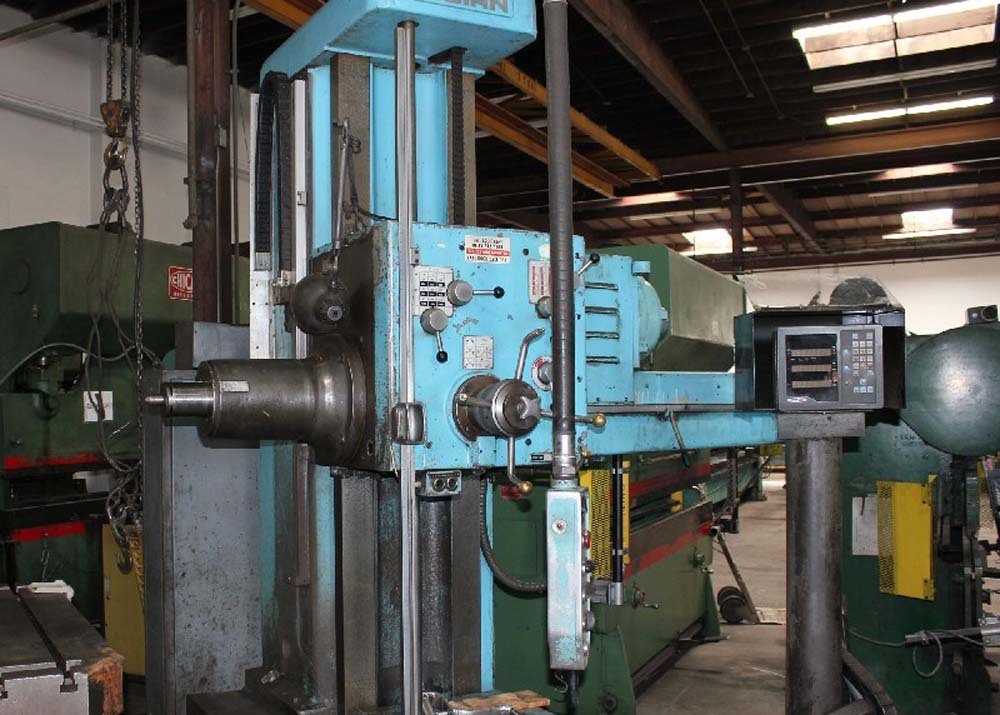

  • Fagor 3 Axis Digital Readout System
  • Power Rotary Table
  • Spindle Support
  • Floor Type Out Riggers

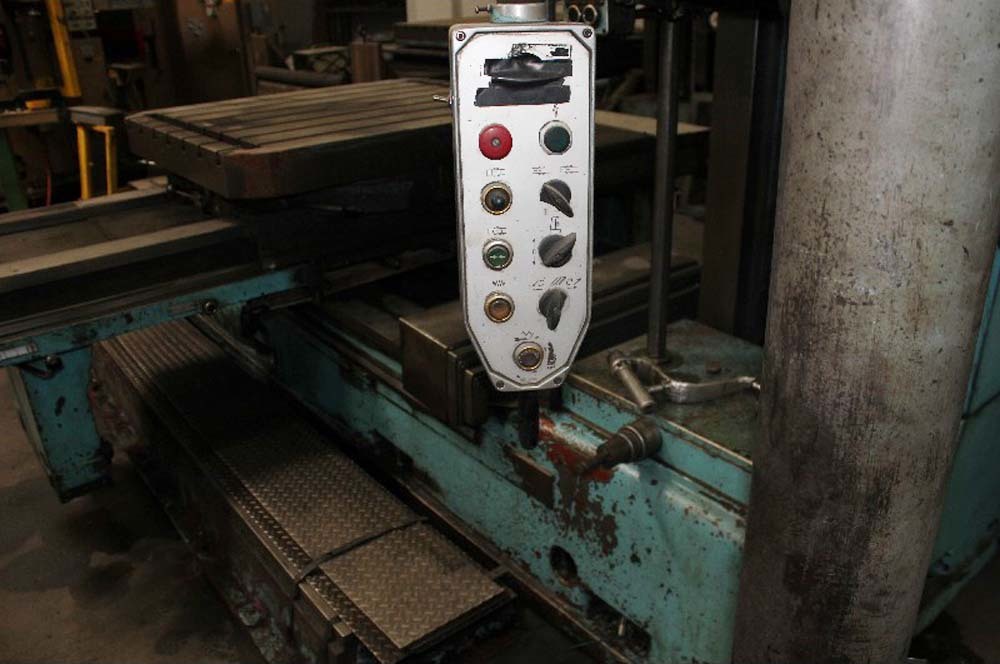

  • Pendant Control
  • Coolant System
  • Horsepower: 15
'
