Specifications: Manufactured by San Shing Machinery Industrial Ltd. In Taiwan.

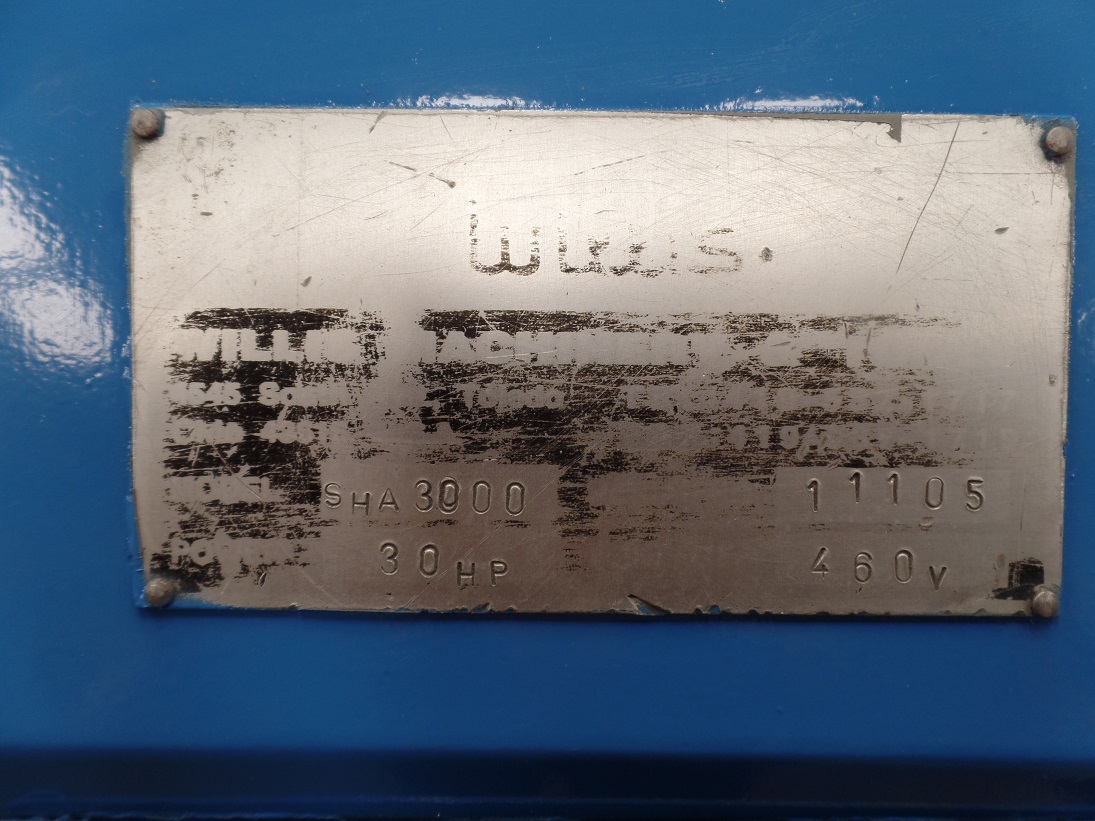

Model SHA 3000
Serial number 11105
Swing over bed 36 in
Swing over cross slide 24 in
Distance between center 120 in
Bed width 23 in
Chuck 24 in Bison 4-jaw Front and Rear
Spindle nose A-2-15

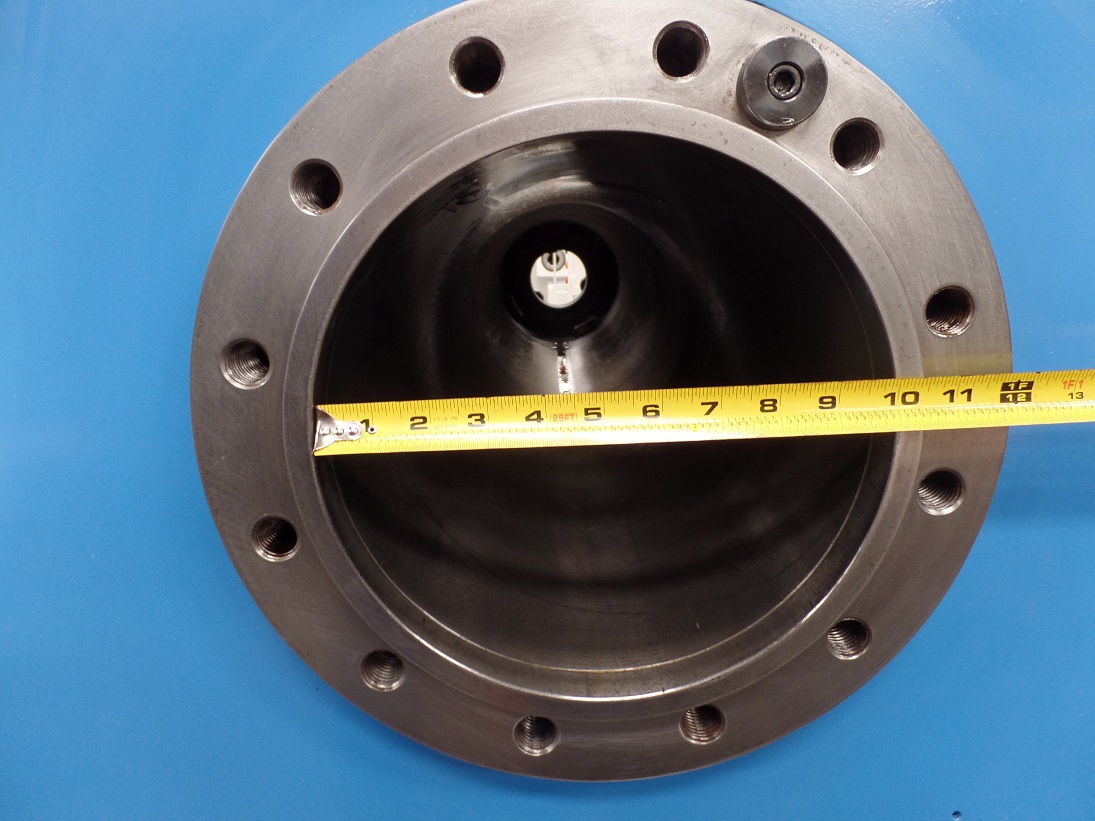

Spindle bore 10 in
Spindle step 12 steps

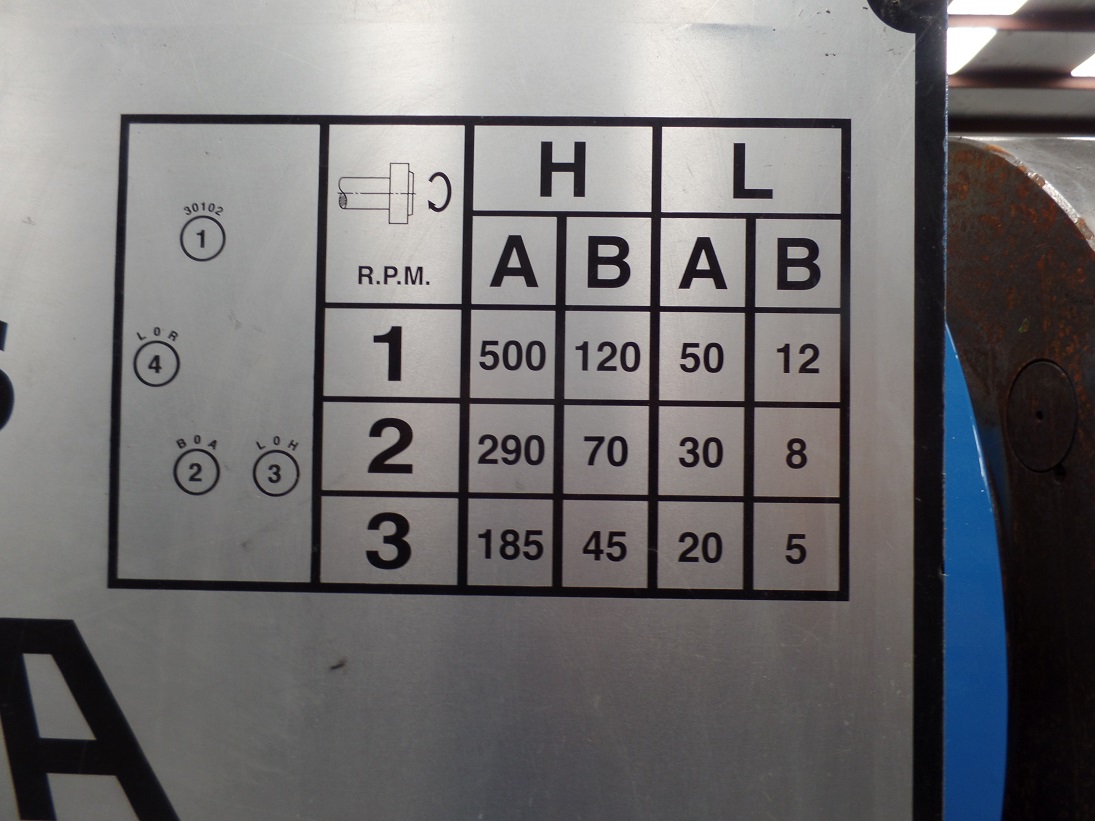

Spindle speed 5-500 rpm
Main spindle motor 30 HP
Cross slide travel 20 in
Compound rest travel 10.5 in
Pitch of lead screw (TPI)
Taper attachment None at present
Tailstock quill traverse 8 in
Tailstock quill diameter 4.25 in
Steady rest diameter 12 in roller rest
Machine weight 15,000 apx.
Dimensions 84 in H x 19 ft W x 60 in L
Price: $ 64,500. FOB Houston, TX. Subject to prior sale
(Price includes a NEW taper attachment presently on order from the factory).
