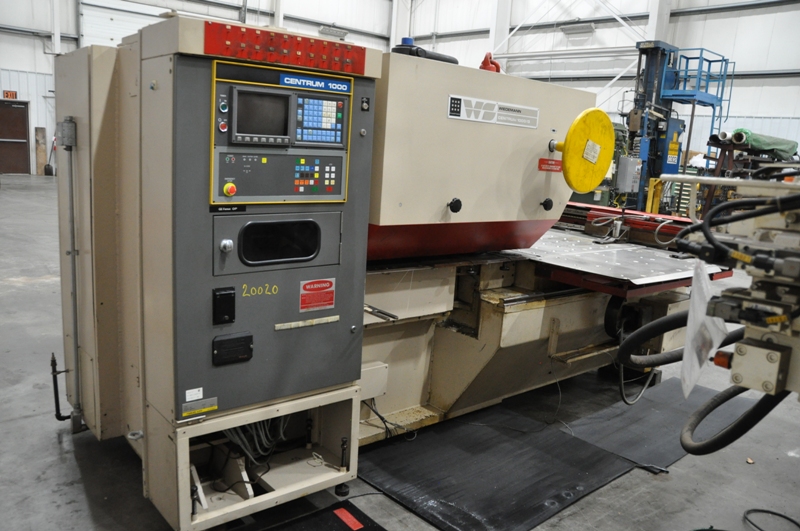

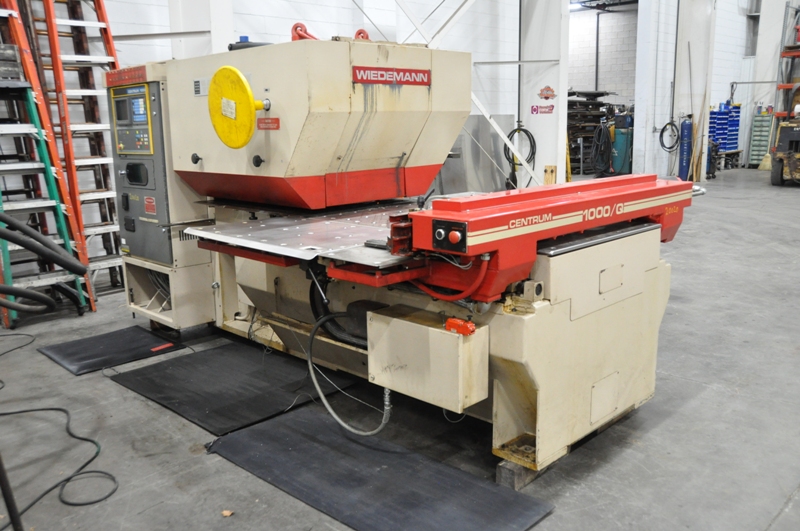

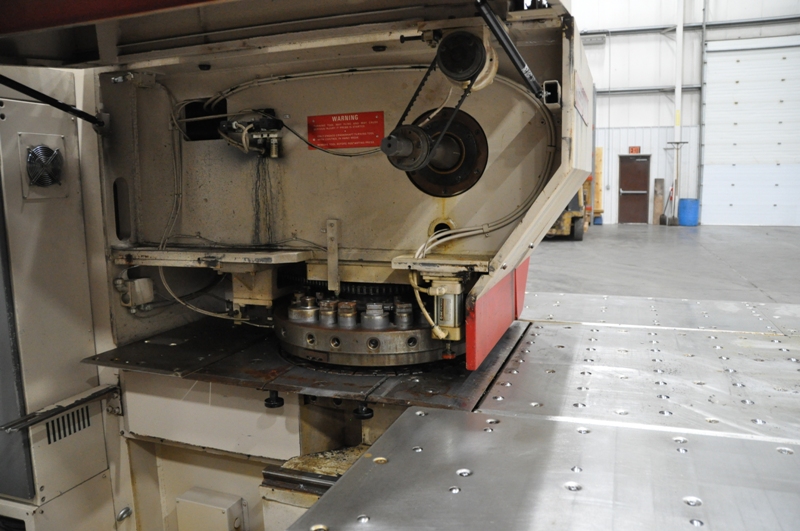

WIEDEMANN CNC TURRET PUNCH

PRICE: Loaded on Truck, Our Warehouse, York, PA     $7,500.00

HMC Stock # 20020

Machine Serial No.: 916

Machine Model No.: Centrum 1000/Q
New Date: 1988

Punching Capacity: 3" Dia. in .125" Mild Steel
Throat Depth: 41.3"
Table Travel, X and Y Axis: 40.5"

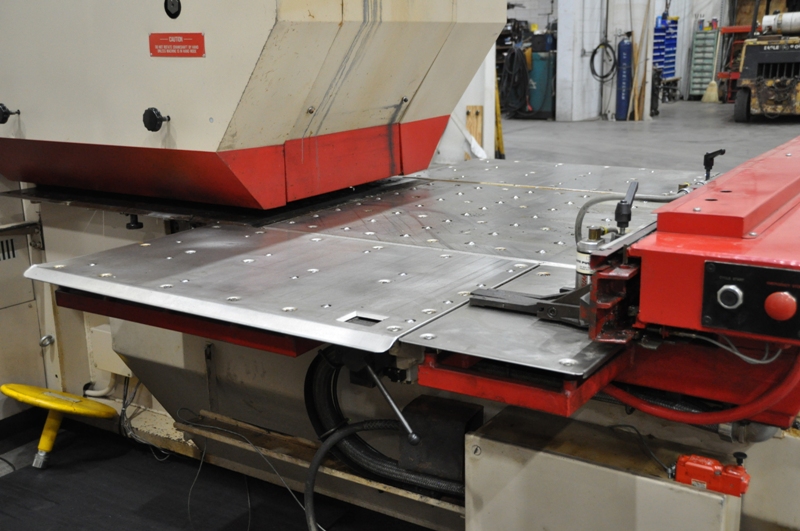

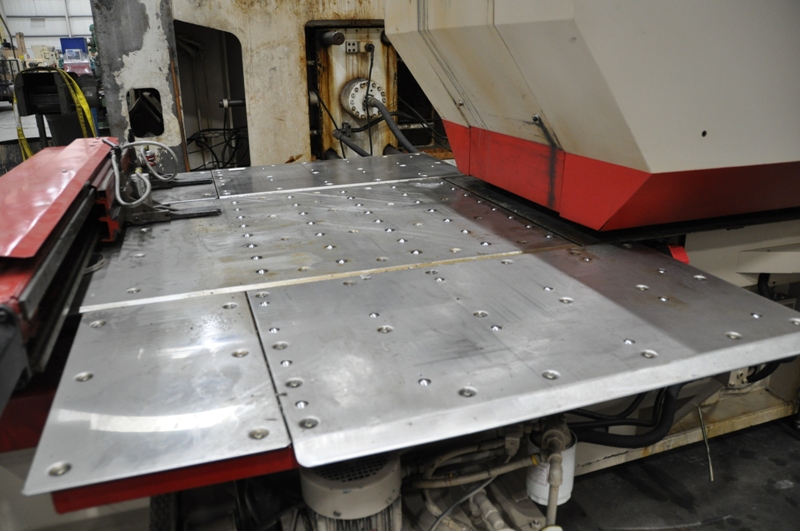

Table Sheet Capacity Before Repositioning: 40" x 40"
Table Sheet Capacity with Repositioning: 40" x 80"
Maximum Sheet Weight: 110 Lbs.
Ram Stroke: 1.2"
Clearance - Stripper to Die: .875"

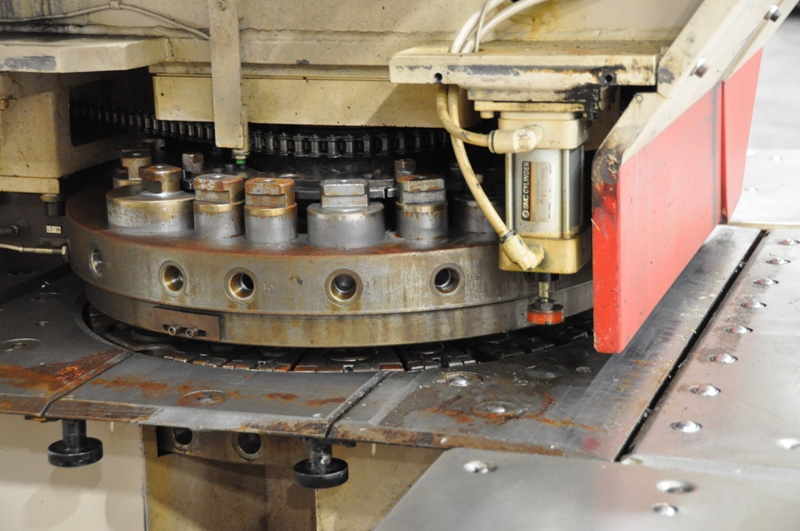

Turret Capacity: 20 Stations
Tooling Style: Wiedemann Style 112 or 114
Rated at 16.5 Tons Punching
Table Height: 38"
Roller Transfer Balls in Table
Maximum Table Traverse Speed X and Y Axis: 2000 IPM
Hit Rates: Continuous Nibbling Modes .2" Moves 350 SPM

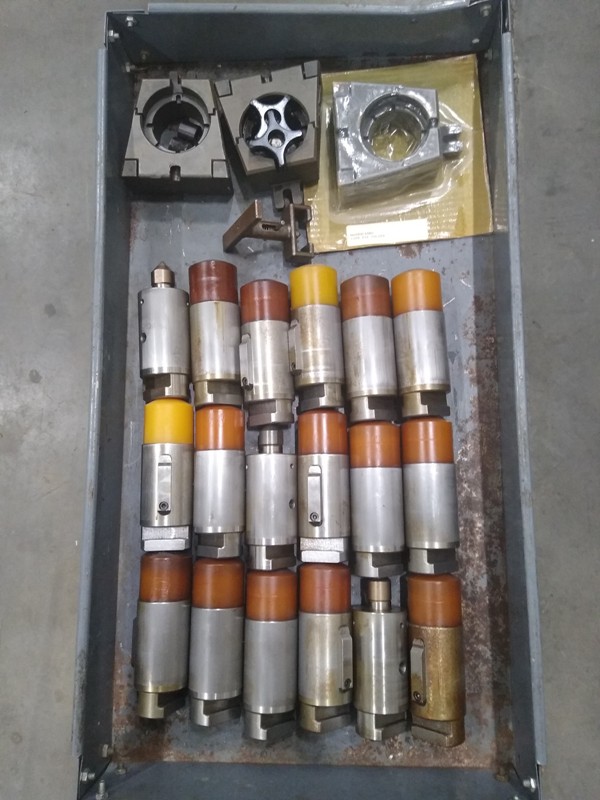

Full Complement of Machine Turret Tooling Punch Holders Plus Extras

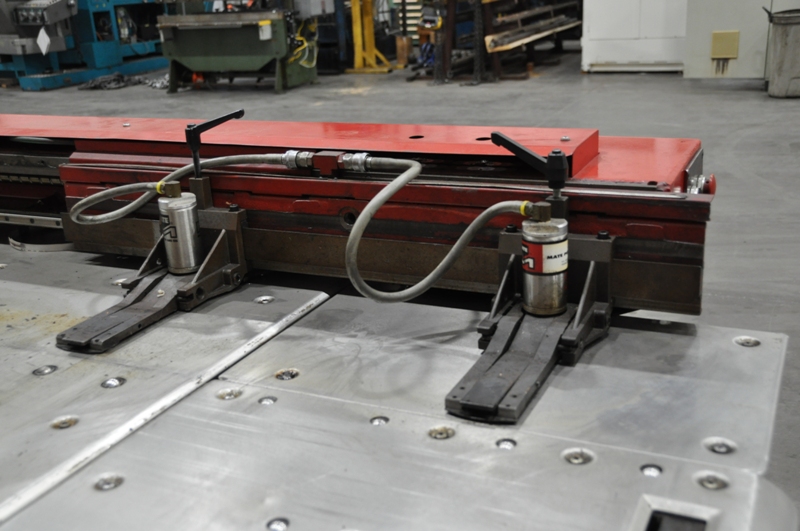

(2) Air Grip Repositionable Work Sheet Holders

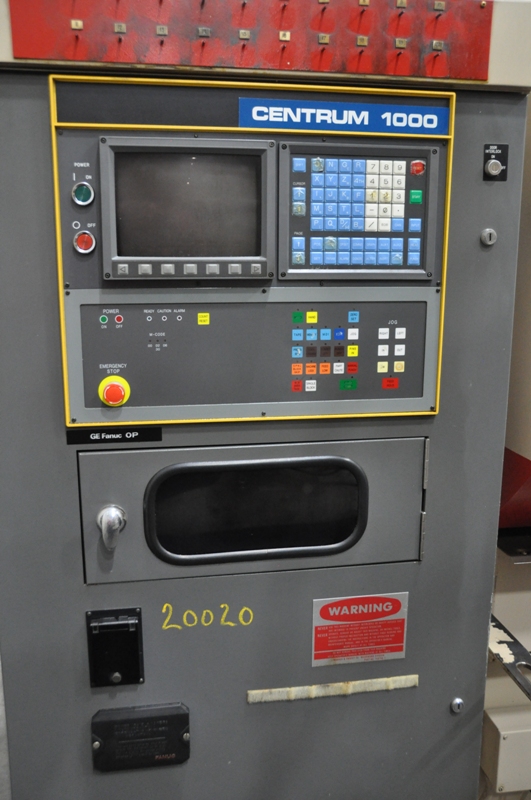

GE Fanuc OP CNC Control with RS232 and Tape Reader
(3) Wired Floor Mats
(1) Electric Foot Pedal
Traverse Speed Override: Provided at Controls 100% / 50%
Punching Accuracy: +/- .005"
Turret Rotation: Bi-Directional

Intermittent Mode:
Axis Move: Hits per Min.:
1" 200
2" 170
3" 155
6" 130
10" 100

No. of Stations: Station Symbol: Station Range:
12 A-B Up to 1" Dia.
6 C-D Over 1" to 2" Dia.
2 E-F Over 2" to 3" Dia.

Note: Air Supply Required for Index Pin Cylinders, Work Holders and Automatic Lubrication Only. Clutch/Brake are Hydraulically Activated.

Air Supply Requirements: 3.5 CFM at 70 PSI
Press Drive Motor: 5 HP
Electrical Power Requirements: 15 KVA (Peak), 20 Amps at 460 Volts
Presently Wired for 3 Phase, 60 Hz, 460 Volts

Overall Size: 88" FB x 142" LR x 75" High on 4" Blocks x 13,500 Lbs.
