Warner & Swasey 3-A M-1950 Lot 132A Lever Head Saddle Type Turret Lathe
Not under power - in storage. Still a bargain if you need one of these old work horse lathes!
Please wait for your shipping quote and invoice before sending payment.
EZ Systems Machine Reference Number: EZ22426
Machine Location: Vancouver, WA 98661
(***Need to confirm below specs before purchase***)

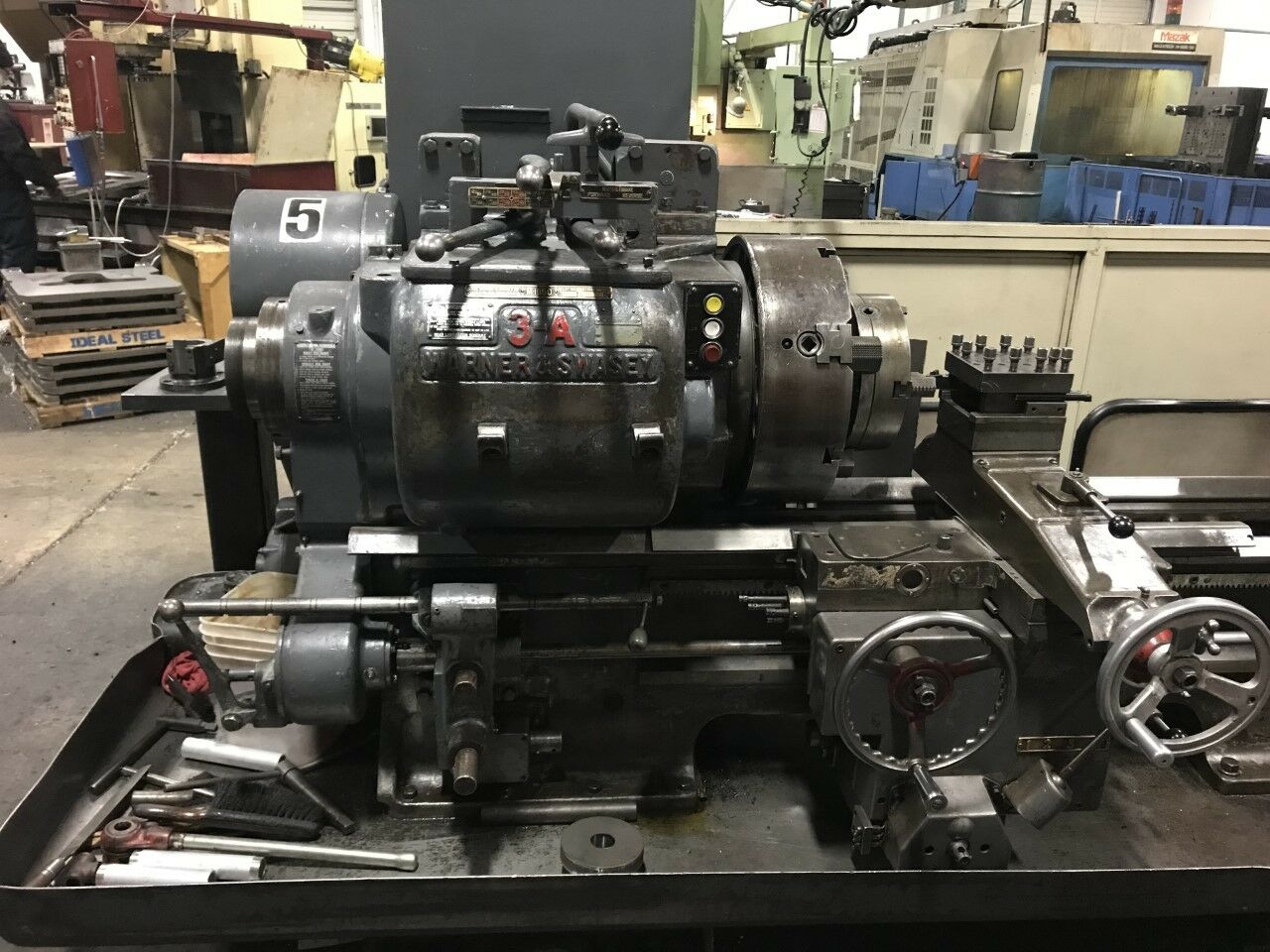

Warner & Swasey 3-A M-1950 Lever Head Saddle TypeTurret Lathe

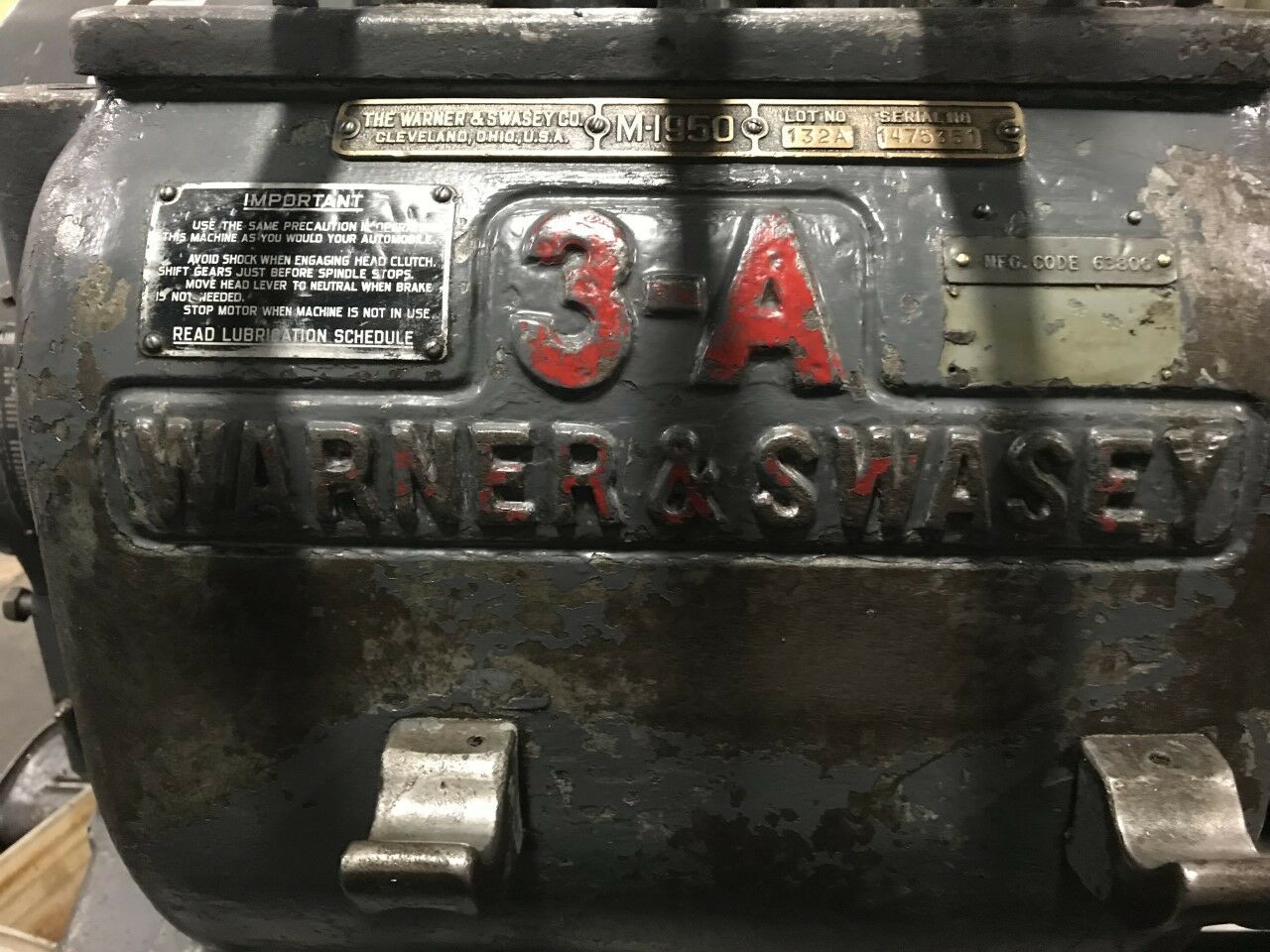

Model: M1950 Lot 132A (see pic)
Swing Over Bed Ways 23.5 in
Center Distance 40 in
Swing Over Cross Slide Carriage 18 in
Speeds (Spindle) 12 To 628 Rpms
Spindle Hole 4.75 in
Spindle Nose A-11
Chuck Size 20" 4 Jaw New
Feeds Long. .005 To .167 I.P.R.
Main Motor 15 Hp
Flange Holders Short 4
Slide Tool Holders 2
Weight 15,000 Lbs.
Floor Space 144 in L. X 83 in W.
Machine Height 64 in
Rapid Traverse Front & Rear Aprons Yes
Coolant Yes
Tool Post 4 Way On Front Yes
Fixed Rear Turret Yes
It doesnt have a lead screw so it does not make threads.
