4A WARNER & SWASEY MODEL M3550 SADDLE TYPE TURRET LATHE
#M-3550
SWING OVER WAY COVERS --------------------- 28.25"
MAX. DISTANCE FACE OF SPINDLE TO TURRET --- 80"
SPINDLE BORE ------------------------------ 9"
SPINDLE NOSE ------------------------------ A1-15
SPINDLE SPEEDS --- ( 32 ) ----------------- 20 TO 526 RPM
16 FEED RATES ---- ( CROSS ) -------------- .002 TO .077 IPM
16 FEED RATES ---- ( LONG. ) -------------- .005 TO .167 IPM

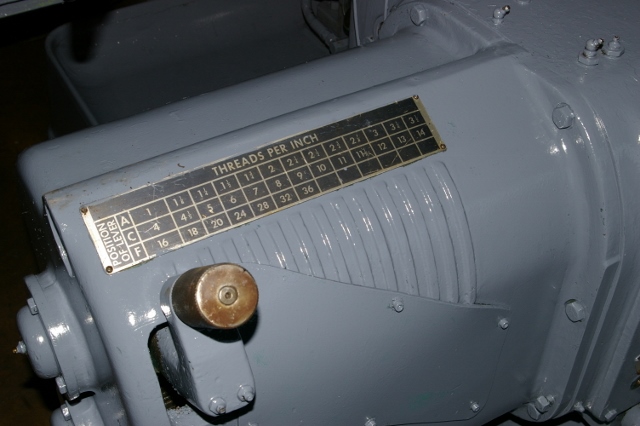

THREADING --------------------------------- 1 TO 36 TPI
CROSS SLIDE TRAVEL ------------------------ 17"
MAIN DRIVE MOTOR -------------------------- 75 HP 460/3/60
EQUIPPED WITH ---

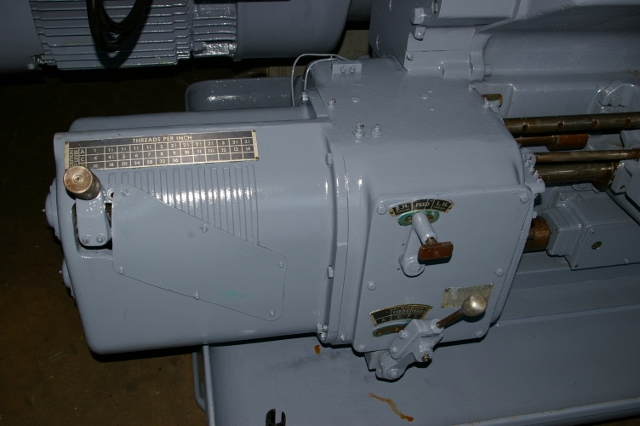

FULL LENGTH LEADSCREW THREADING ATTACHMENT
HARDENED AND GROUND BED WAYS
CROSS SLIDING TURRET
AIR OPERATED 24" STEEL 4 JAW CHUCK
4 WAY TOOL POST ON CARRIAGE
COOLANT SYSTEM
MISCELLANEOUS TURRET TOOLING
STOCK# 18155
