Helitronic Power
6156
Grinders
Tool & Cutter Grinder CNC
used
(LB)
1995
$29,500.00

Feature Video

Description

SOLD              SOLD              SOLD

Description & Specifications

WALTER POWER 400 CNC TOOL & CUTTER GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA   $29,500.00 AS IS

HMC Stock # 20012-P

Machine Serial No.: 6156

Machine Model No.: Helitronic Power 400

New Date: September 1995

GENERAL SPECIFICATIONS:

5 Axes

Maximum Tool Diameter: 7.84"
Maximum Grind Length: 12"
X-Axis Travel (Longitudinal): 15.75"
Y-Axis Travel (Vertical): 9.84"
Z-Axis Travel (Cross): 22.83"
A-Axis Travel (Rotary): 360 Degrees
A-Axis Taper: ISO 50
A-Axis RPM: 100 RPM
C-Axis Travel (Rotary): + 200 Degrees
Rotary C-Axis Rapid Traverse: 120 Deg/Sec
Work Head (A-Axis): 50 RPM

GRINDING SPINDLE:
Double End Grinding Spindle: 2.8"
Up to 6 Grinding Wheels for Flexibility
Maximum Grinding Wheel Diameter: 6"
Spindle Speed Range: 0 to 7200 RPM
Peak Spindle Power: 6.7 HP

SOFTWARE:
#1 Standard End Mill Package
#2 Standard Taper End Mill Package
#3 Standard Drill Package
#4 Step Drill Package
Universal

PROBING CAPABILITIES:
Heli Probe Measuring & Positioning System Automatically Measures the End of the Tool, Number of Flutes, Helix Angle or Lead & O.D. Exact Capabilities Vary According to the Specific Program and Application.

MACHINE FEATURES:
Integral Coolant Enclosure with Fluorescent Work Light
Operator Access Door
Service Access Door
4000 BTU Air Conditioner
(3) Programmable Coolant Valves per Grinding Spindle End-6 Total
Flexible Coolant Lines from Manifold Block
Machine Drip Pan.
Standard Coolant Tank

ELECTRICS:
Wired 3 Phase, 60 Hz, 460 Volts ONLY
Total Power Required: 35 KVA
Control Voltage: 24 VDC

COMPRESSED AIR:
Machine Needs a Minimum of 80 PSI @ 2 SCFM Air Supply (Clean & Dry)

EQUIPPED WITH:
Setup Disc
Tailstock
Automatic Steady Rest
Renishaw Probe Parts
(5) Misc. Belts
Spindle Pulley
(1) Electrical Foot Pedal
Assorted OEM Operation, Programming, Schematics Manuals
Coolant Pump Bolted to Main Machine Base - 1/2 HP, 230/460 Volt Pump
(9) Assorted Wheel Hubs
Hydraulic Steady Rest with External Hydraulic Unit
Overall Machine Size: 78" LR x 94" FB x 85" H x 7,500 Lbs.

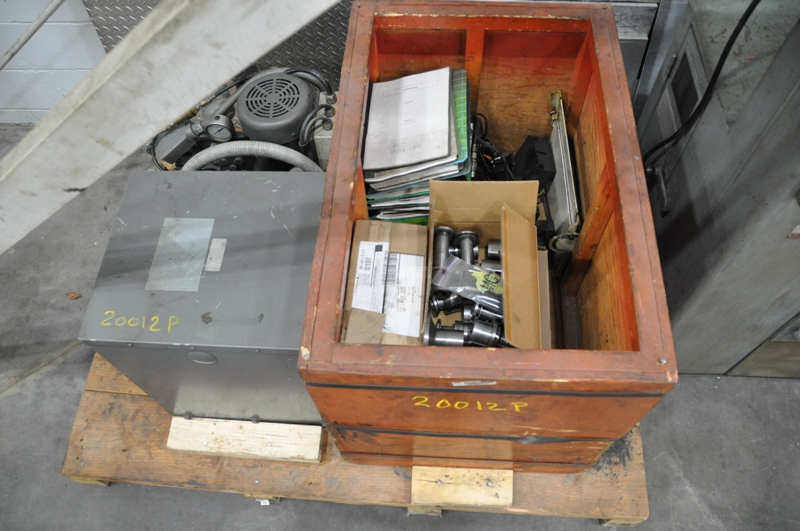

Skid of Accessories: 48" x 60" x 32" High x ? Lbs.
Coolant Sump and Drip Pan (packaged): 63" x 54" x 21" High x ? Lbs.

TEST RUN REPORT:
We think the machine has been upgraded at some point, Drives have fiber optic cables. It still has the old HMC400 Control . The battery on programable controller is dead. Machine will not finish boot-up group1 #434 alarm, interruption in the main=>plc data connection. New battery needed is SB9758T. Reloading the PLC will be required after Battery change. 2-25-20
