Description & Specifications

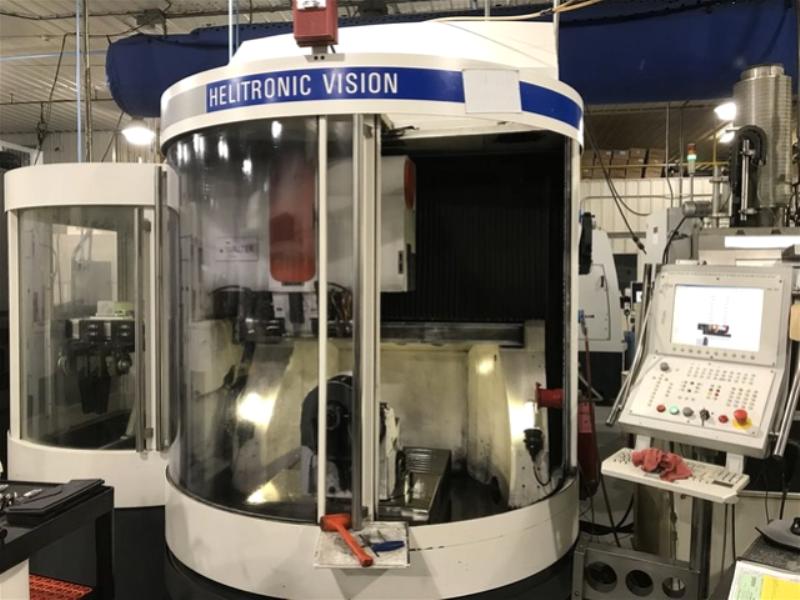

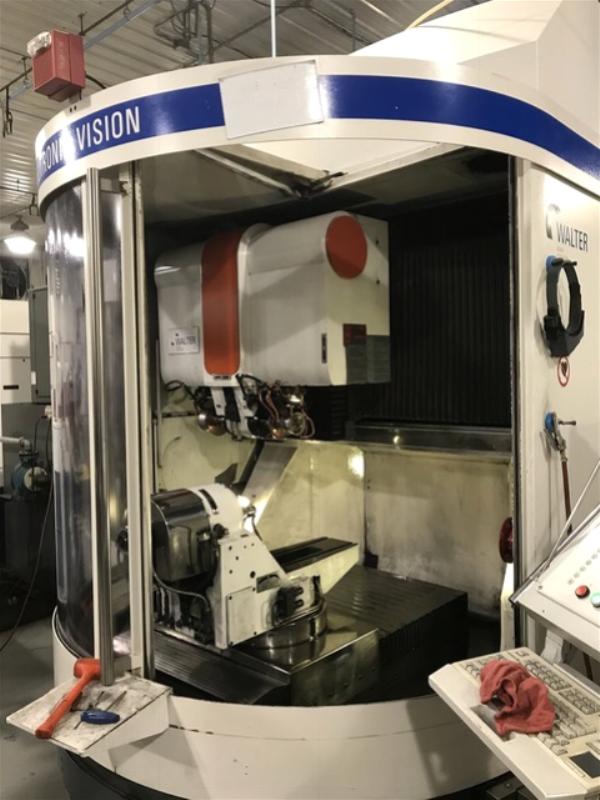

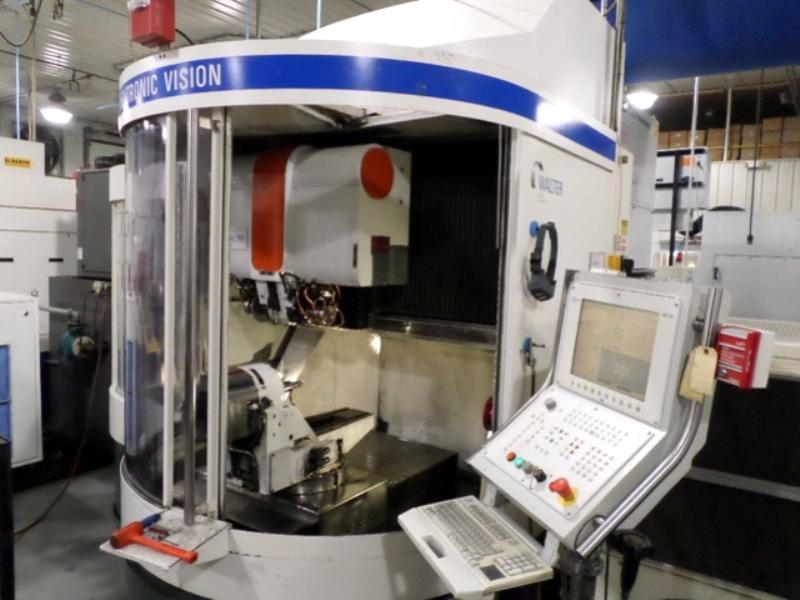

WALTER CNC TOOL & CUTTER GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA    $149,500.00

HMC Stock #19100-P

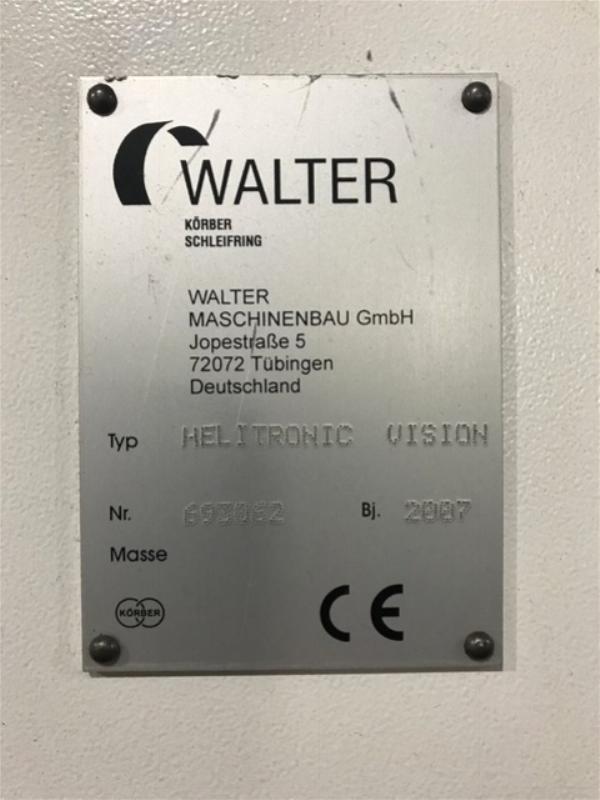

Machine Serial No.: 693062

Machine Model No.: Vision

New Date: 2007

CATALOGUE SPECIFICATIONS:
Control: HMC 600
Tool Studio Software Version: 1.9.248.0

Longitudinal Traverse (X-Axis): 480 mm / 18.90"
Vertical Traverse (Y-Axis): 320 mm / 12.6"
Cross Traverse (Z-Axis): 700 mm / 27.56"
Rotary Table Swiveling Range (C-Axis): +/- 200 degrees
Work Head Spindle: ISO 50
Max. Diameter of Workpiece: 320 mm / 12.6"
Max. Length of Workpiece for Peripheral Grinding: 370 mm / 14.57"
Max. Length of Workpiece for Face Grinding: 320 mm / 12.6"
Precision in Linear Resolution in Radial Resolution 0.0001 degrees : 0.0001 mm / 0.000004"
Max. Diameter Wheel: 200 mm / 7.87"
Peak Performance Grinding Spindle: 30 KW / 40 HP
Grinding Spindle Speed: 0 to 10,000 RPM
Connected Load, Approx.: 35 KW / 400 Volts / 50 Hz
Power Requirement: 45 KVA
Hours: 67,101
Color: Grey RAL 7035 / 7043
Metric Dimensions (w x d x h): 3734 x 2390 x 2301 mm x 7100 kg
English Dimensions: 147" x 99" x 92" x 16,000 Lbs.

ACCESSORIES:
Production Loader for Cylindrical Tools: 3 to 32 mm / 0.118" to 1.259"
Toolstudio 2.1 Standard and Advanced Version 1.9
Software Package 1 (Cylindrical Mills)
Software Package 2 (Tapered Mills)
Software Package 3 (Drills)
Software Package 16 (Warmup Program)
Software Package 17 (Cylindrical Grinding)
Software Heliflute & Cone (Flute Calculation Software)
Software Helidrill (Flute Calculation Software)
Automatic Fire Suppression
Smart Probe Tool Measuring
(22) Wheel Arbors
