WAGNER WAS 90R/S AUTOMATIC CIRCULAR CARBIDE SAW

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


WAS 90R/S
3091 102 036
Saws
SAWS, CIRCULAR COLD
used
3200 (LB)
1998
$0.00

Description


SPECIFICATIONS


Cutting
Range:

5/8in(15.8mm) - 2-3/4in(67mm) dia. Round solid
stock

5/8in(15.8mm) - 2-3/8in(60mm) dia. Square stock


Cut-off
length (min/max): 1.5in(38mm) / 40in(1000mm)
Blade:
11-1/4in(275mm) diameter x 1.26in(32mm) bore
Trim cut
(automatic): 3/8in(9mm) - 3-1/2in(89mm)
Cutting speeds: Infinitely
variable 115-520 fpm
Saw blade feed: Infinately variable 1-40
ipm
Rapid return: Approximately 1980 ipm
Saw motor: 14 Hp
(10.5Kw)
Electrics: 460 volt, 3 phase
Approx. Machine
dimensions: 350in long x 70in wide x 75in high
Approx. weight:
3200 lbs.

Equipped with:




  • 26
    ft.Bundle Style System is adaptable to material shapes - round,
    square or rectangular.



  • Allen
    Bradley SLC500 PLC Control



  • Variable
    frequency control for Blade speed

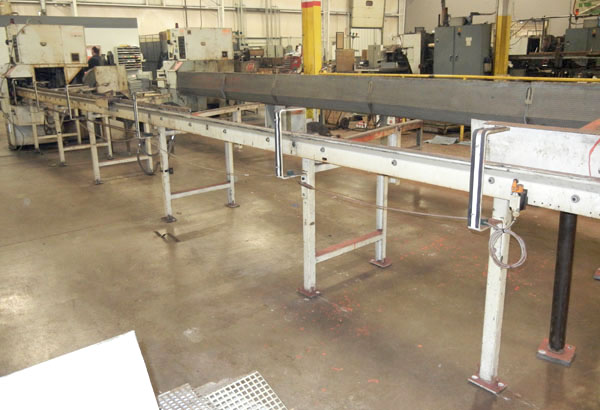

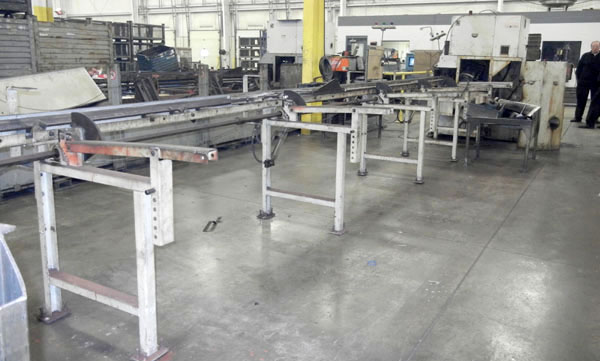

  • Bar
    Feed carriage, conveying speed is infinitely variable up to 130 feet
    per minute resulting in short idle times on long cut-offs.



  • Length
    gauge is hydraulically cushioned with fine adjustment within 0.004in



  • Remnant
    ends and trim cuts are sorted from good cuts by means of sorting
    gate at the cut-off side.



  • Unist
    Mist Lubrication System



  • Angular
    Chip conveyor
