Wabash Hydraulic 4 Post Compression Press 500 Ton x 33" x 35"

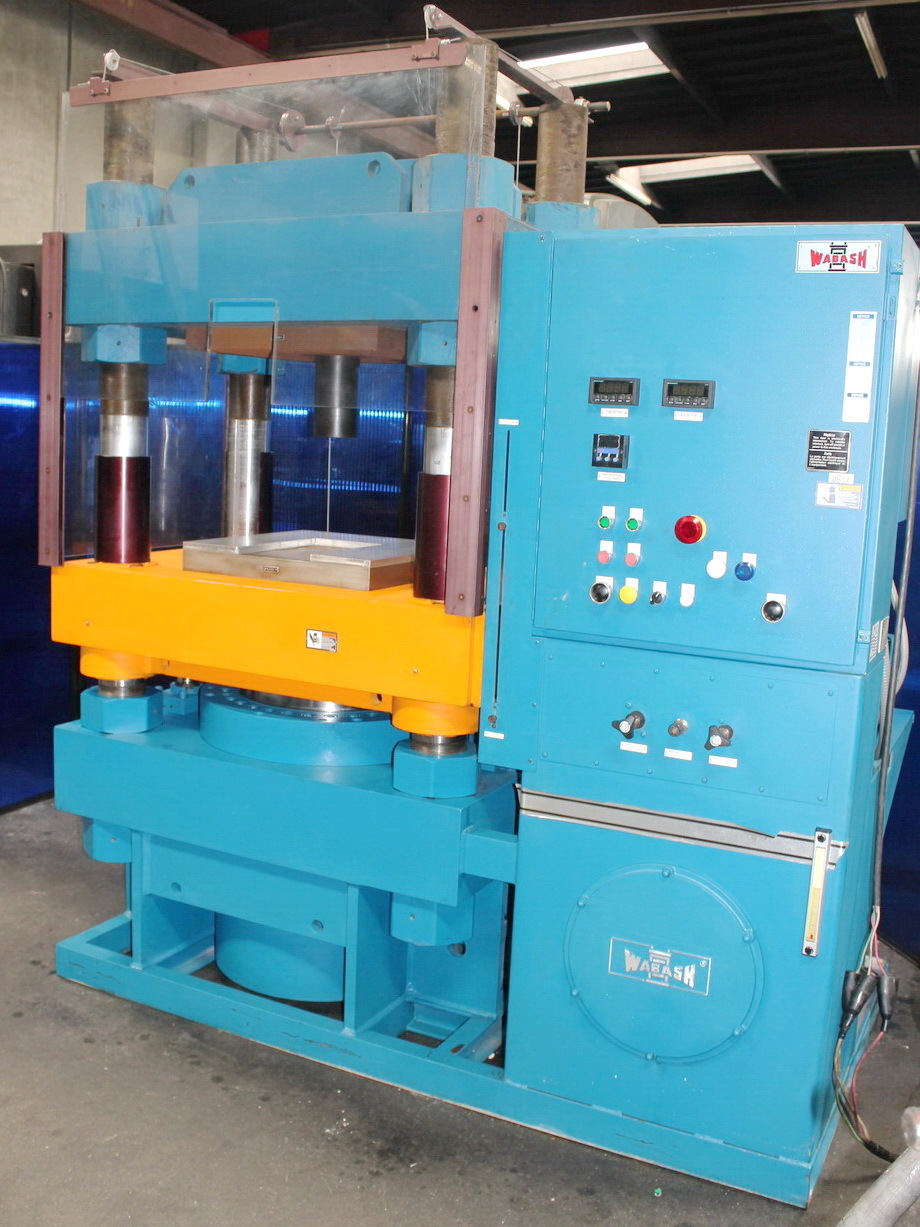

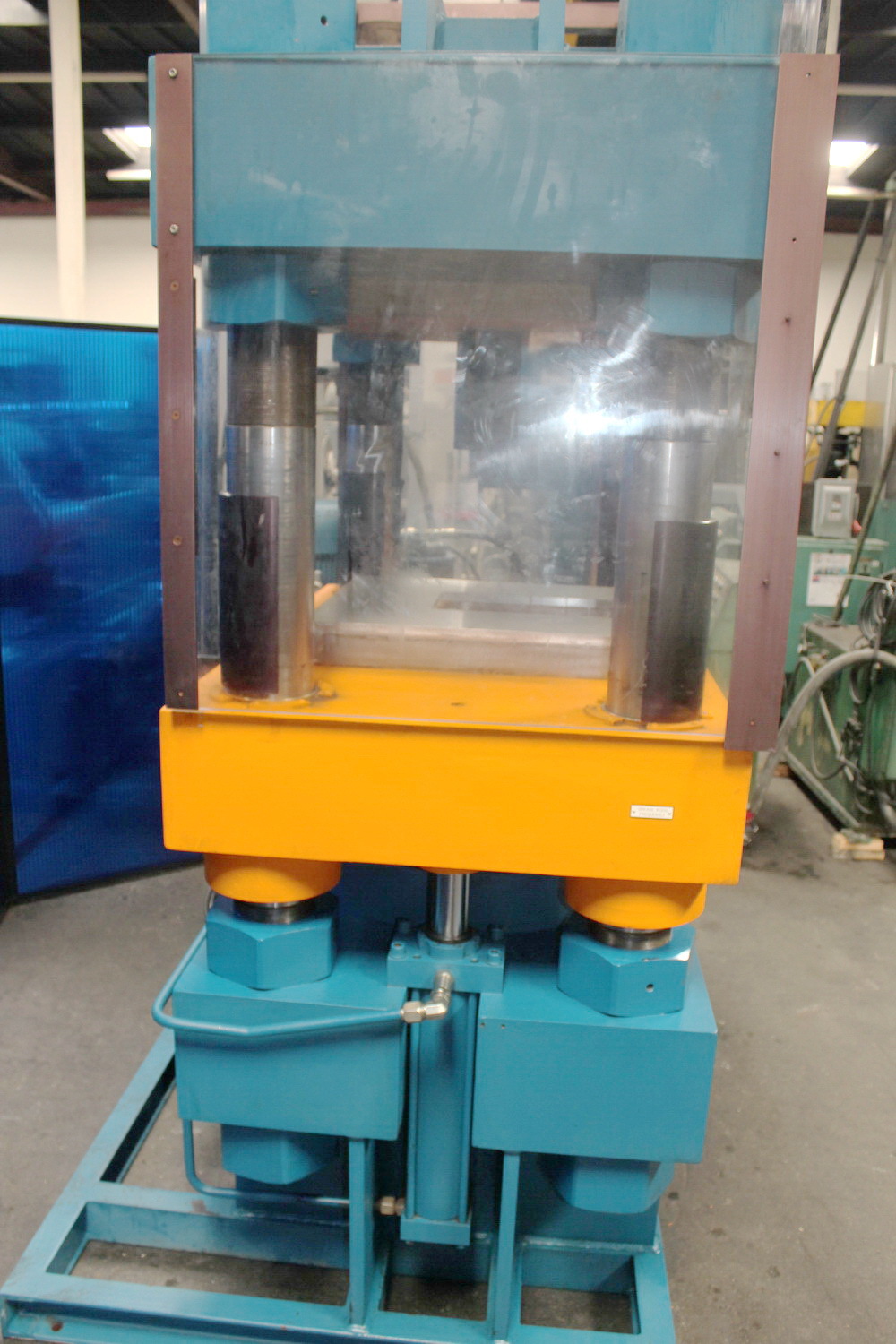

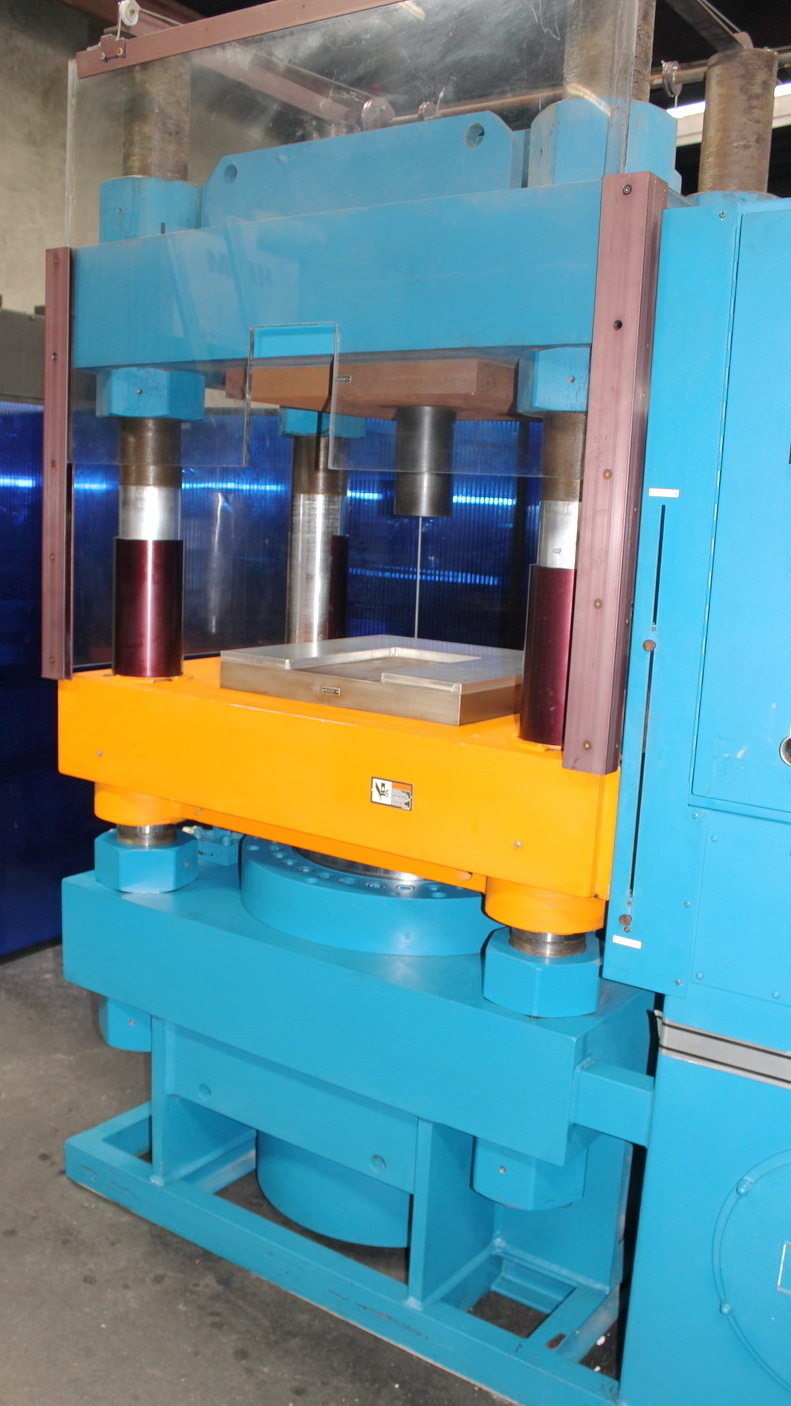

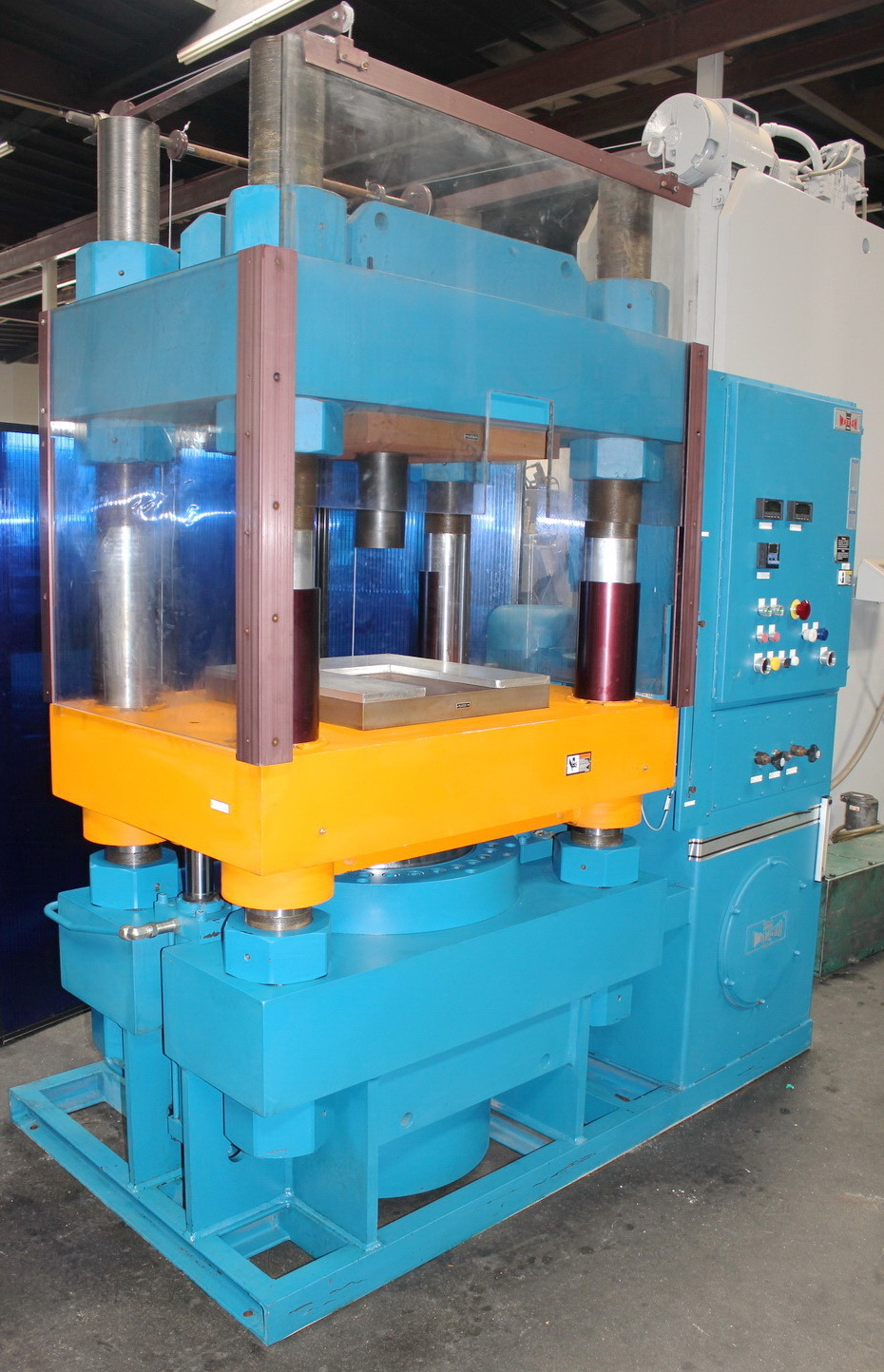

WABASH HYDRAULIC 4 POST COMPRESSION PRESS 500 TON X 33" X 35"

Add to Your File

Brand: WABASH HYDRAULIC 4 POST COMPRESSION PRESS 500 TON X 33" X 35"

Model: 500-24-LPX

Serial No. : 10516

Category:

Sub Category:

Condition: used

Weight: (2)

Year Built:

Status:

Price: $0.00

Description

Basic Information

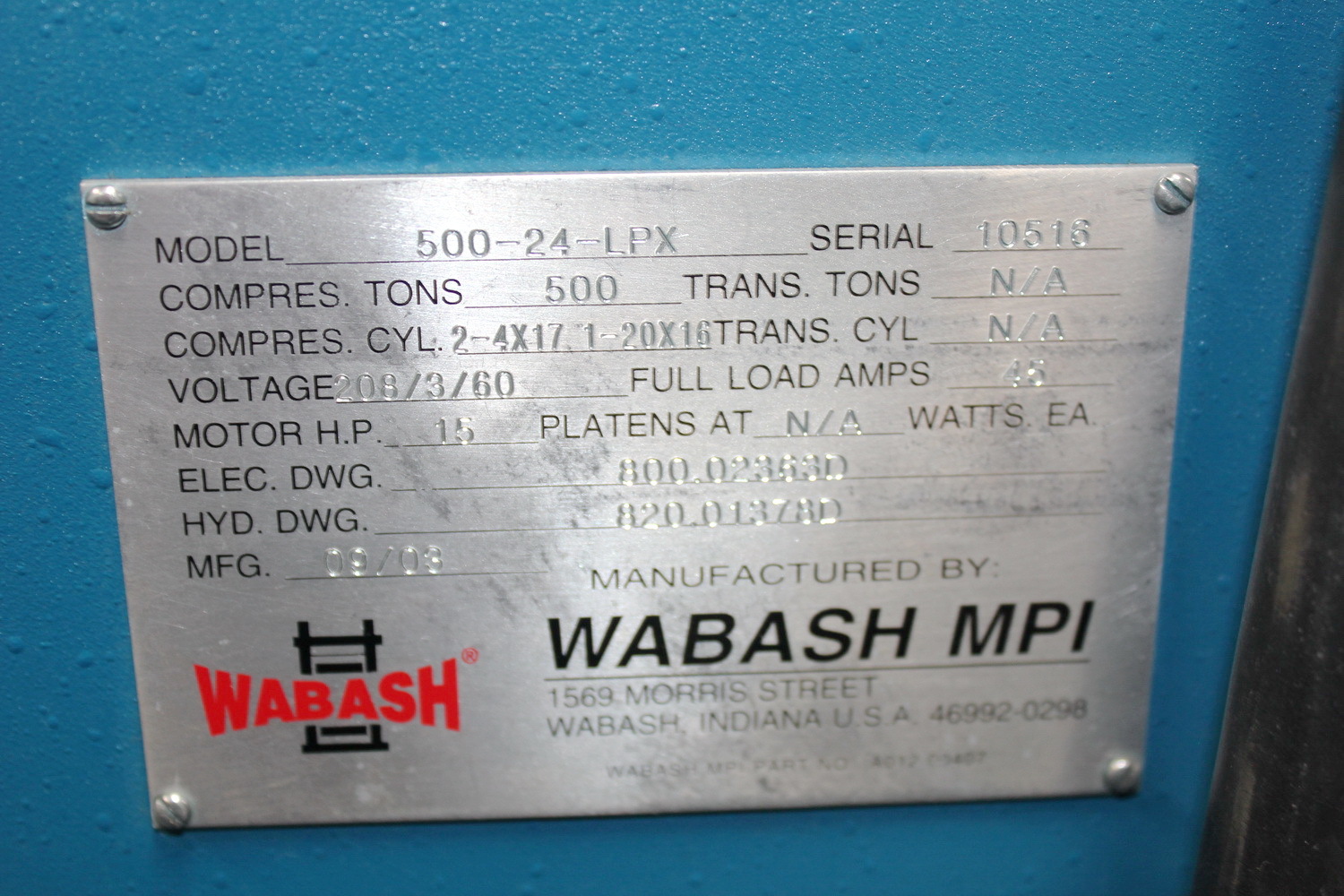

Model: 500-24-LPX
Manufacturer: Wabash
Serial #: 10516
Location: Huntington Park, CA
Year Built: 2003

Specifications

Tonnage: 500
Ram Stroke: 0"- 16"
Ram Open Height: 16"- 32"
Bed Size (L-R, F-B): 33" x 35"
Ram Size (L-R, F-B): 33" x 35"
Distance Between Tie Rod Posts (L-R, F-B): 36" x 19"

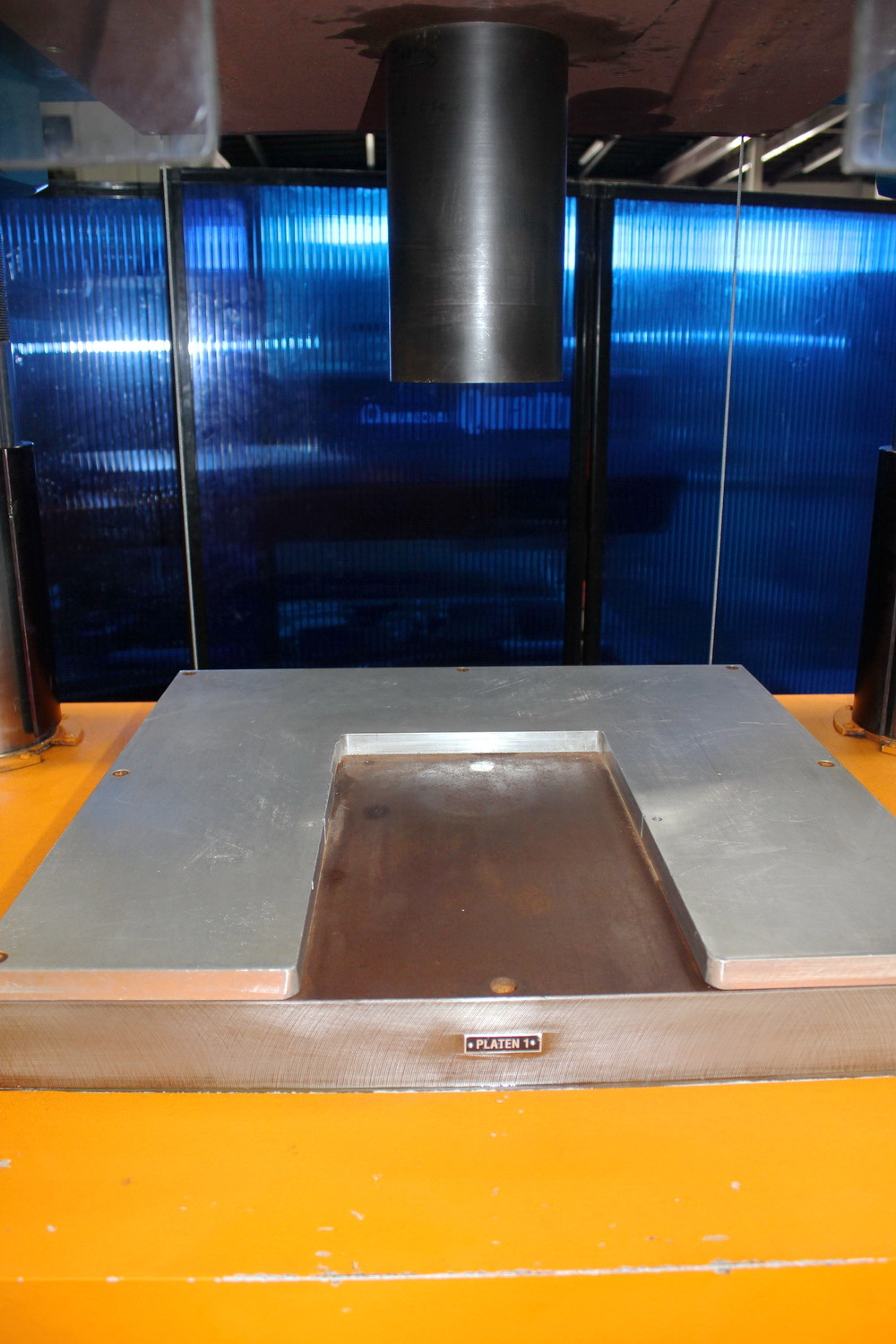

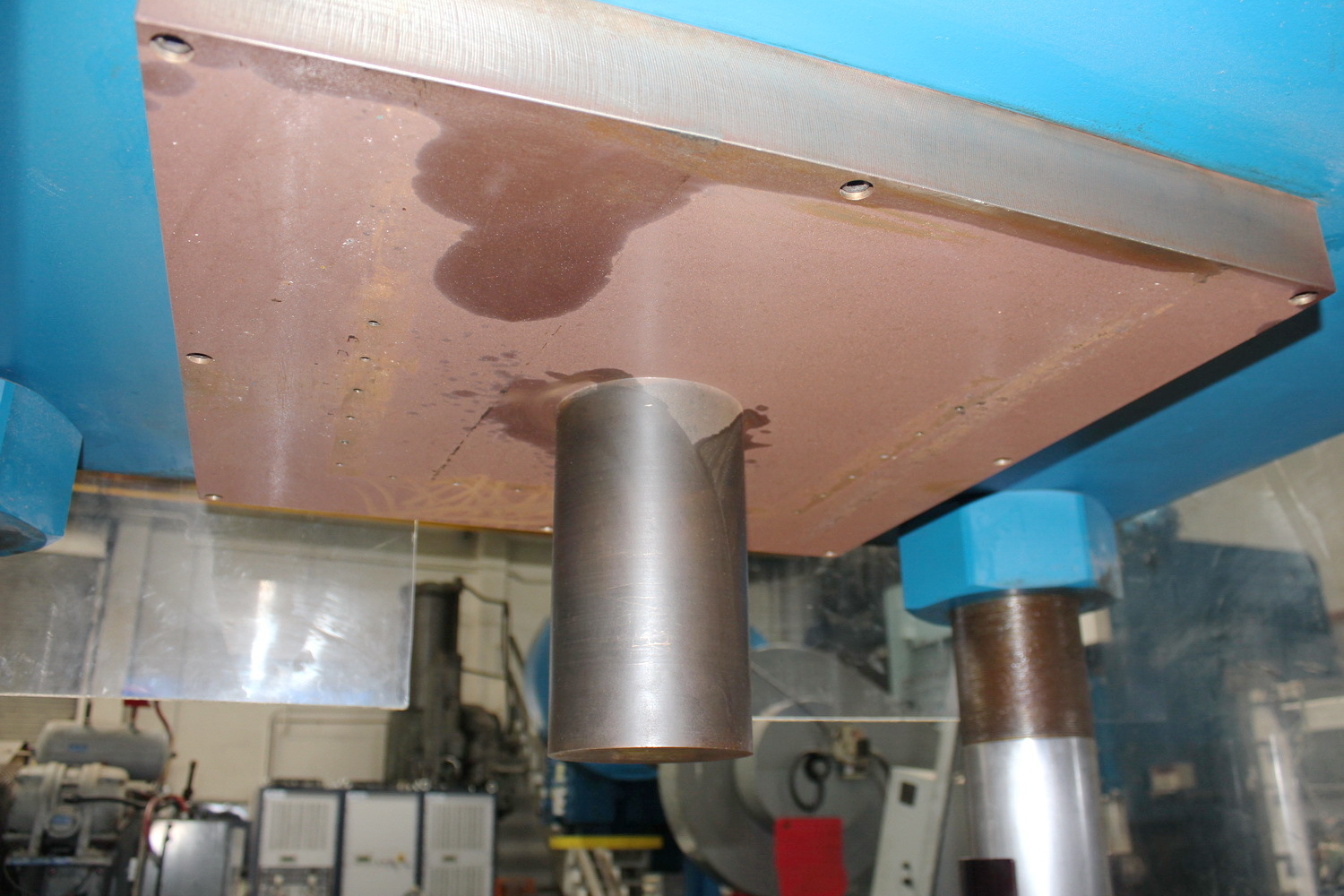

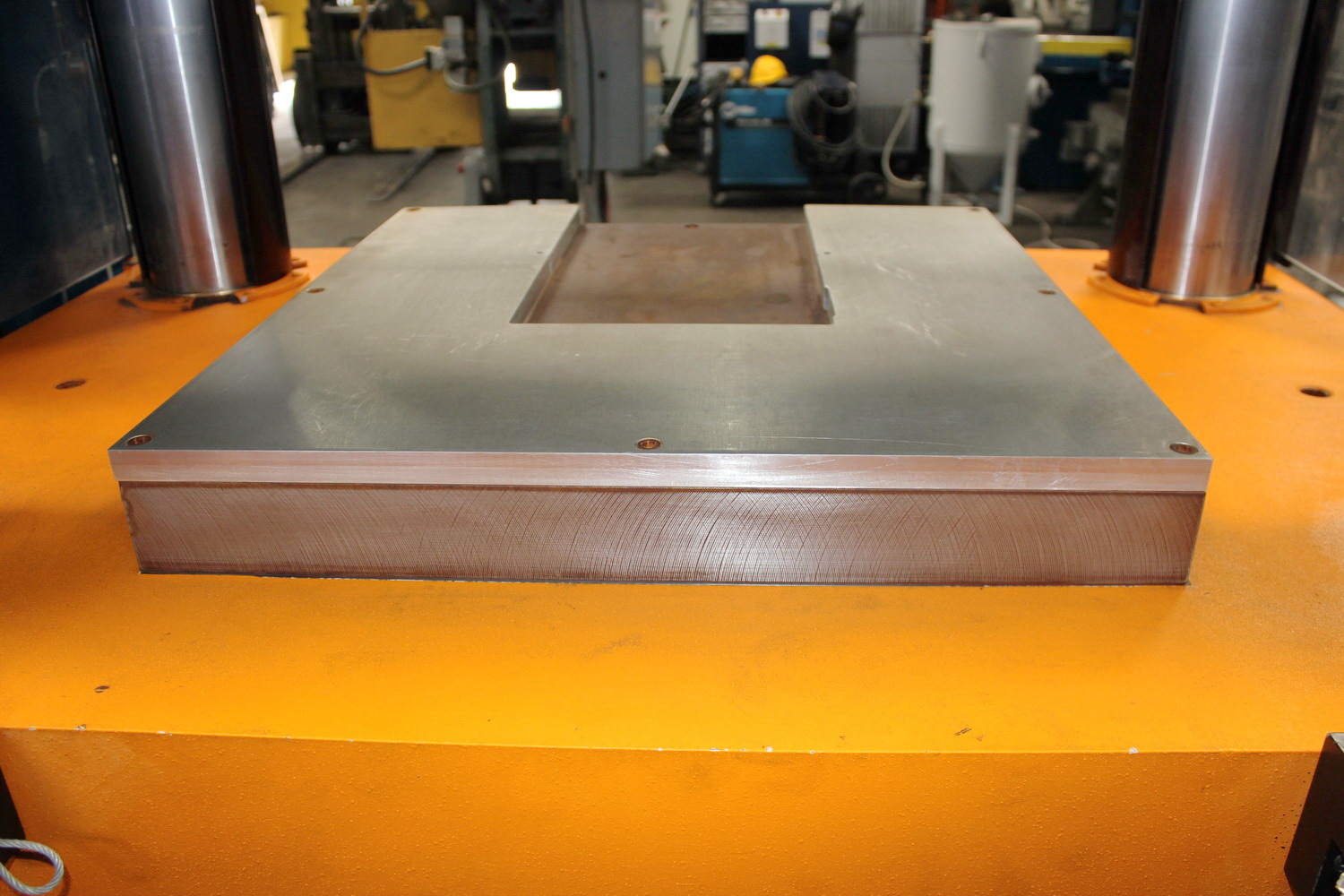

Platen Size (L-R, F-B): 24" x 24" x 2 1/2"
Ram Speeds:
Close: 60 IPM
Press: 3 IPM
Open: 80 IPM
Oil Reservoir Capacity: 90 Gallon
Post Diameter: 5 1/2"
Dimensions (L x W x H): 90" x 50" x 105"
Weight: 26,500 Lbs.

Equipped with

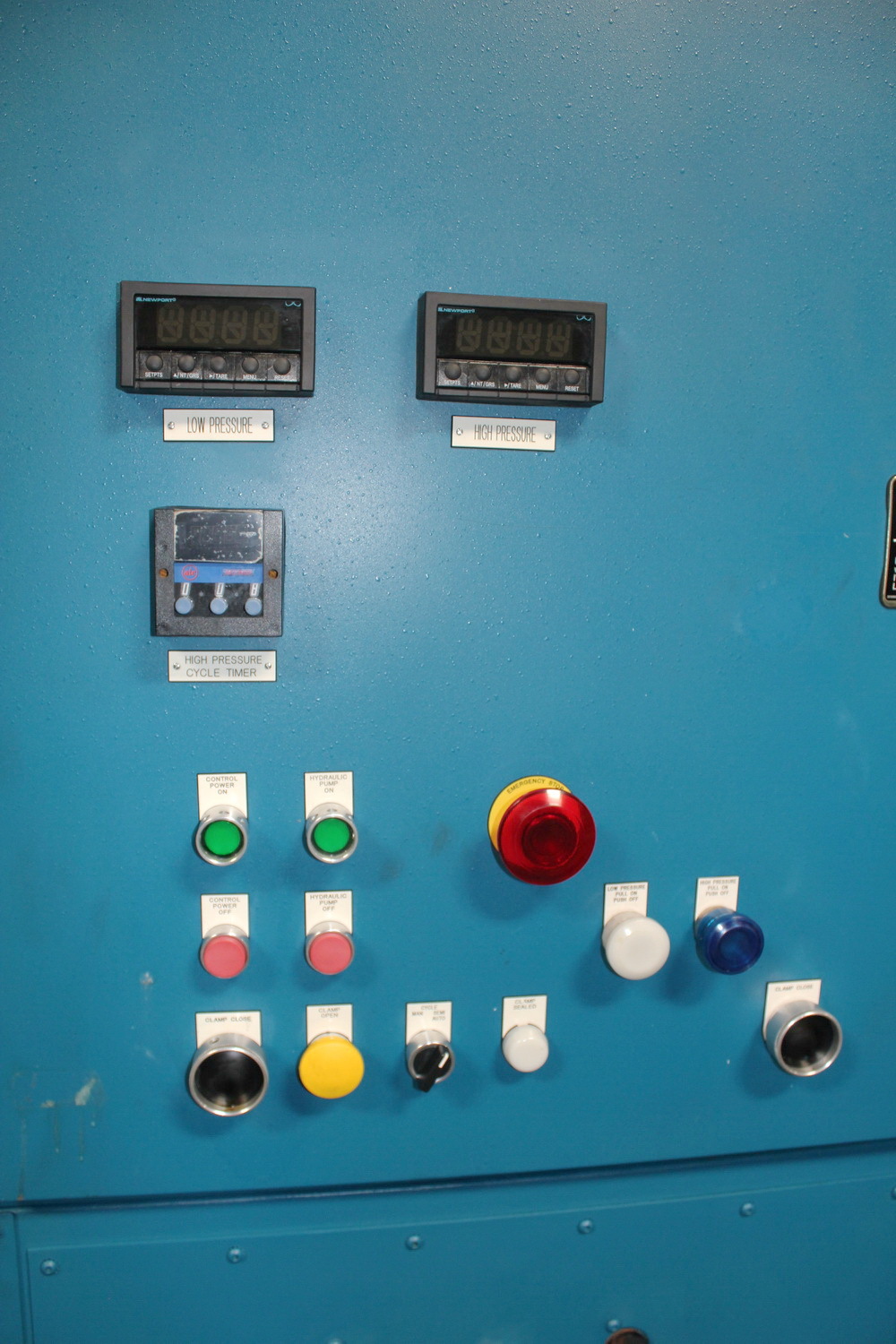

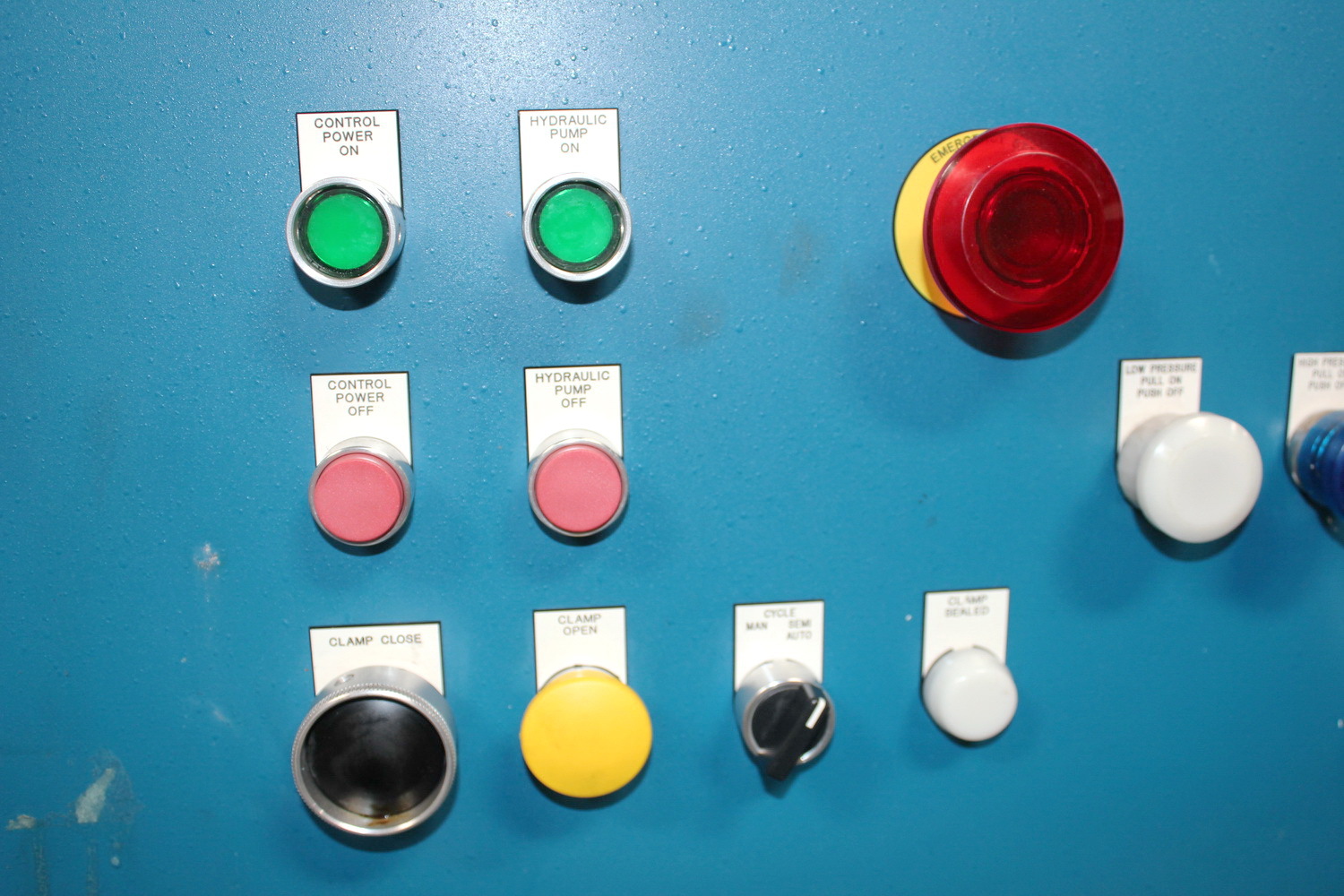

Push Button Control

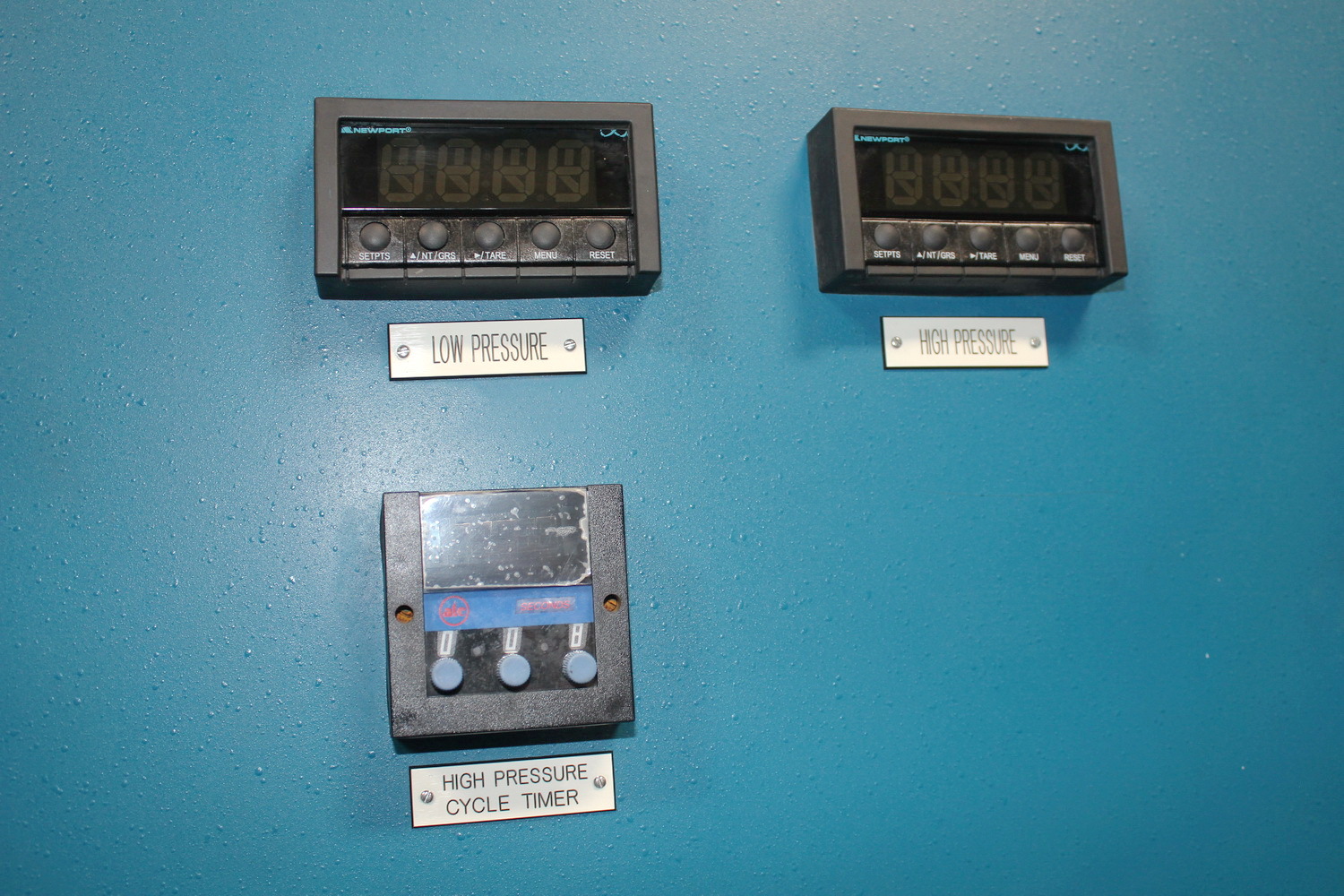

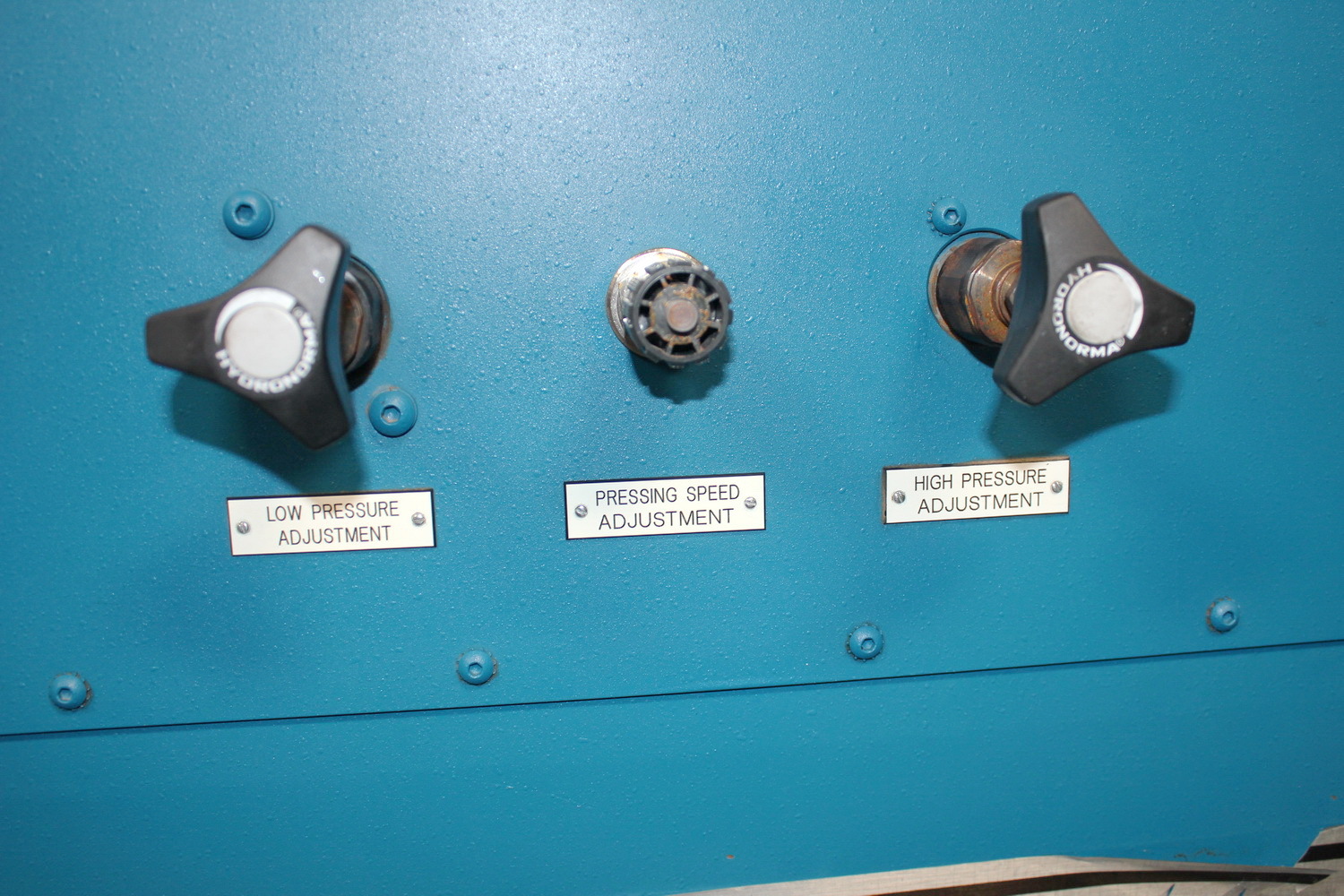

Variable Digital Low/High Pressure Adjustment Control
Variable Pressing Speed
Manual/ Semi Auto Control Mode
High Pressure Cycle Timer

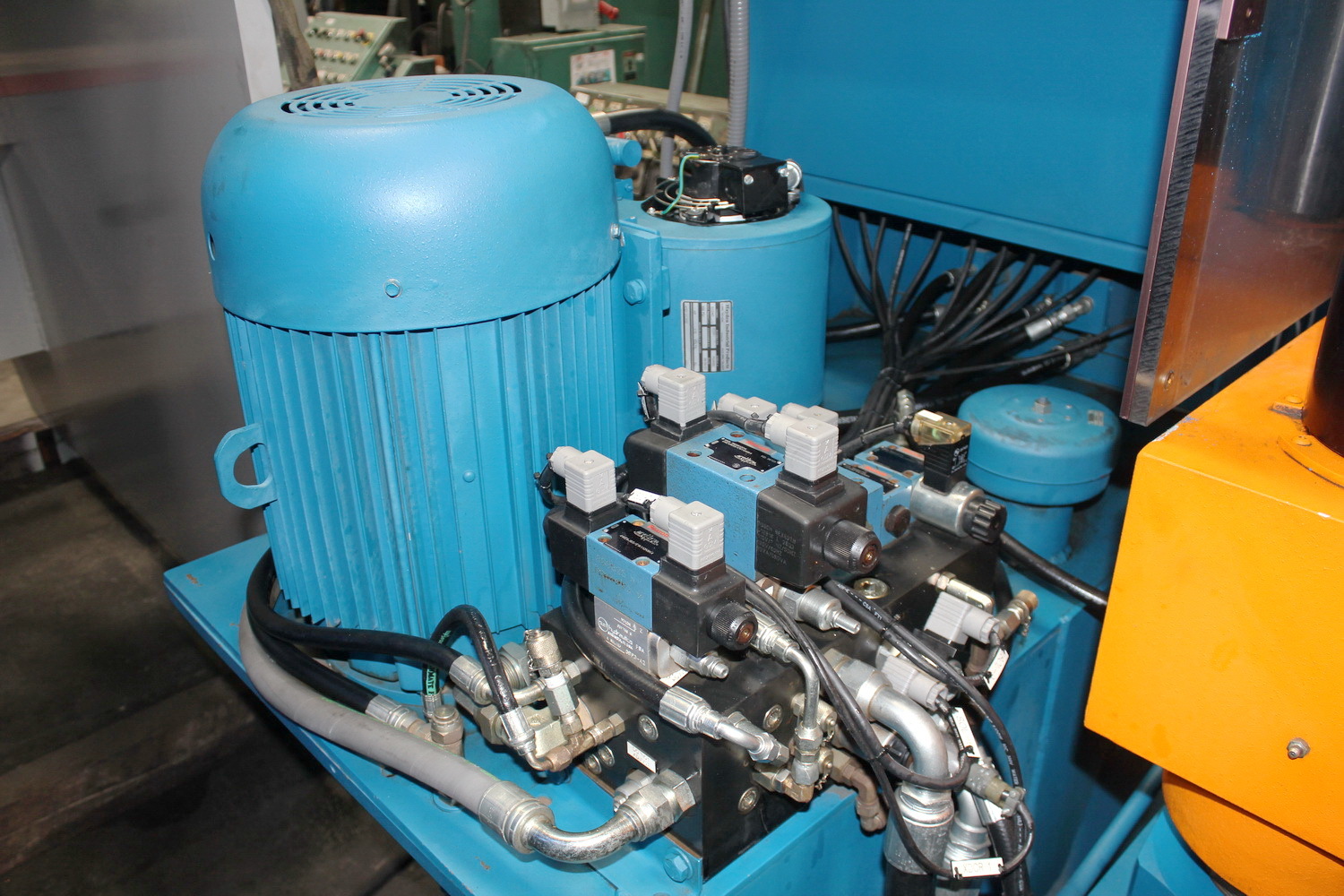

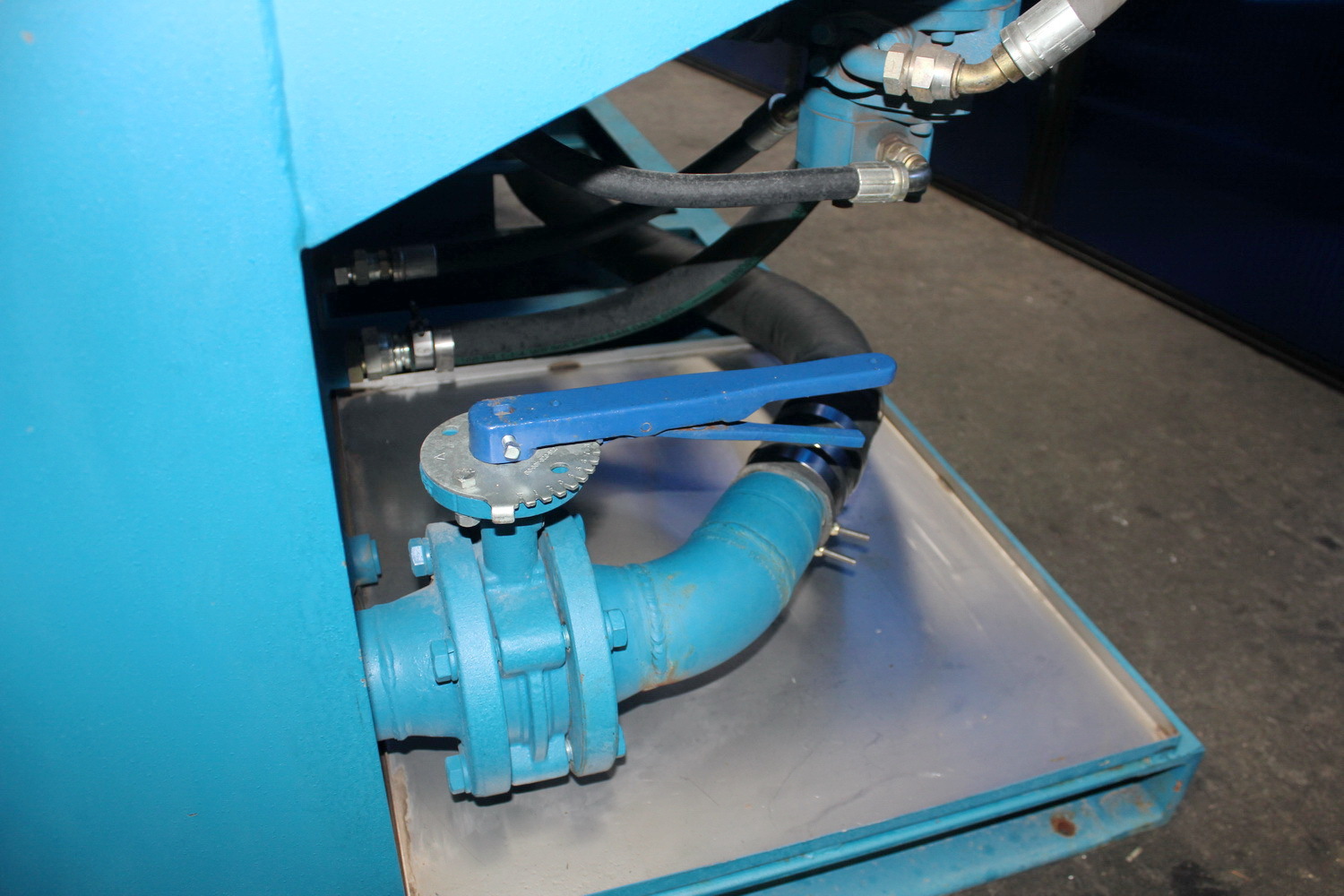

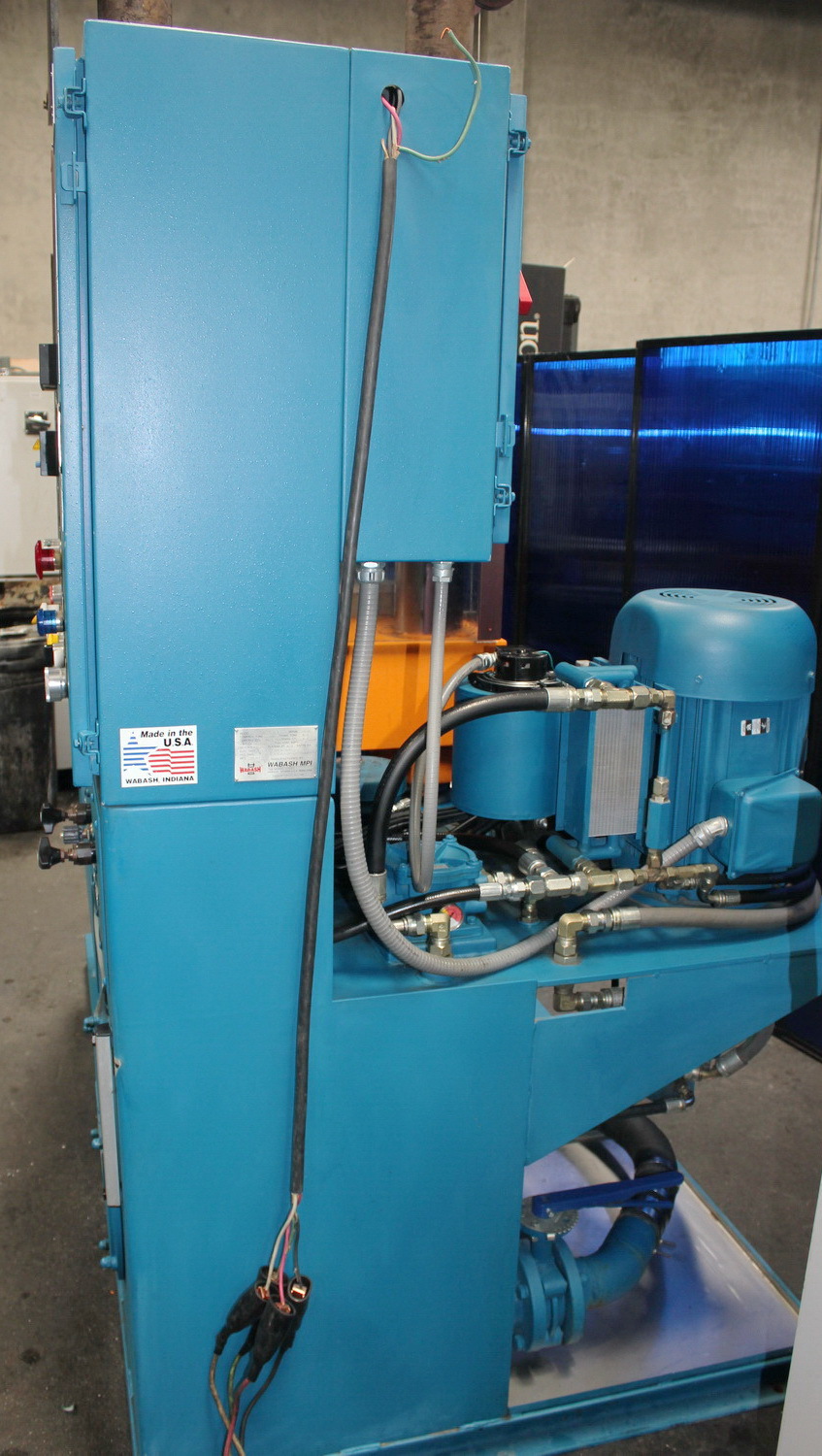

Oil Filter & Fan Cooled Heat Exchanger

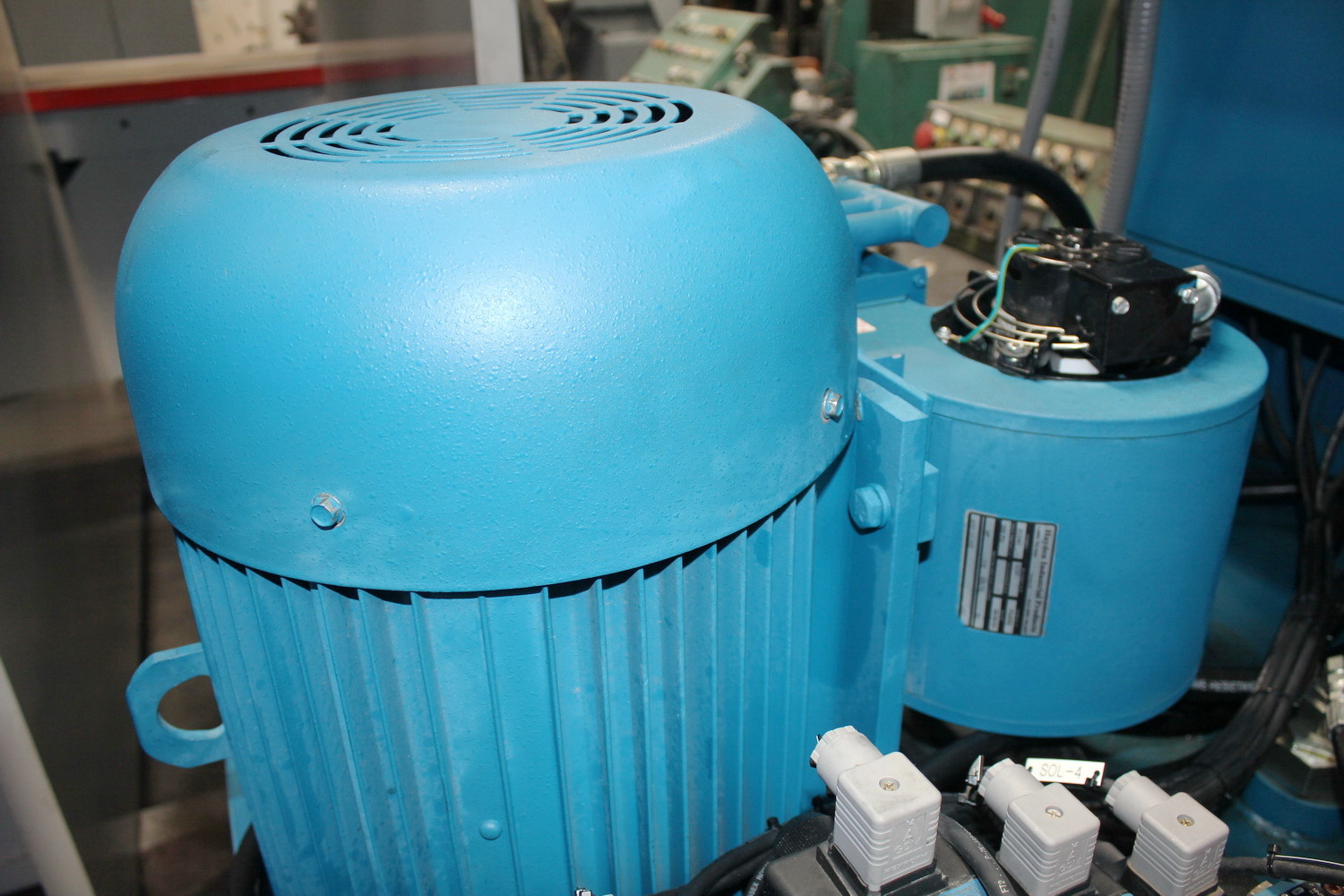

Horsepower: 15
