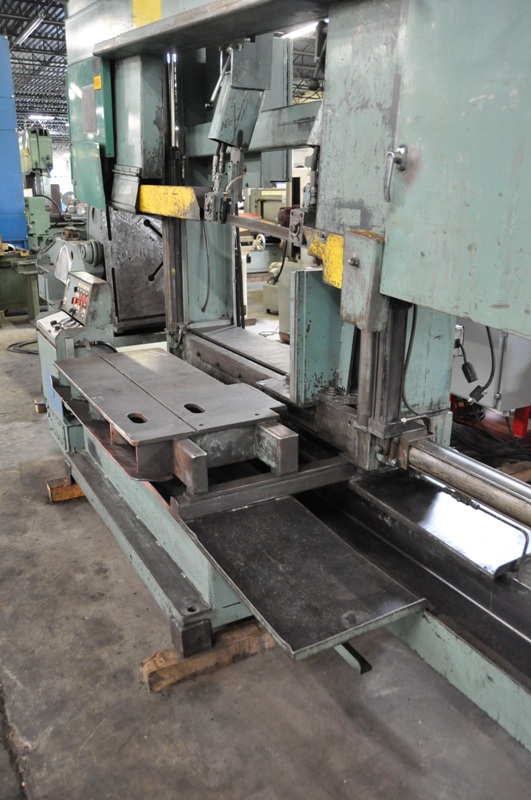

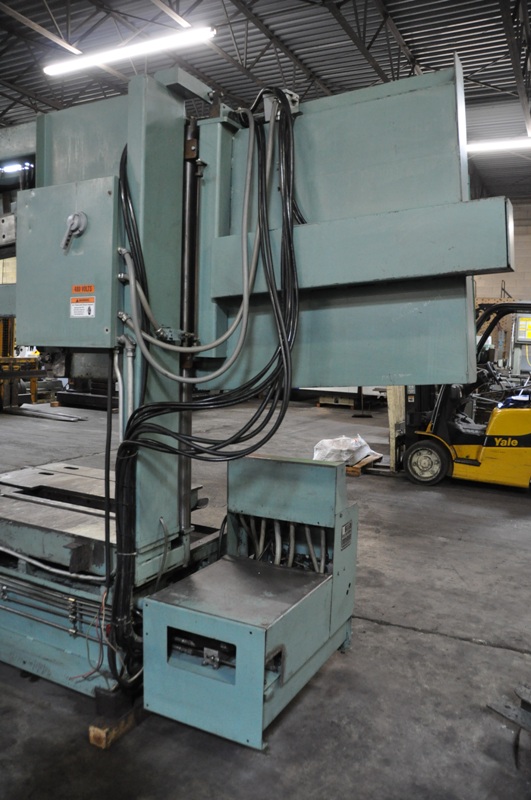

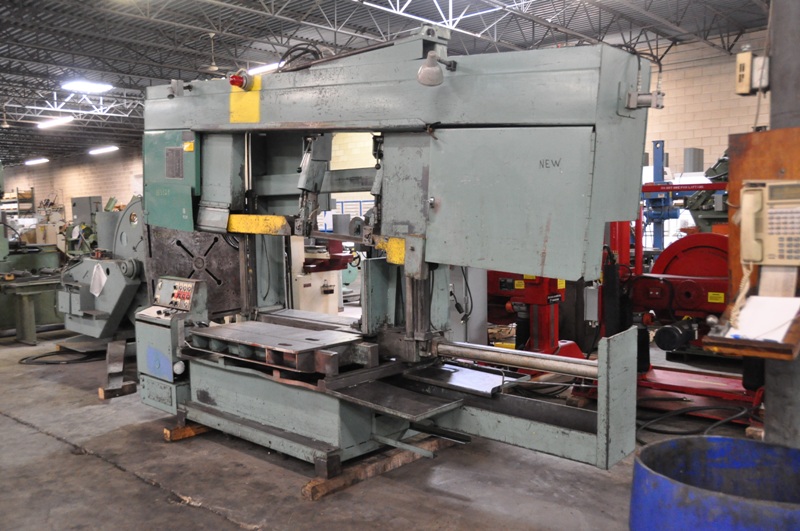

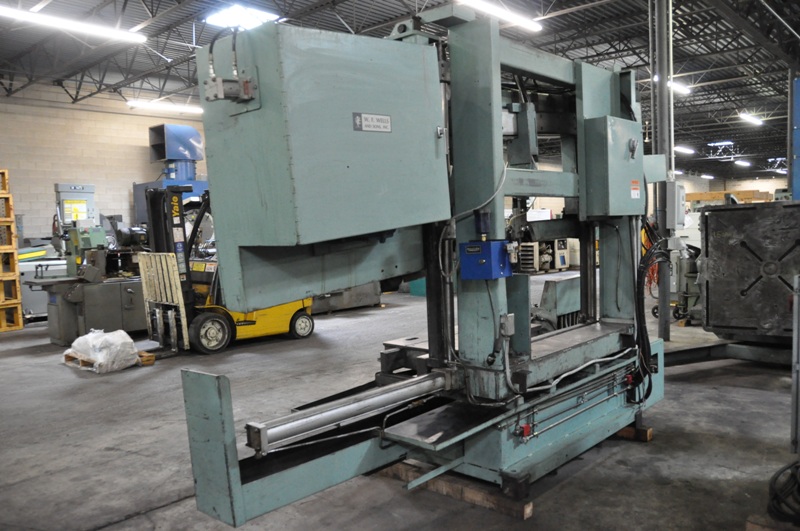

W. F. WELLS HORIZONTAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $19,500.00
HMC Stock No. 18332-P
Machine Serial No. A2088 B-91302
Machine Model No. B-25-3C
New Date: 1991
Capacity:
24" High x 40" Wide at 90 Degrees
25" High x 24" Wide at 45 Degrees
Rated Weight Capacity: 15,000 Lbs.
Blade Speed: 60 to 400 SFPM
Blade Size: 1-1/2" x .050" x 26 11" to 27 3"

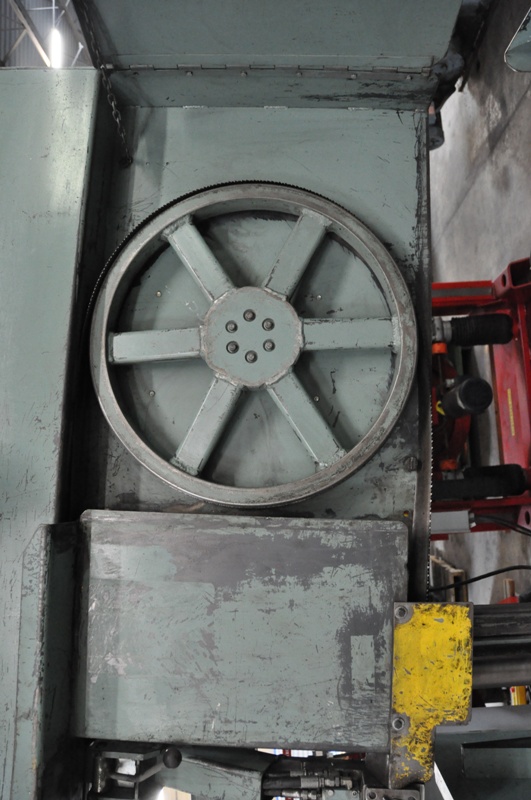

Band Wheel Size: 26"

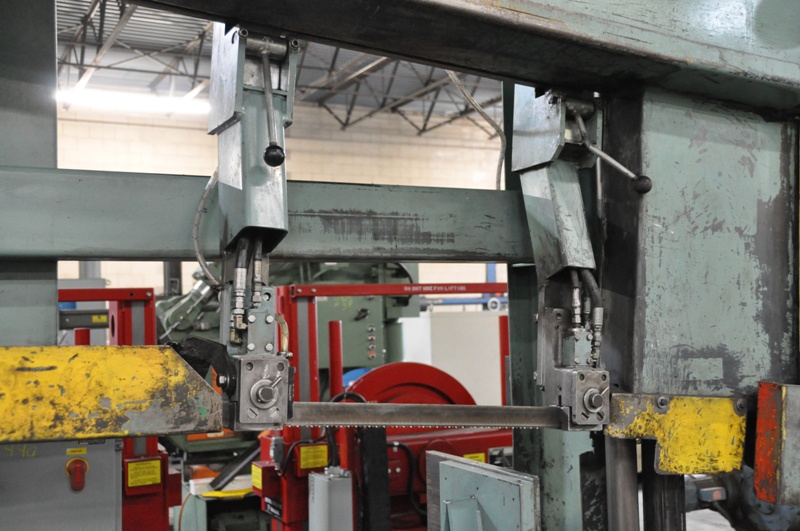

Blade Guide: Spring Tensioned Carbide with Idle Roller
Blade Tension: Hydraulic
Sawing Force: 0 to 1,000 Pounds
Hydraulic Tank Size: 20 Gallons
EQUIPPED WITH:

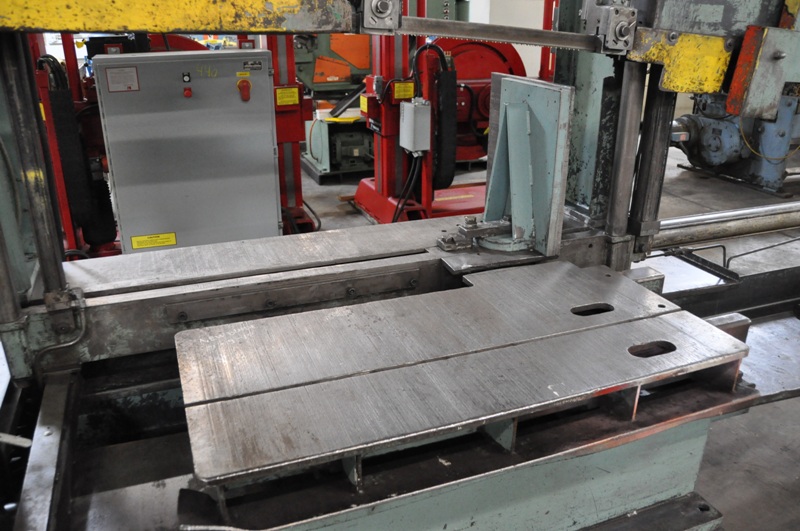

Single Hydraulic Vise
Manual Position Guide Arm
Hydraulic Blade Tension

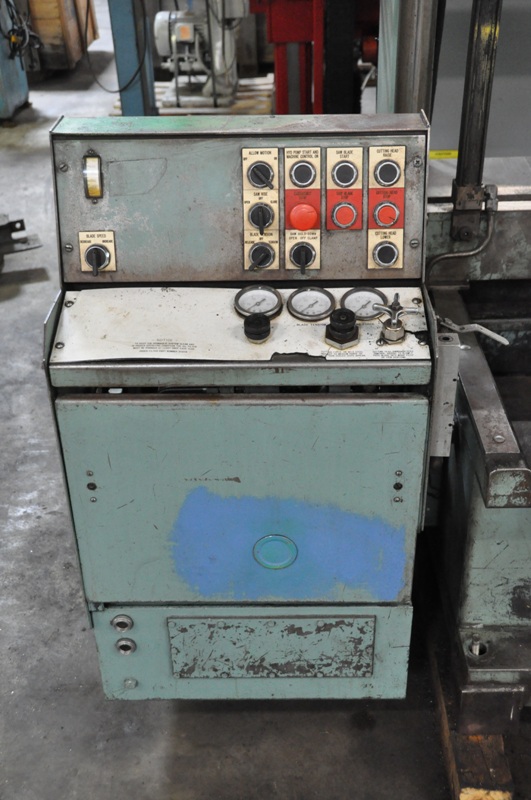

Gages for: Clamp Force, Blade Tension and Cutting Force
10 HP Blade Drive
Wired for 3 Phase, 60 Cycle, 480 Volts
Overall Size: 180" L-R x 48" F-B x 104" H x 7,000 Lbs.
