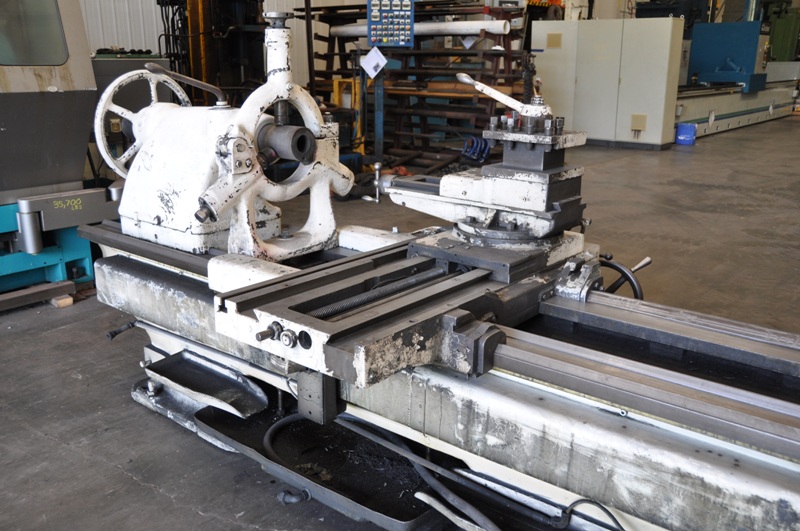

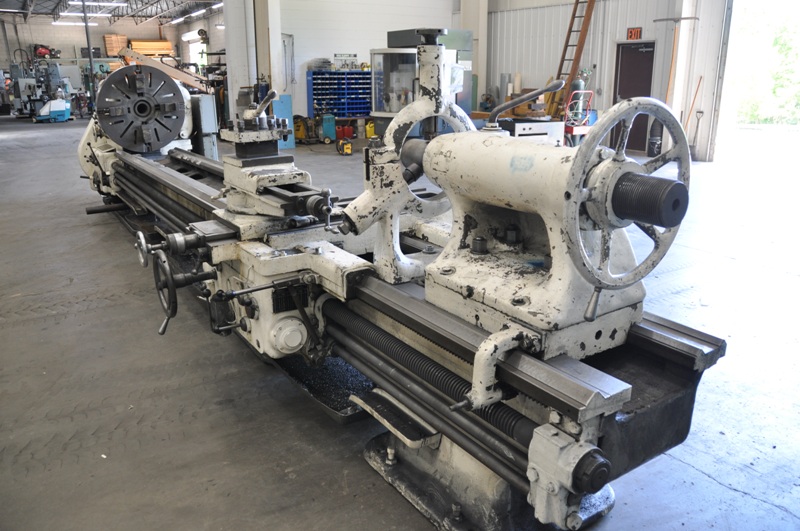

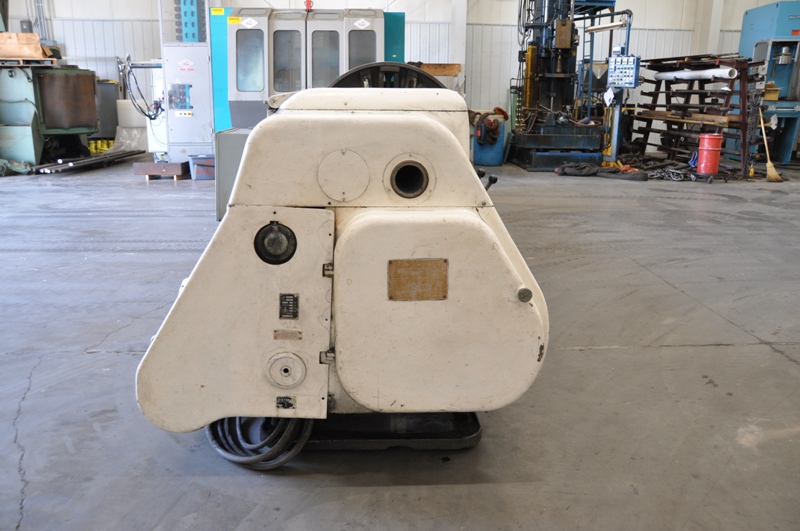

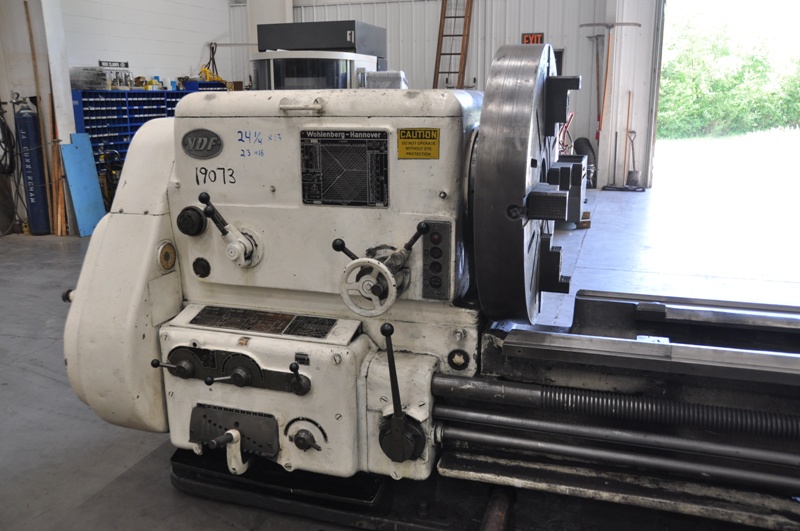

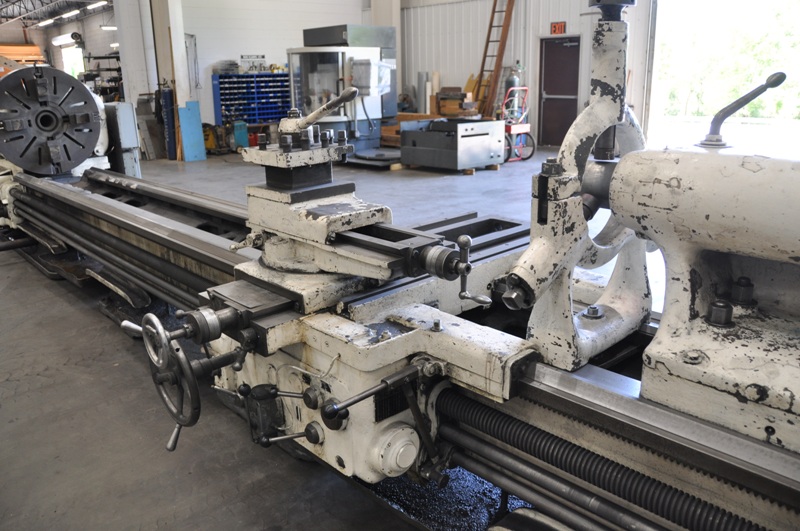

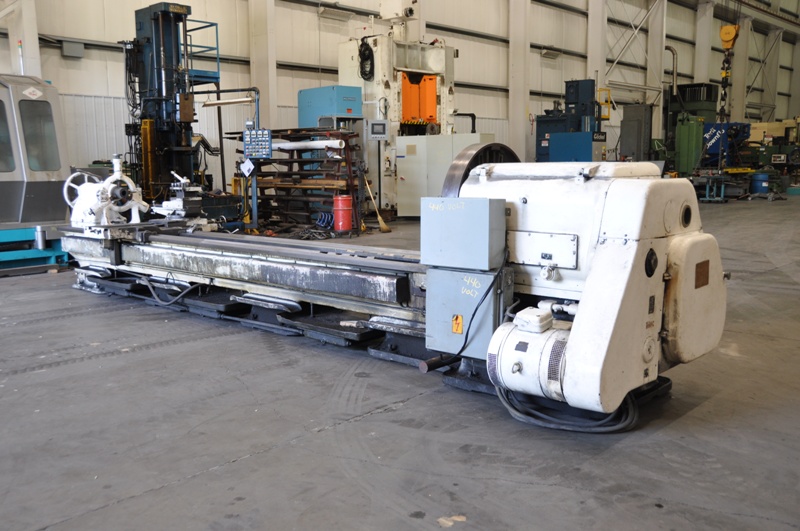

40" x 16 VDF ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA $7,950.00
HMC Stock #19073
Machine Serial No.: 2584
Machine Model No.: W40K
New Date: 1953
Swing Over Bed Ways: 38-1/2 in
Swing in Gap: Approx. 55"
Swing Over Cross Slide: Approx. 30 in
Distance Gap Length in Front of Chuck Face: 16-1/4 in
Distance Between Centers: 16 Maximum
Spindle Thru Hole: 3-7/8 in
Spindle Nose Type: 6 in Diameter Male Thread TPI Unknown
(20) Spindle Speeds: 3.55 to 800 RPM
(40) Whitworth Threads: 2 to 28 Requires Gears #71, 131, 71
(55) Metric Threads: Requires Gears #71, 131, 71
(42) Modul Threads: Requires Gears #71, 80/100, 71
(52) Inch Threads: Requires Gears #71, 113, 71
Change Gears Required for All Threads: 71, 131, 80, 100, 113
Gears Supplied: (2) 71, (1) 113
EQUIPPED WITH:
Spindle Brake System

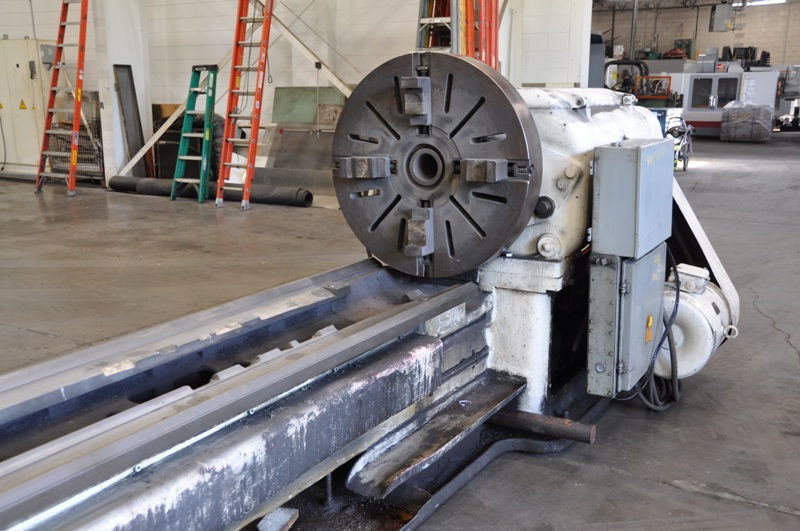

35-1/2" Diameter 4 Jaw Chuck with Adjustable Hard Reversible Jaws
Power Carriage Rapid Traverse NOT Operational
(2) Removeable Chip Pans

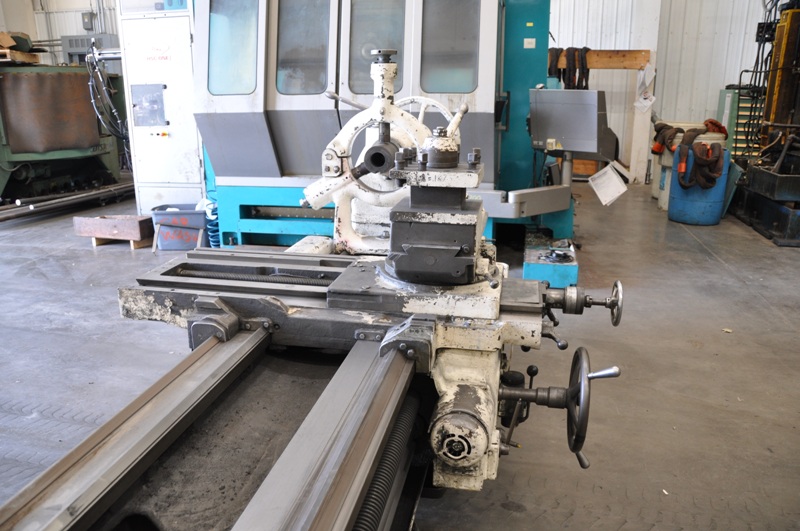

10" Square Built in Turret Tool Post
Half Nut for Threading NO Thread Chasing Dial
Power Feed to Top Compound
Inch Graduated Cross Slide and Compound Dials

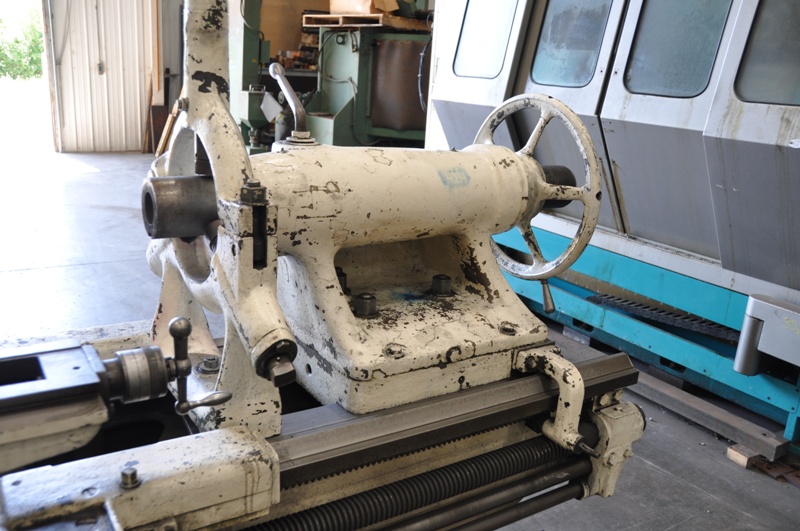

Tailstock Quill Diameter: 4-3/4 in with #6 Morse Taper
12" Capacity Steady Rest with Replaceable Solid Bronze Tips
Arranged for Coolant But NO Coolant Pump
22 KW (30 HP) Main Motor, Wired for 3 Phase, 50 Hz, 380 Volts ONLY
Machine was Test Run on 440 Volts
NO Chuck Wrench, Handle for Tailstock Crank Unit,
Overall Size: 310" (25.8) Long x 84" Wide x 64" High x 23,000 Lbs.
