Machine Location: Houston, TX 77010
CAPACITY
Swing over bed................................31 in
Swing over cross slide.....................24 in
Swing over gap................................53 in
Gap width from headstock...............24 in
Distance between center.................120 in
Bed width.........................................22 in

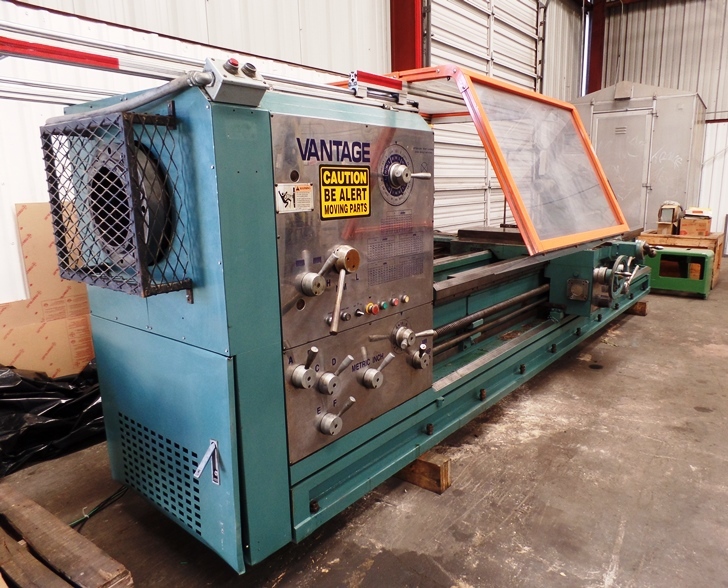

HEADSTOCK
Spindle nose.....................................A2-15
Spindle bore......................................9 in
Spindle step......................................18 steps
Spindle speed...................................4-428 RPM
CARRIAGE
Cross slide travel..............................26.4 in
Compound rest travel.......................15 in
Pitch of lead screw............................2 (TPI)

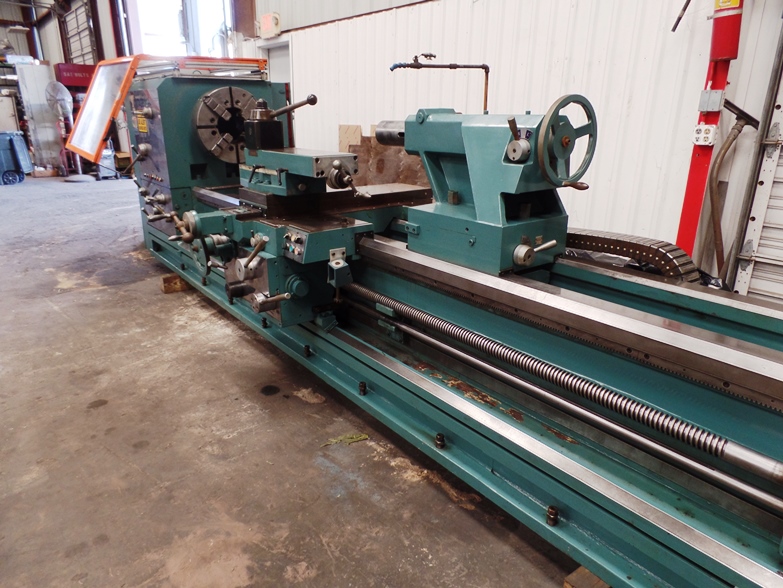

TAILSTOCK
Tailstock quill traverse......................11.75 in
Tailstock quill inner taper...................MT # 6
Tailstock quill diameter......................4.5 in
Machine weight.................................10,000 kg (22,000 lbs.)
