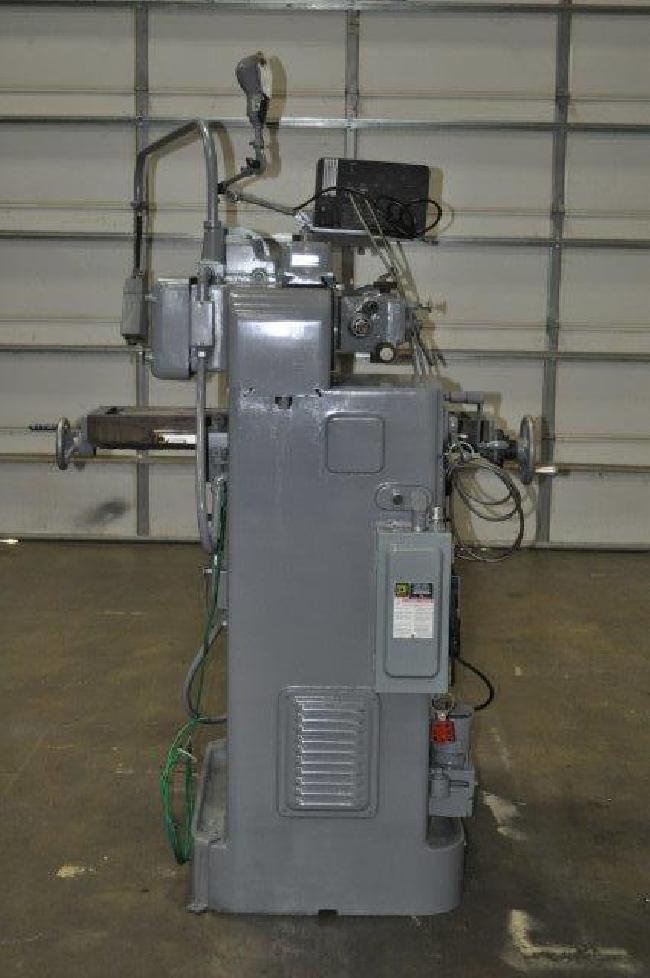

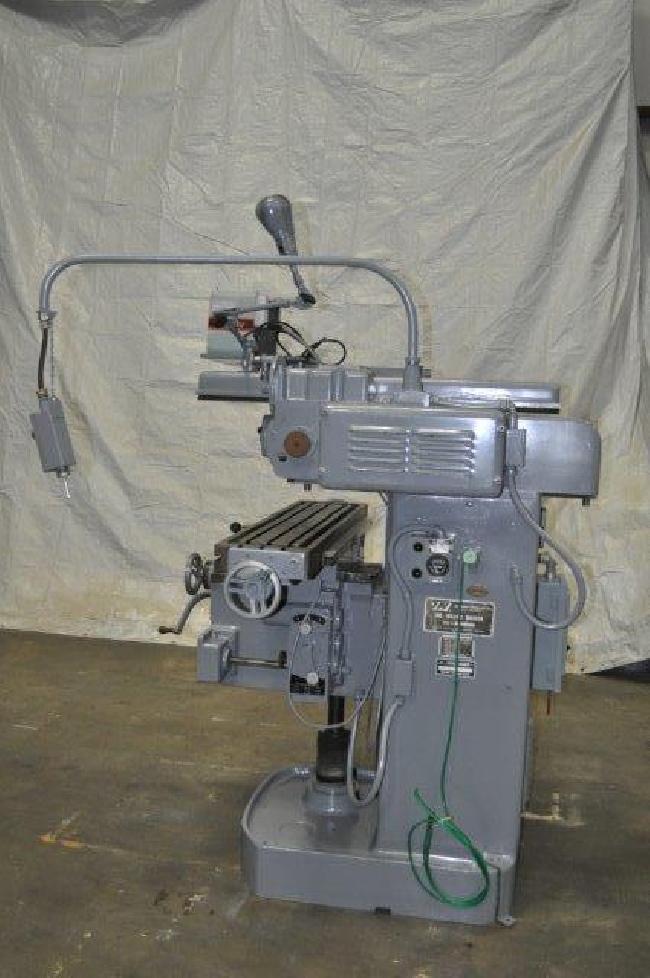

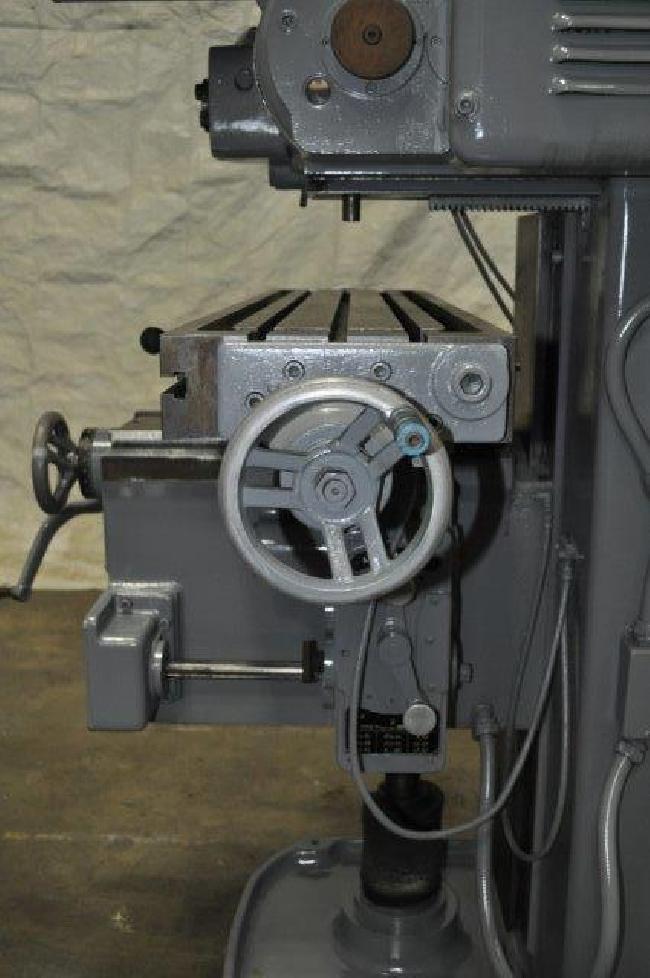

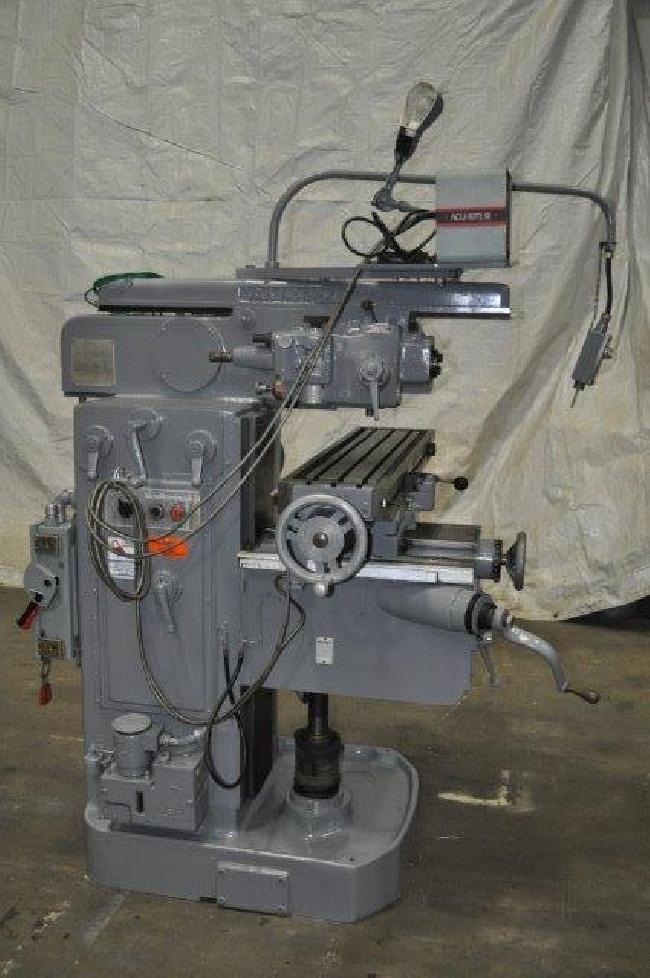

VAN NORMAN UNIVERSAL MILLING MACHINE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


1QR
3-6186-1166
Milling Machines
MILLERS, HORIZONTAL, UNIVERSAL
used
  (LB)
1967
$0.00

Description

REFERENCE NUMBER: 13076Q

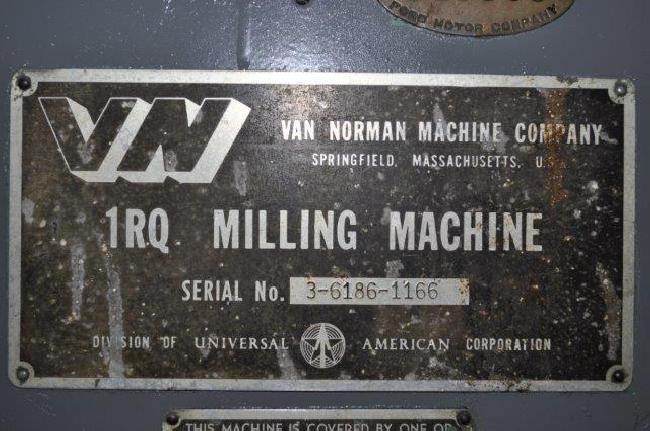

MODEL #: 1RQ

SERIAL #: 3-6186-1166

YEAR:  1967

42-1/2 in x 10 in TABLE AREA

0-90 DEGREES SPINDLE SWIVEL
L-45 DEGREES, R-35 DEGREES TABLE SWIVEL
22 in LONGITUDINAL TABLE TRAVEL
10 in CROSS SADDLE TRAVEL
24 in VERTICAL KNEE TRAVEL
20-1/2 in OVERHEAD RAM TRAVEL
100-3600 RPM SPINDLE SPEEDS(14)
4 in QUILL TRAVEL
.0015/.003/.006 IPR QUILL FEEDS (3)
#30 SPINDLE TAPER
3/4 in -17 IPM FEED RATES (9)
3 HP SPINDLE MOTOR
1/3 HP FEED MOTOR
APPROXIMATE DIMENSIONS:  68 in x 60 in x 71 in TALL
APPROXIMATE WEIGHT:  3750 LBS

EQUIPPED WITH:
UNIVERSAL SWIVEL SPINDLE

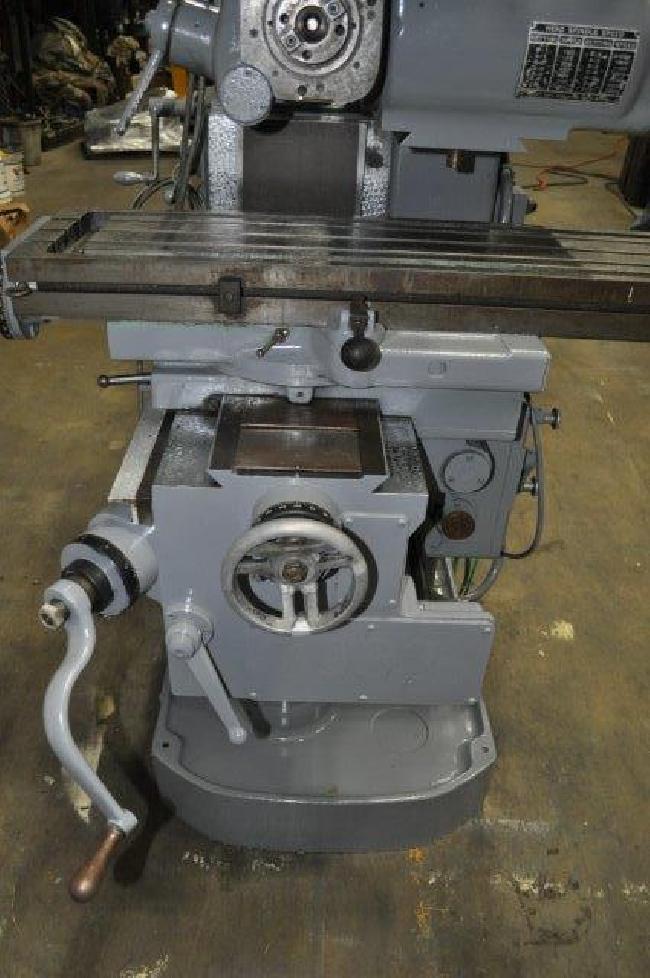

SWIVEL TABLE
2-AXIS DRO
TRABON LUBE SYSTEM
COOLANT
PENDANT CONTROL
