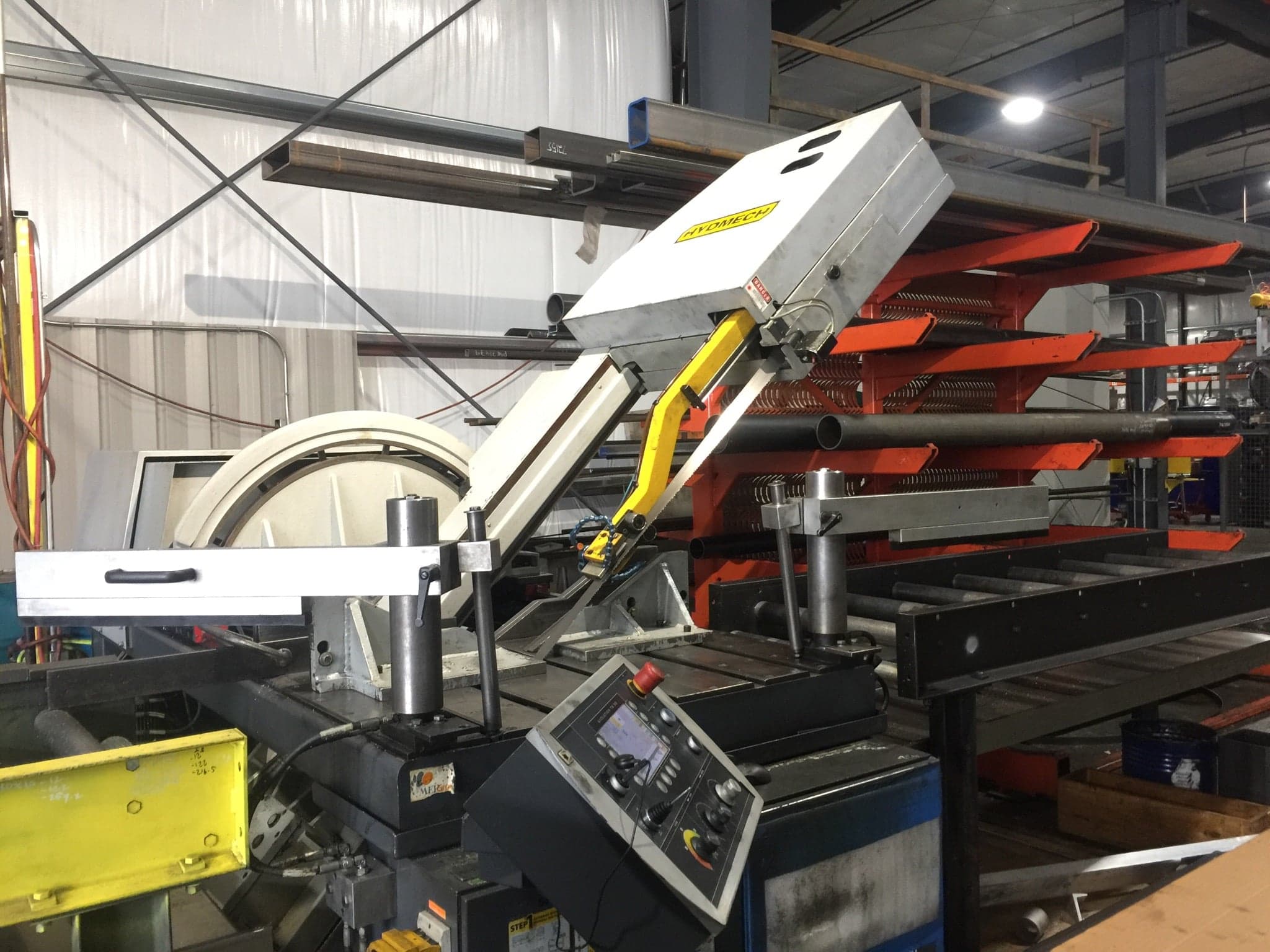

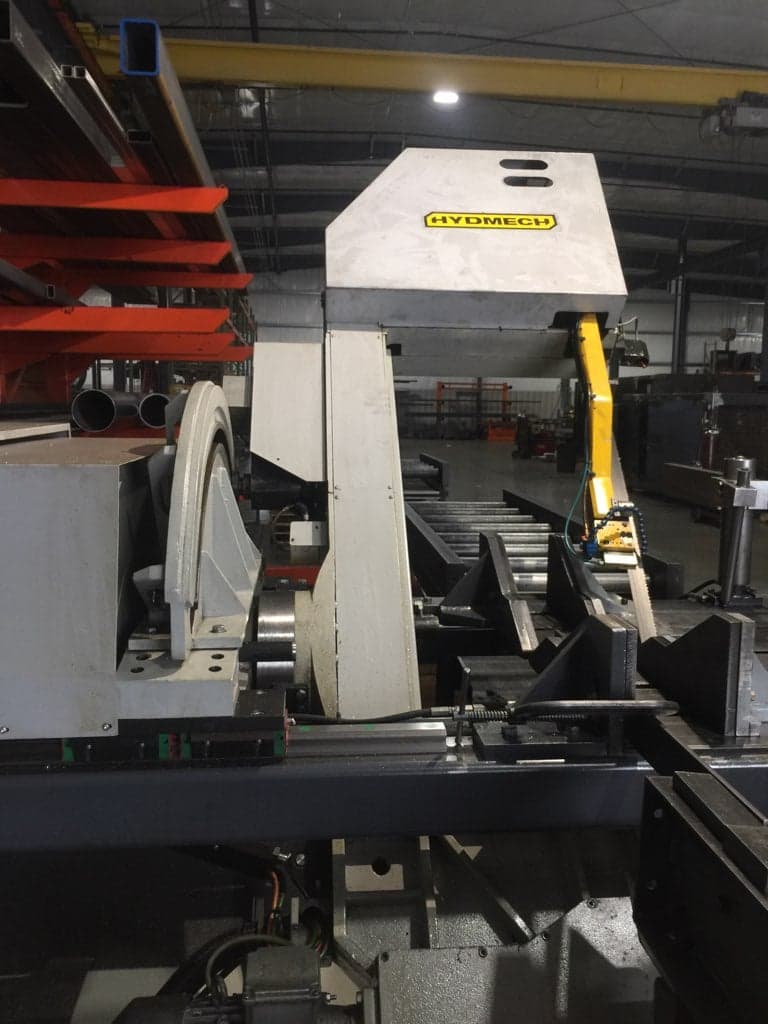

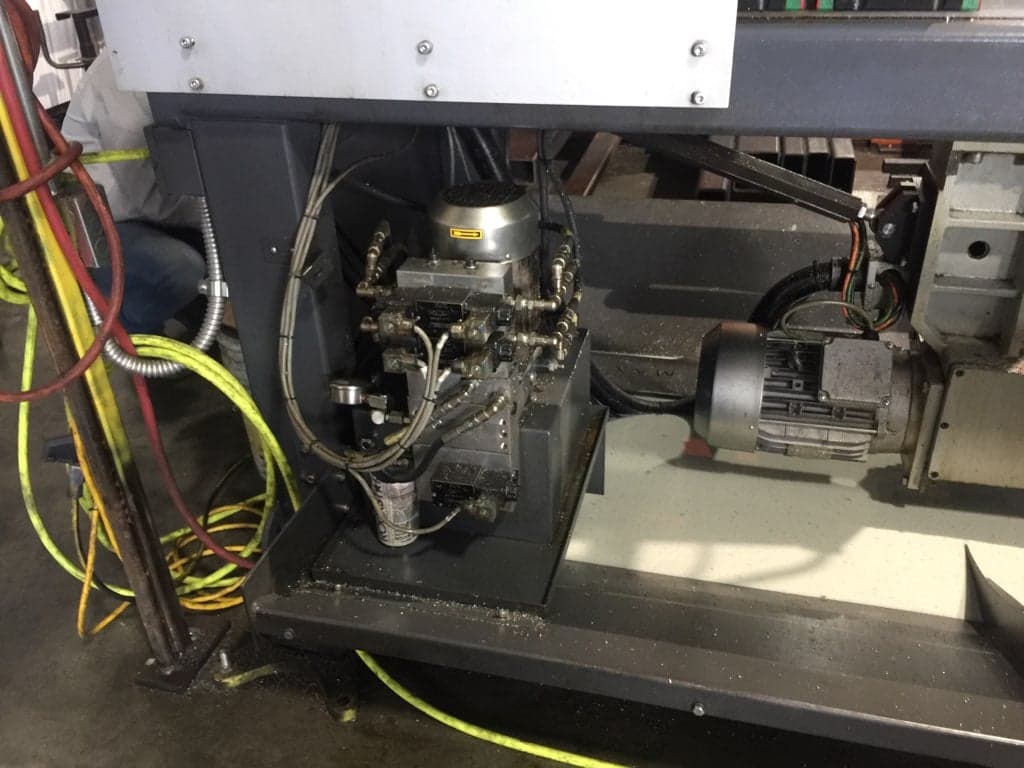

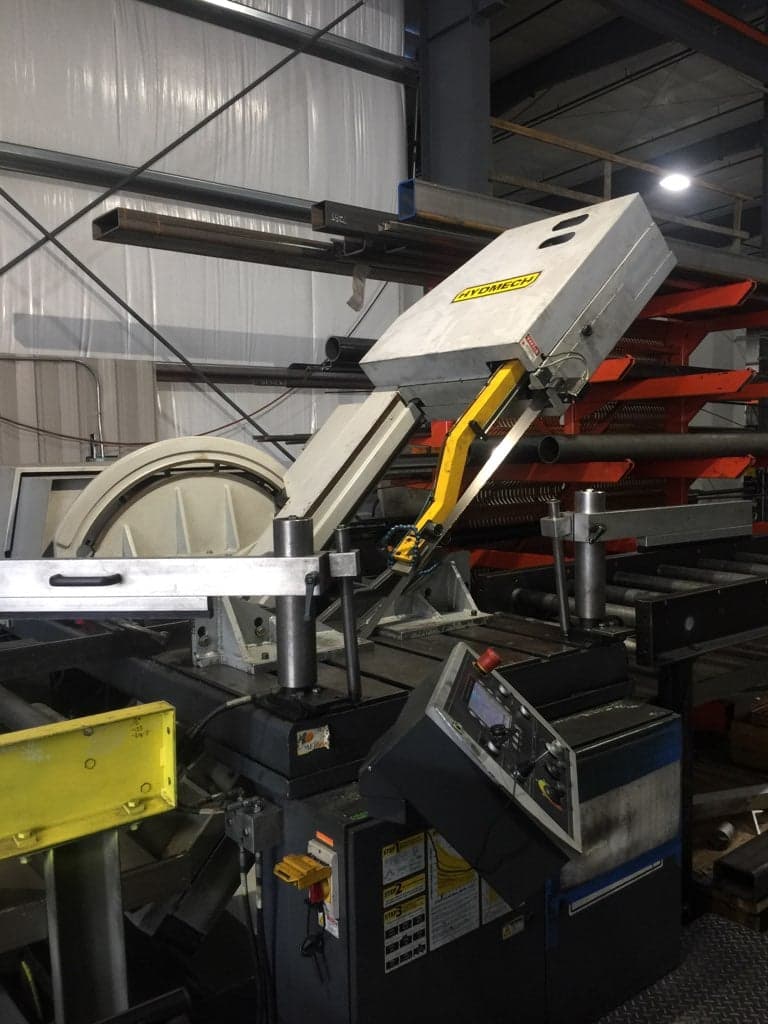

USED HYDMECH V-20 VERTICAL BAND SAW

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


V-20
Saws
SAWS, BAND, VERTICAL
used
4200 (LB)
0
$0.00

Feature Video

Description

Technical Specifications
CapacityRectangular (h x w)Round
90 deg25 in x 20 in20 in
45 deg17 in x 20 in17 in
60 deg Left and Right11 1/4 in x 20 in11 1/4 in
Blade Size1 1/2 in x 19 ft  3 inHyd. Tank Capacity7 Gallons
Blade Drive10 HP VFDMachine Weight4,200 lbs.
Motor Voltage480 (*208, 240, or 575) vTable Height44 in
Blade Speed65-400 SFMDimensions (w x l x h)70 in x 128 in x 112 in
Coolant Tank Capacity20 GallonsMitering capability60 deg left to 60 deg right
Standard Machine Features
  • 4 deg canted head allows for efficient cutting and improved blade life
  • Cast iron, torsion free saw head provides durability, stiffness, and absorbs vibrations
  • On-demand hydraulics save energy
  • High efficiency, constant torque electric ball screw feed system
  • Automatic programmable mitering with (go to) angle functionality from 60 deg left to 60 deg right
  • Easy access electrical panel and hydraulics
  • Electric chip conveyor
  • Semi-automatic touch screen NC controller
  • Two full stroking hydraulic vises
  • Electronic ball screw powered, guide arm
  • 10 HP VFD. True direct blade drive  no belts/pulleys
  • Cast iron band wheels
  • Replaceable blade brush
  • Robust steel base
  • Variable vise pressure
  • Blade breakage switch
  • Electronic band tensioning provides consistent, automatic blade tension
  • Replaceable carbide guide inserts
  • 2 HP hydraulic pump provides system pressure
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Laser light
  • Work light
  • Mist lubrication
Machine Features
  • Hydraulic overhead bundling
  • Mist Lubrication System
