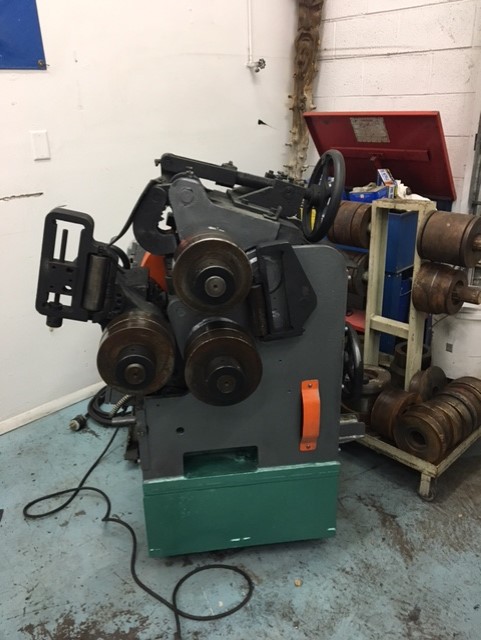

Used Hendley & Whittemore Angle Roll Capacities:
Angles leg out 2-1/2 in x 2-1/2 in x 1/4in
MS Angles leg in 1.5 in x 1.5 in x 1/4in
MS Smallest Angle leg out 3/4in x 3/4 in x 1/8 in
MS Smallest Angle leg in 3/4in x 3/4 in x 1/8 in
MS Flats on Edge 2 in x 3/8 in MS
Flats on Flats
4 in x 3/4in min dia.
MS Standard Steel Pipe 1.5 in with special rolls Specifications:
Diameter Rolls
7-1/2 in
Diameter of Upper Shaft 2.5 in
Diameter of Lower Shaft 2.5 in
Pass Line
34 in
RPM of Rolls
22
Equipped With:
Manual Adjustment of Top Roll Jog Forward - Reverse -- Jog Reverse - Stop 5HP 460/3/60 Brake Motor Approximate Weight 3000 lbs
Overall Dimensions Approx.
83 in L x 36 in W x 53 in H Serial Number
16384
Price of above machine: $8,000.00
