Description

Machine Specifications

Force range:                     Adjustable up to 16,000 lbs.

Throat depth:                   24 in 610mm

Stroke length:                   0-8.5 in Adjustable

Electrical:                          208 3 Phase

Motor:                               5 HP

Oil tank reservoir:          10 gallons (38 liters)

Repeatability:                  +/-2 percent of force set

Features and Benefits

• Hydraulically powered.
• Safe, even application of pressure ensures proper seating of fastener.
• Ability to apply pressure at any point in stroke.
• Ability to jog ram up or down.
• Reversible at any point in the stroke.
• Patented safety system.
• Allows operator to work fast, confidently, without cumbersome tool guarding.
• No time consuming safety set-up necessary before use.
• Always operational regardless of pressure and stroke settings.
• Monitors machine operation to protect tooling from damage.
• Significantly decreases risk of part damage during hardware insertion.
• Designed for easy set up and operation.
• For use in automatic mode.
• Positive stop adjustable stroke cylinder.
• Allows delicate insertion work into light gauge material, aluminum, and plastic.
• Limits stroke when precise depth of stroke is required.
• Confirms that all holes received fasteners and counts completed parts.
• Allows easy access to large parts.

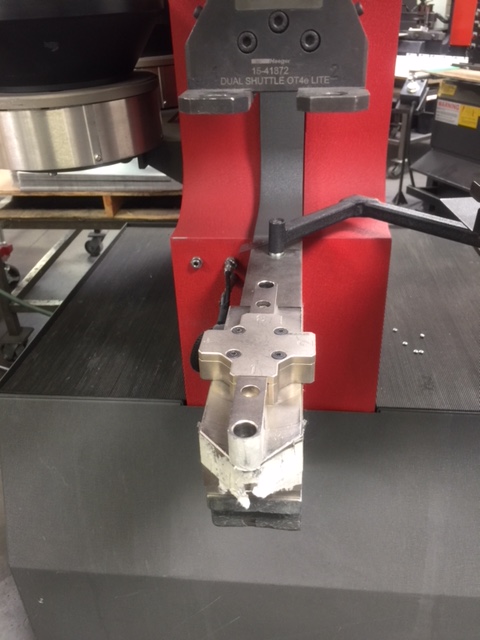

• Interchangeable tooling.
• Manual and automatic tooling for all Haeger Press models are interchangeable to keep tooling costs low as additional machines are added.
• Versatile.
• Optional part marking attachment.
• Optional corner rounding attachment.
• Optional press joining tooling.

Machine includes:

• Positive Stop
• Laser Part Locating

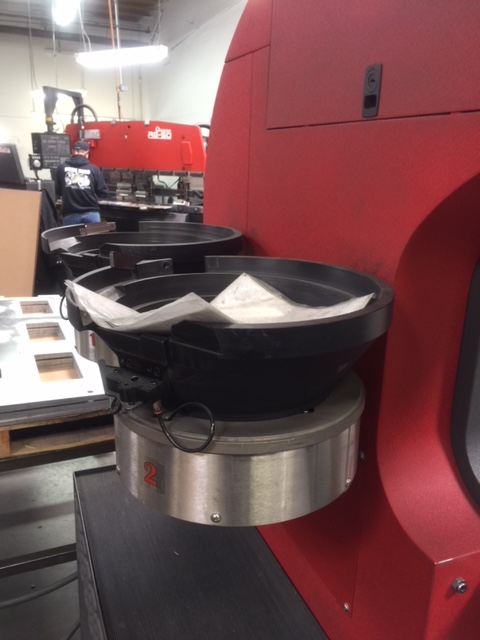

• MAS 350 Bowl

TERMS: Net Prior To Ship

FOB: Washington

DELIVERY: TBD
