FANUC ROBODRILL T21IF VERTICAL MACHIING CENTER WITH 4TH AXIS TSUDACOMA ROTARY 4TH AXIS ROTARY TABLE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


T-21iF
Drills Manual and CNC
Drilling and tapping Center
used
(LB)
2008
$0.00

Description

Description:
1-USED FANUC ROBODRILL MODEL T-21iF CNC VERTICAL MACHINING CENTER

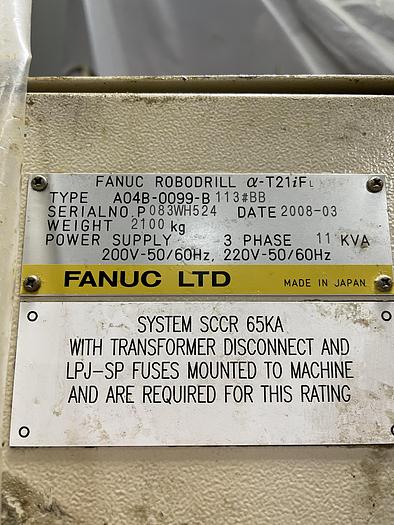

SERIAL NUMBER: P083WH524.                                         BUILT NEW: MARCH 2008
=================================================================
CATALOG SPECIFICATIONS:

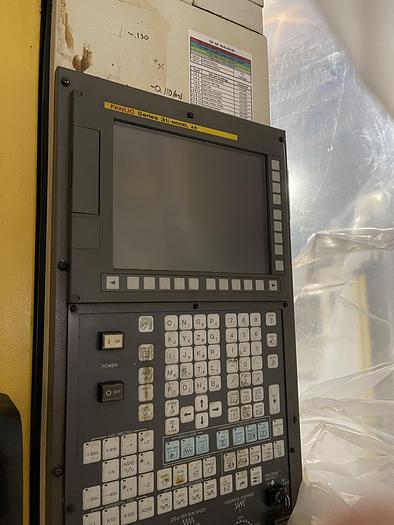

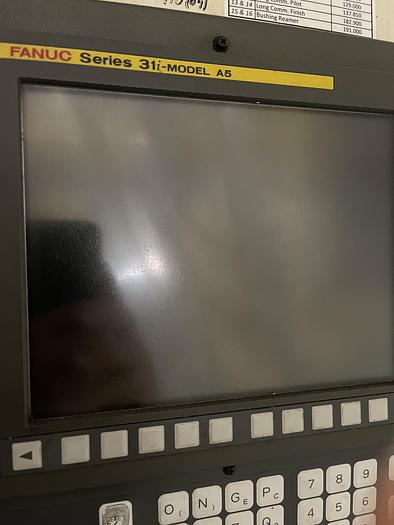

MACHINE CONTROL: FANUC 31I-A5 CNC CONTROL
TABLE SIZE: 25.6" X 15.7"
MACHINE TRAVELS (X/Y/Z): 19.7"/ 15.7" / 13"
SPINDLE TO TABLE DISTANCE: 5.9" TO 18.9" PLUS 4.25" FOR RISER
SPINDLE CENTER TO COLUMN DISTANCE: 15.748"
TABLE CAPACITY: 440 LBS
SPINDLE TAPER: BT-30 BIG PLUS TAPER SPINDLE
SPINDLE SPEEDS: 100 TO 10,000 RPM
RAPID TRAVERSE RATE (X/Y/Z): 2125 IPM
MAXIMUM CUTTING FEED RATE: 0.039 TO 1181 IPM
TOOL CHANGER STYLE: BI-DIRECTIONAL HIGH-SPEED TOOL TURRET
TOOL CHANGER CAPACITY: 21 STATIONS
TOOL CHANGE TIME: .9 / 1.1 SECONDS TOOL TO TOOL
MAX TOOL LENGTH: 9.8"
MAX TOOL WEIGHT: 6.6 LBS.
SPINDLE DRIVE: 7.3 / 5 HP (10 MIN RATING / CONTINUOUS RATING)
Specifications:
Manufacturer FANUC ROBODRILL
Model T21iF
Condition Used
 STK#  104569
