100-1949
980872
Milling Machines
Vertical Knee Mills
used
2500 (LB)
1998
$5,950.00

Description

Description & Specifications

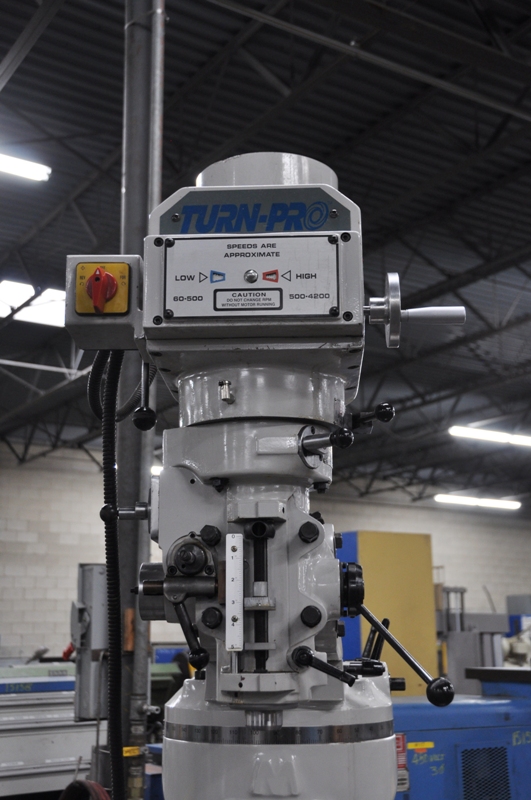

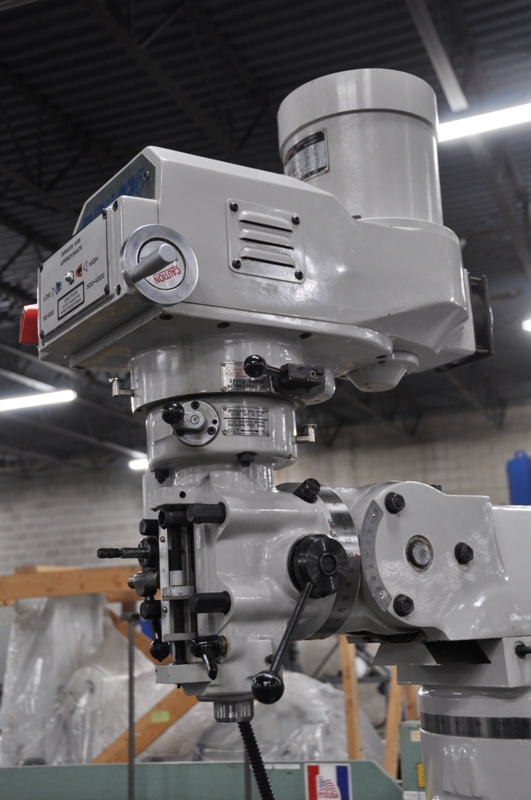

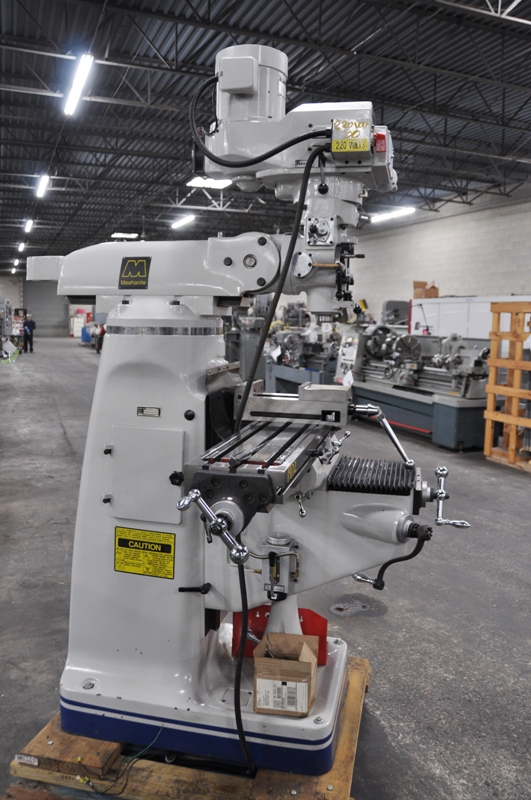

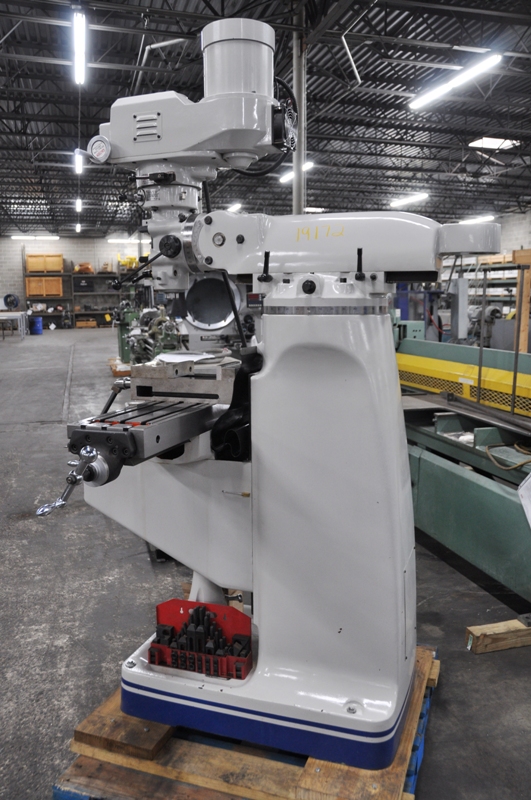

TURN - PRO VERTICAL MILL

PRICE: Loaded on Truck, Our Warehouse, York, PA   $5,950.00

HMC Stock # 19172

Machine Serial No.: 980872
Machine Model No.: 100-1949
New Date: 1998 / Machine LOOKS UNUSED

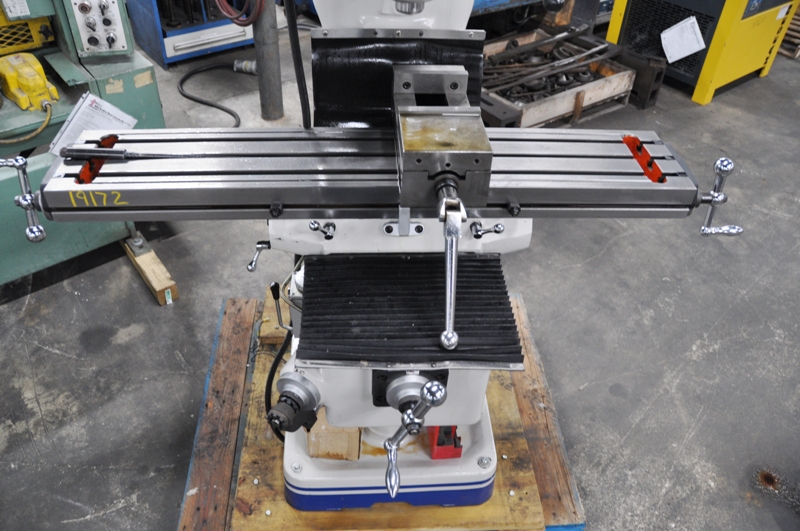

Table Size: 9" x 48" with (3) T-Slots
Table Travel: 33"
Saddle Travel: 12"
Knee Vertical Travel: 14"
Spindle Taper: R8
Variable Spindle Speeds: 60 to 4200 RPM
Spindle Travel: 5"
(3) Spindle Power Feeds: .0018, .0034 & .0056 TPR
Distance Spindle to Table: 6-3/4" Min. to 18-3/4" Max.
Ram Travel: 12"
Spindle to Table: 2" Min. to 16" Max.
Distance Center of Spindle to Column: 6-3/4" Min. to 18-3/4" Max.
Head Swivels: 90 deg Left & Right
Head Tilts: 45 deg Front & Back
Table Load Capacity: 550 Lbs.
Spindle to Column Distance: 19" Max.
Ram Turret Swivel: 360 Degrees

EQUIPPED WITH:
Rubber Saddle Way Covers Front and Back
Meehanite Casting

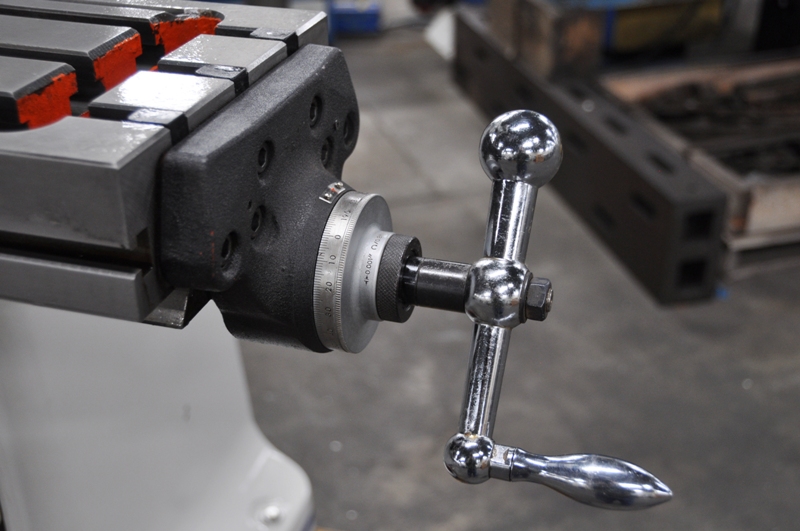

Knee Crank Handle and Lever Type Quill Handle
3 HP Motor
Wired for 3 Phase, 60 Hz, 220 / 440 Volts

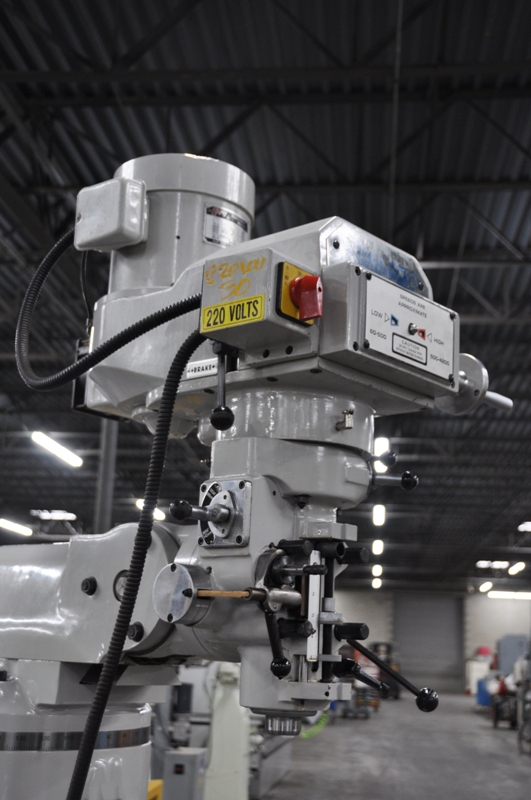

Presently Wired for 220 Volts
Made in Taiwan

Overall Dimensions: 66" L-R x 63" F-B x 86" High (w/o skid) x 2,500 lbs.
