SPECIFICATION
Reference # GMT-2828
Model #
Serial # 81011
Year of manufacture 1981
Swing over bed 39.37 in
Swing in gap 55.1 in
Swing over carriage 25.59 in
Distance between centers 78.74 in
Bed width 29.52 in
Spindle speeds (16) 6 to 590 R.P.M.
Spindle nose A-11
Spindle bore 3.14"
Leadscrew diameter 2.55 in
Longitudinal feeds (24) 0.1 to 3.79 mm
Cross feeds (24) 0.05 to 1.89 mm
Inch threads (29) 1 to 36 T.P.I.
Metric threads (22) 1 to 36 mm
Longitudinal rapid traverse 250 I.P.M.
Cross rapid traverse 125 I.P.M.
Carriage travel 31.49 in
Compound travel 12.99 in
Tailstock quill travel 12.59 in
Tailstock taper #6 Morse
CHARACTERISTICS
Equipped With:
Made in JAPAN
Full Cast Base Design
NEWALL 2 Axis Digital Readout DRO
Live center

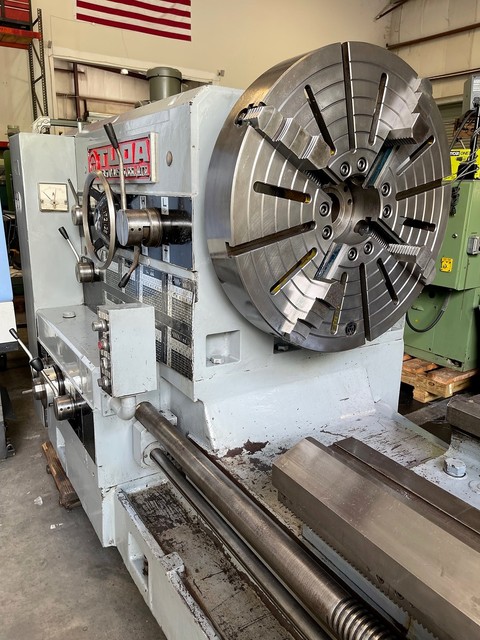

31-1/2 in Diameter 4 Jaw Chuck
One shot lube
30 H.P. Main motor
1 H.P. Rapid motor
Machine manual with Schematics
Machine is currently wired for 460 volt / 3 phase / 60 H.Z.
Approximate Weight (Machine Only):
25000 Lbs.
APPROXIMATE DIMENSIONS:
196 in L x 91 in W x 76 in H
PRICE: $34,500
