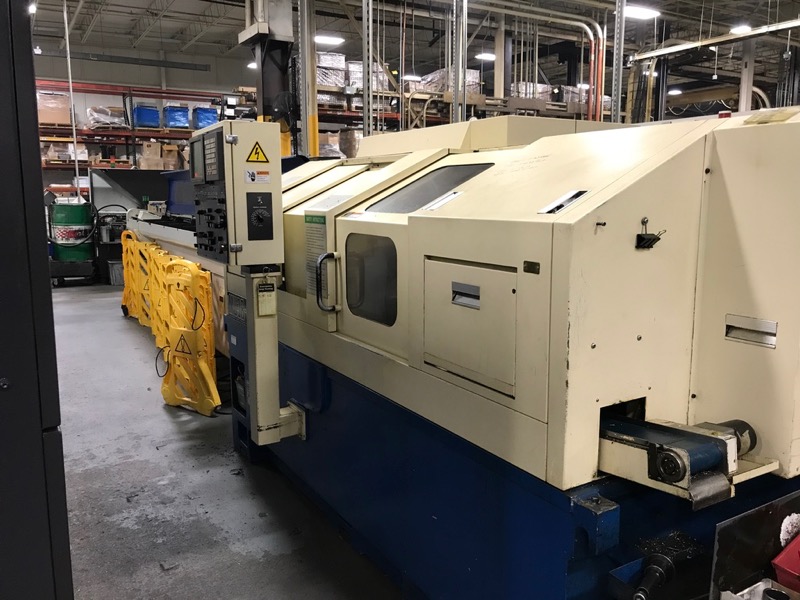

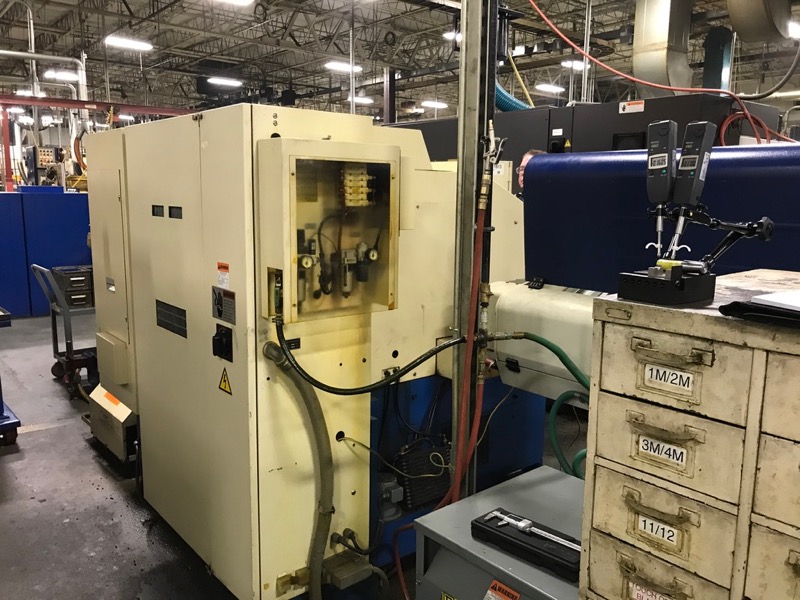

(1) Pre-owned Tsugami Swiss Type CNC Lathe

Model: MU38S

Year of Manufacture: 2008

Location: Maine

Condition: Very Good

SPECIFICATIONS

General Specification as Per Brochure

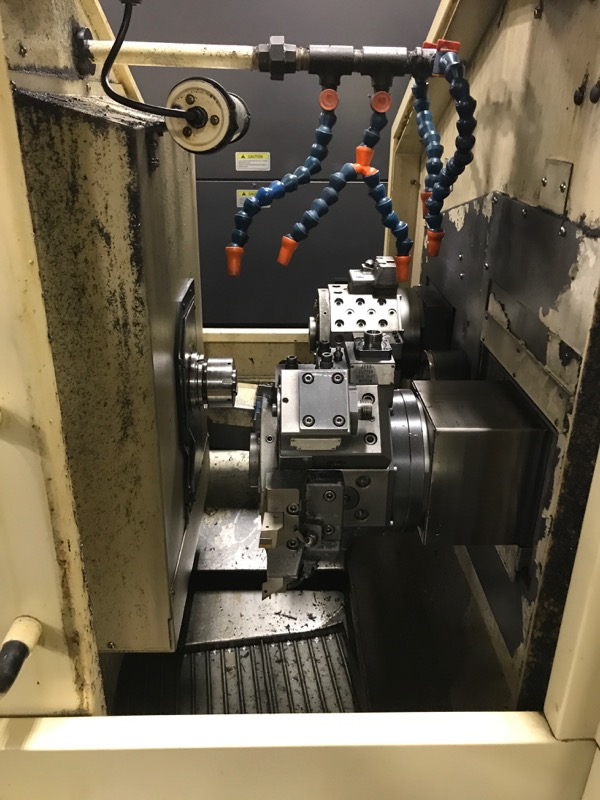

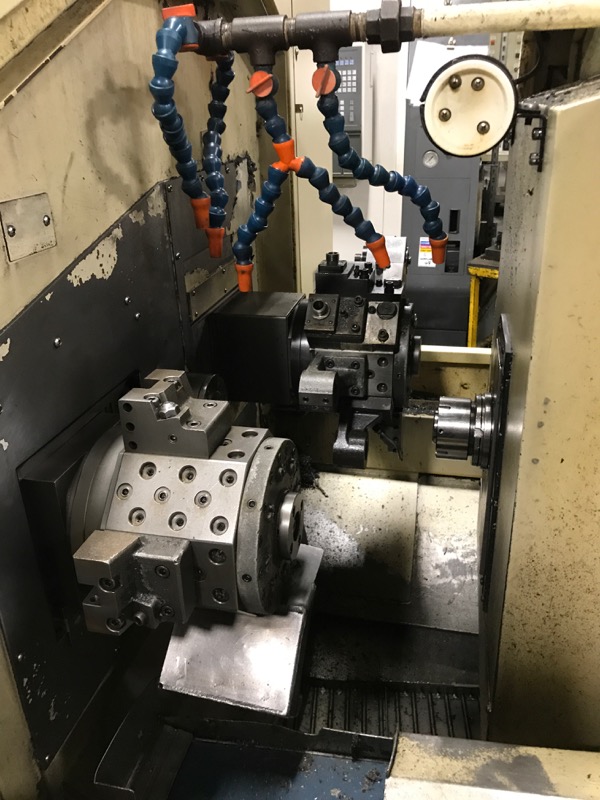

Dual Turret
Coolant through the turret & tool

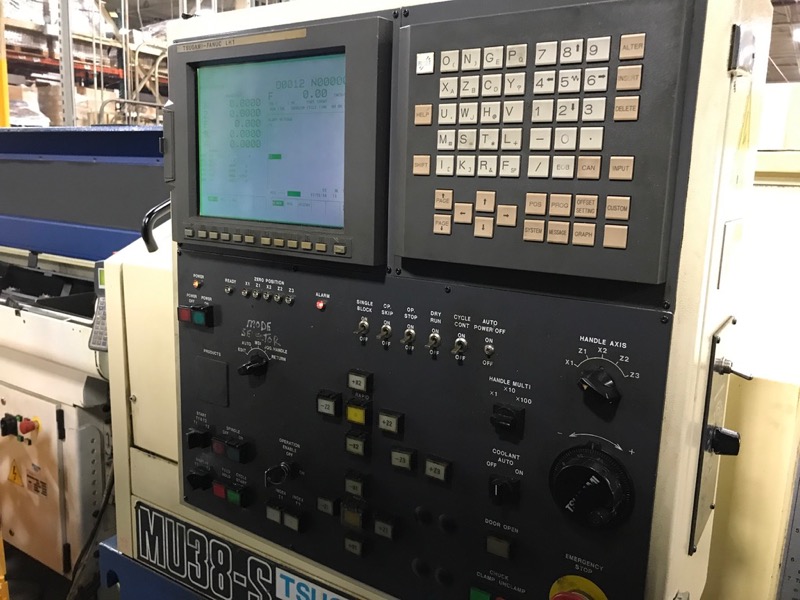

Control: Fanuc 18iTB
Simul. Control Axis: 6 (2+4)
Least Input Increments: 0.0001 in (diameter for X-axis)
Stock Diameter: 1.500 in
Max. Machining Length: 9.8 in
Max. Drilling Dia.: .63 in 1045 steel
Max Tapping Diameter: 1/2 in 1045 steel
Height of Sp. Center: 1,000 mm (39.37 in)
Spindle Speed: 60 to 5,000 rpm
Motor Output: 7.5 kw (10 hp)
Cutting Torque: 35 nm
Spindle Indexing: C-axis (5 degrees) 72 positions
Number of Turrets: 2
Number of Mountable Plane: 8 surfaces per turret,
3 tool locations per surface
Indexing Time: T1: 0.2 sec/pos.
T2: 0.3 sec/pos.
Idle Time (chip to chip): T1:0 to 1.5 sec
T2: 0 to 1.7 sec
Indexing Method: Servomotor
Max. Speed of Drive Axis: T2 Turret 5,400 rpm
Back Spindle:
Spindle Speed: 60 to 5,000 rpm
Motor Output: 3.7 kw (5 hp)
Cutting Torque: 14 n-m
Spindle Indexing: 5 deg. (72 div.)
Feed:
Stroke: X1 3.15 in, X2 4.33 in
Z1: 9.8 in, Z2: 5.51 in
Z3: 11.22 in (back spindle)
Rapid Traverse: X1, Z1, Z2, Z3: 787 ipm
X2: 472 ipm
Dimensions, Approx (w x d x h): 139 x 81 x 70 in
Weight (Approx): 11,500 lb

Equipped with (to be verified by buyer):
Part Conveyor
Chip Conveyor
REM Cool High Pressure Coolant System

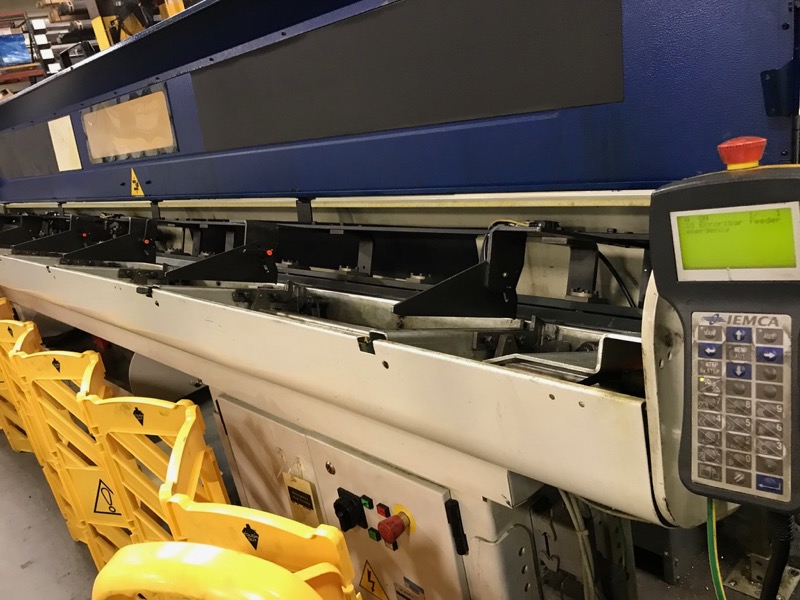

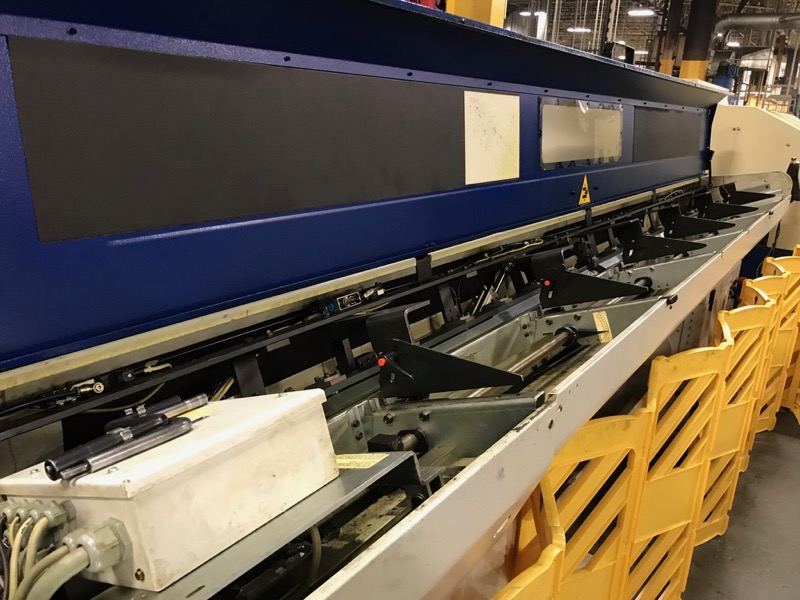

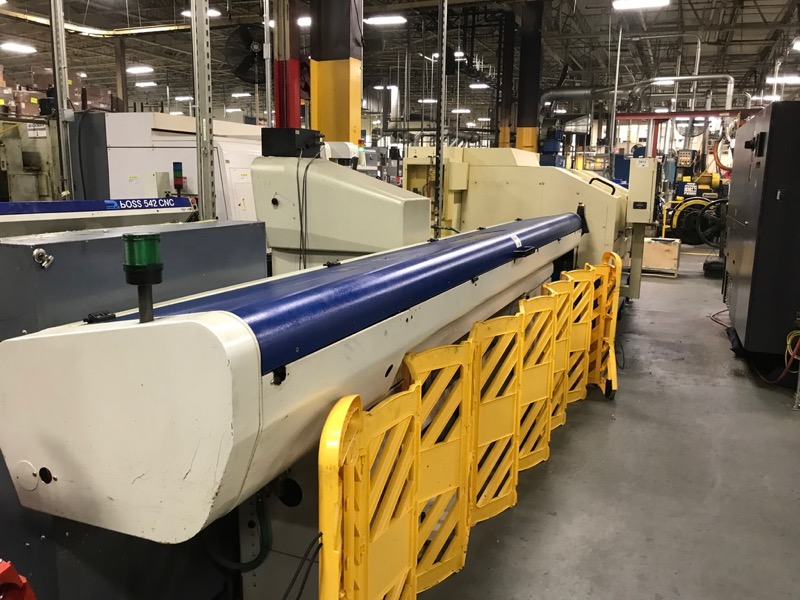

IEMCA Boss 551/E 12 ft. bar feed
Price: POR

To the best of our knowledge, the specifications contained herein are accurate but should be verified at time of inspection. If you have any questions please call (207) 784-1999.
