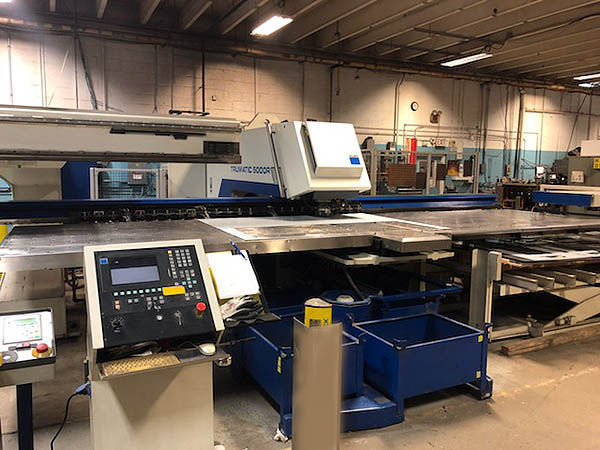

TRUMATIC 120 X 65 PUNCH PRESS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Trumpf TC5000R
Stock Number: 3072
Punches
PUNCHES, SINGLE STATION, NC and CNC
used
(LB)
0
$0.00

Description


Working
Area X x Y 120in x 65in

Capacities

Max.
Sheet thickness .31in

Max.
Punching force 25 Tons

Active
presser foot .5 - 2.25 tons / 4.5 - 20 kn

Programmable
in steps

Max.
workpiece weight 510 lbs


Speeds
X
axis 4000 in/min

Y
axis 2340 in/min

C
axis 330 rpm

Simultaneous
(X and Y) 4600 in/min

Max.
Stroke rate punching (E = 1) 1000 1/min

Max.
stroke rate marking ca. 2800 1/min


Max.
acceleratrions X = 59 ft/s2 /X = 18 m/s2

(up
to 100 kg of sheet) Y = 29.5 ft/s2 /Y = 9 m/s2

X
= 350 1/s2

Tools

Linear
magaziner 21 tools with 4 clamps

No.
when Multitool is used 21 - 210 tools

Multitool
5/10


Tool
changing time

Single
tool <3 s

Multitool
0.7 s


Accuracy
Positioning
accuracy Pa 0.004in

Repeatability
Ps 0.0012in


Control

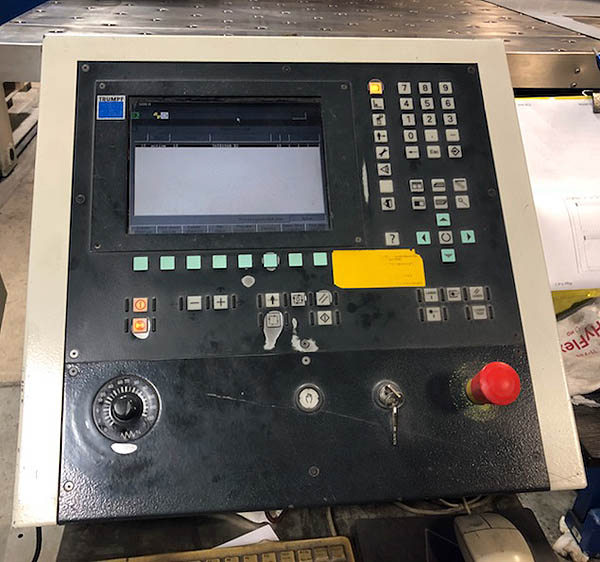

Siemens SINUMERIK 840D


Programmable
part Chute 20.0in x 20.0in

Max.
Part Size


Space
Requirements 299in x 275in

including
safety light barriers
