TRAK VERTICAL CNC BED MILL.

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


FHM7
072CY15433
Milling Machines
Bed Mills CNC
used
8000 (LB)
2007
$34,500.00

Description

Description & Specifications

TRAK VERTICAL CNC BED MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA           $34,500.00

HMC Stock # 22181
Machine Serial No.: 072CY15433
Machine Model No.: FHM7
New Date: 2007

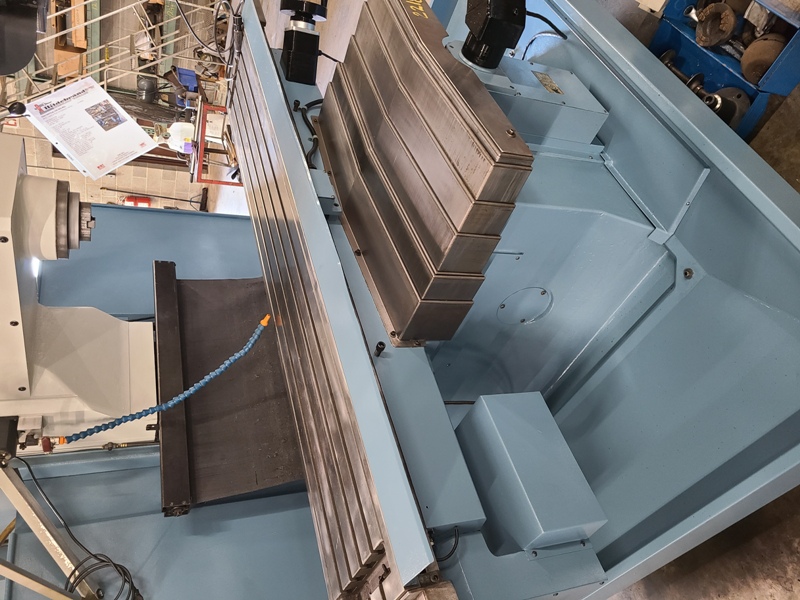

Table Size: 76" x 14"
T-Slots: 4 x 16 mm x 63.5 mm
Travel X: 60"
Travel Y: 23"
Travel Z: 20.5"
Quill Diameter: 5.06"
Spindle Taper: 40
Spindle Speed Range: 200 to 5000 RPM
Spindle Center to Column Face: 23"
Power Requirement, Control: 110V, 1P, 15A
Power Requirement, Machine: 220V, 3P, 60HZ Current
Full Load Amps: 37.5 FLA
Maximum Weight of Workpiece: 2,200 Lbs.
Height of Table from Bottom of Bed: 38.25"
Maximum Spindle Nose to Table: 21.5"
Way Surface: Dovetail X Axis
Way Surface: Square Ways Y and Z Axis
Drilling Maximum Capacity: 1" Diameter
Tapping Maximum Capacity: 5/8"
Milling Maximum Capacity: 7"
Milling Minimum Capacity: 3"
Automatic Lubrication Pump
Limit Switches

EQUIPPED WITH:

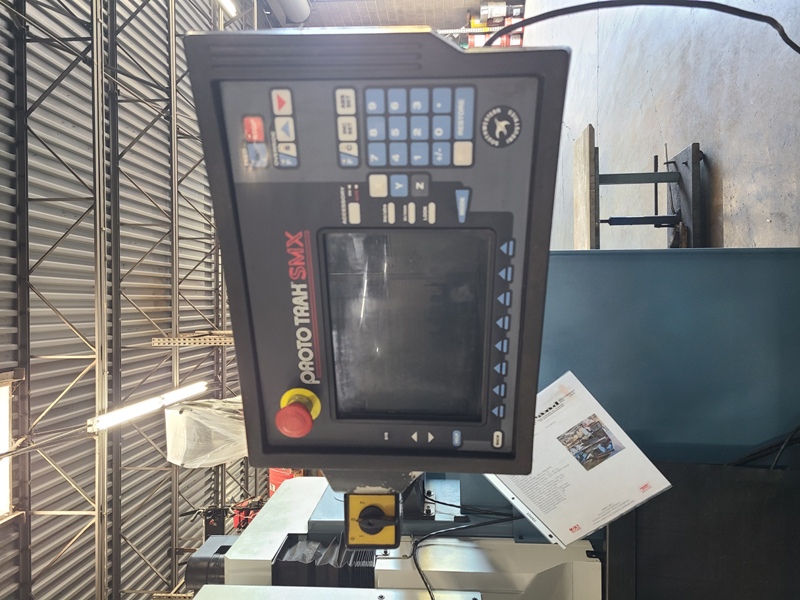

Prototrak SMX CNC Control
Power Draw Bar
Programmable Electronic Head
Electric Handwheels
Work Lamp
7.5 HP Main Motor
Wired for 3 Phase, 60 Cycle

Overall Dimensions: 87" LR x 91" FB x 97" High x 8,000 Lbs.
