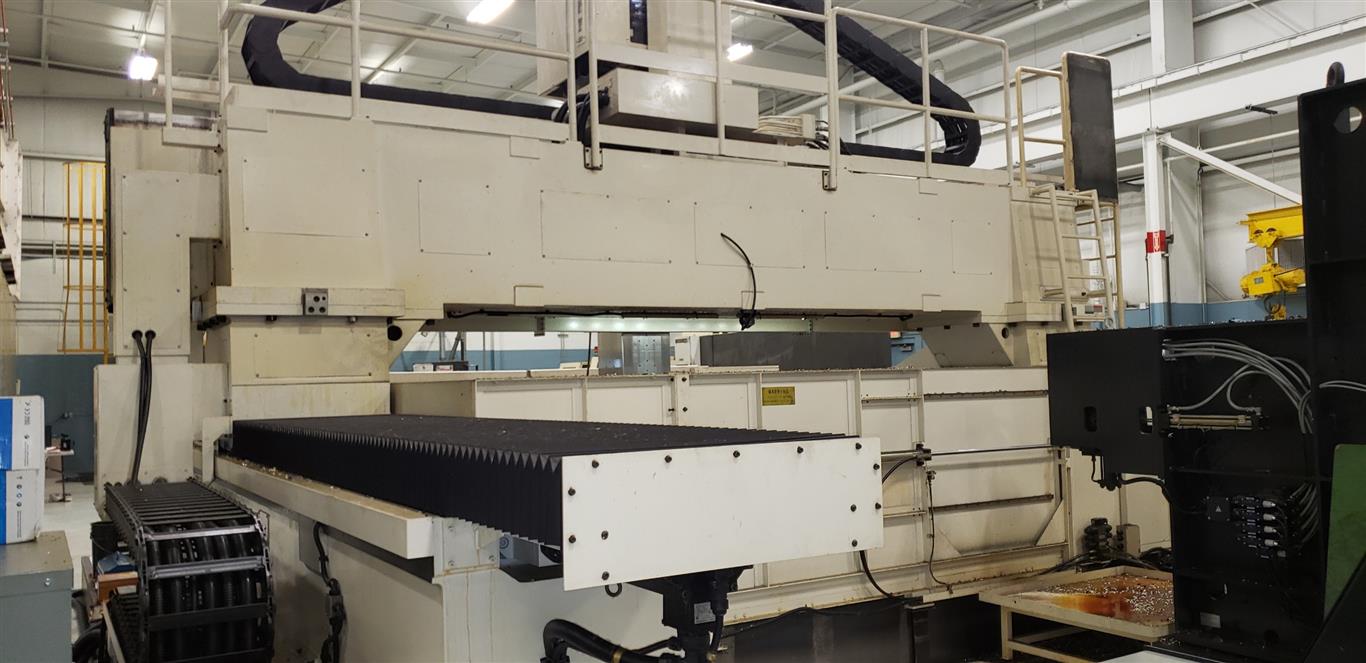

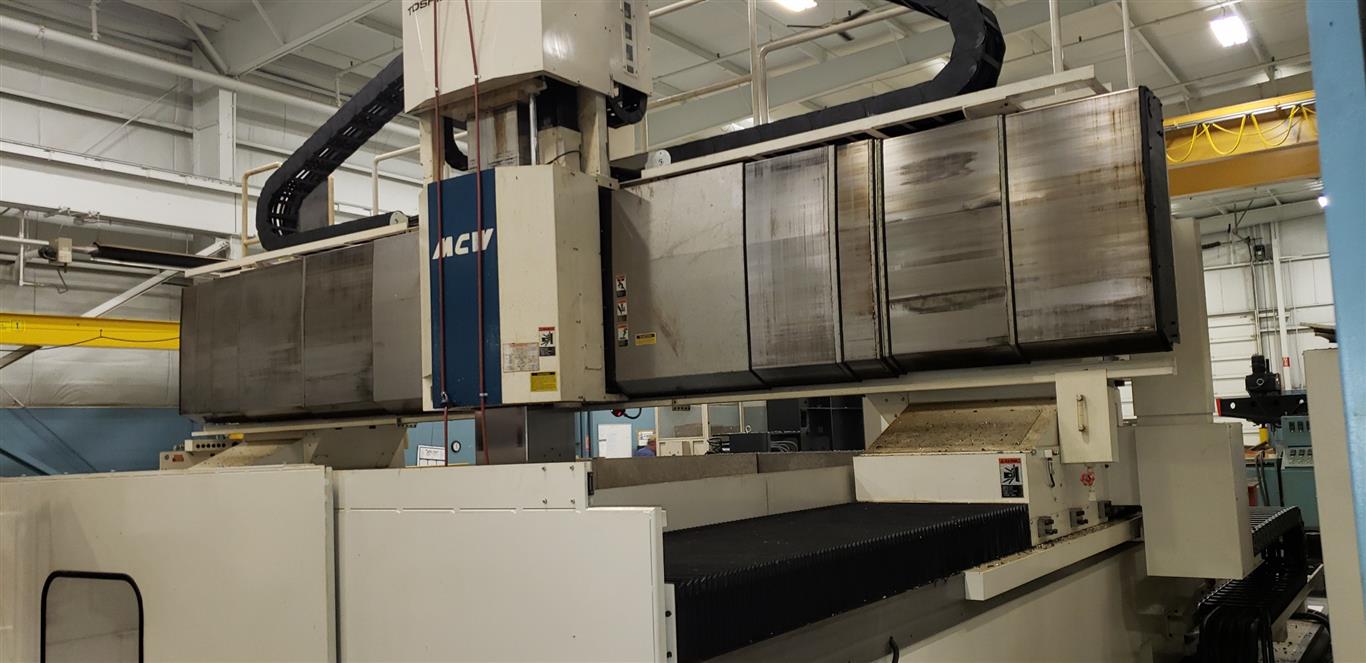

TOSHIBA (SHIBAURA) MCW-4624 CNC BRIDGE MILL
MCW-4624
Milling Machines
Bridge Mill, CNC
used
110230 (LB)
2011
$695,000.00

Description

Reference #:7497
Machine Type:
Year:2011/17

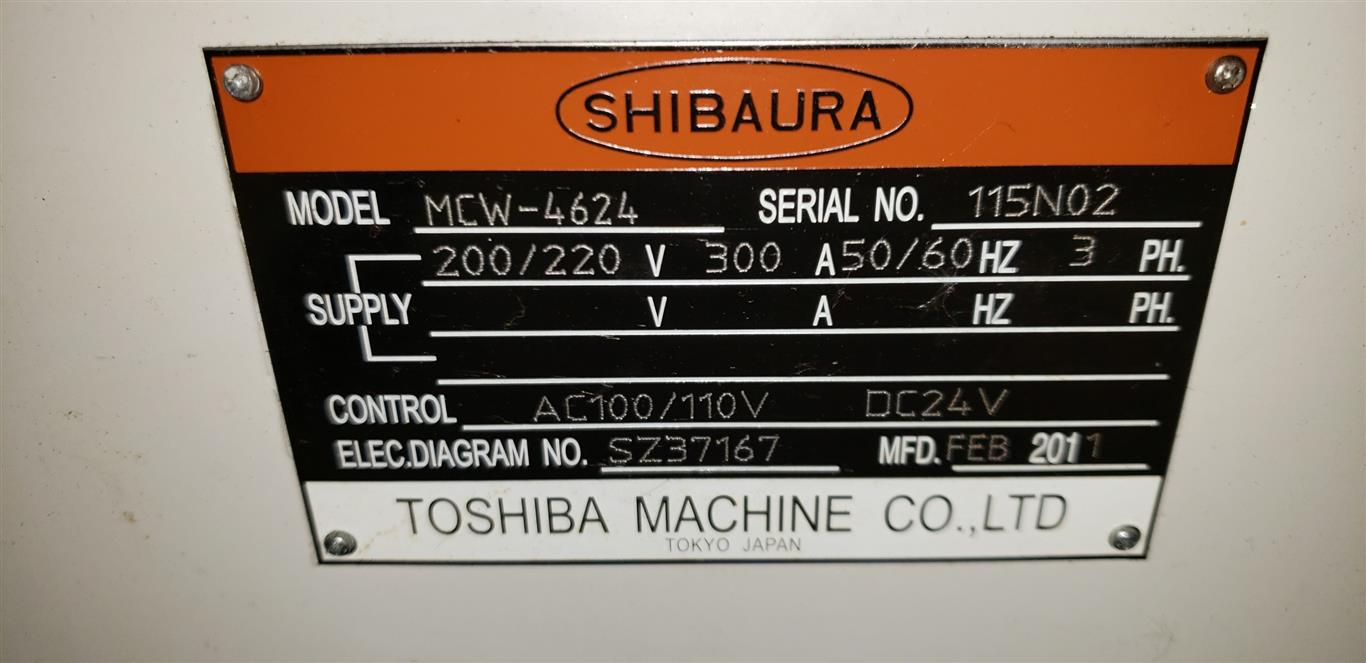

Manufacturer:Toshiba (Shibura)
Model:MCW-4624

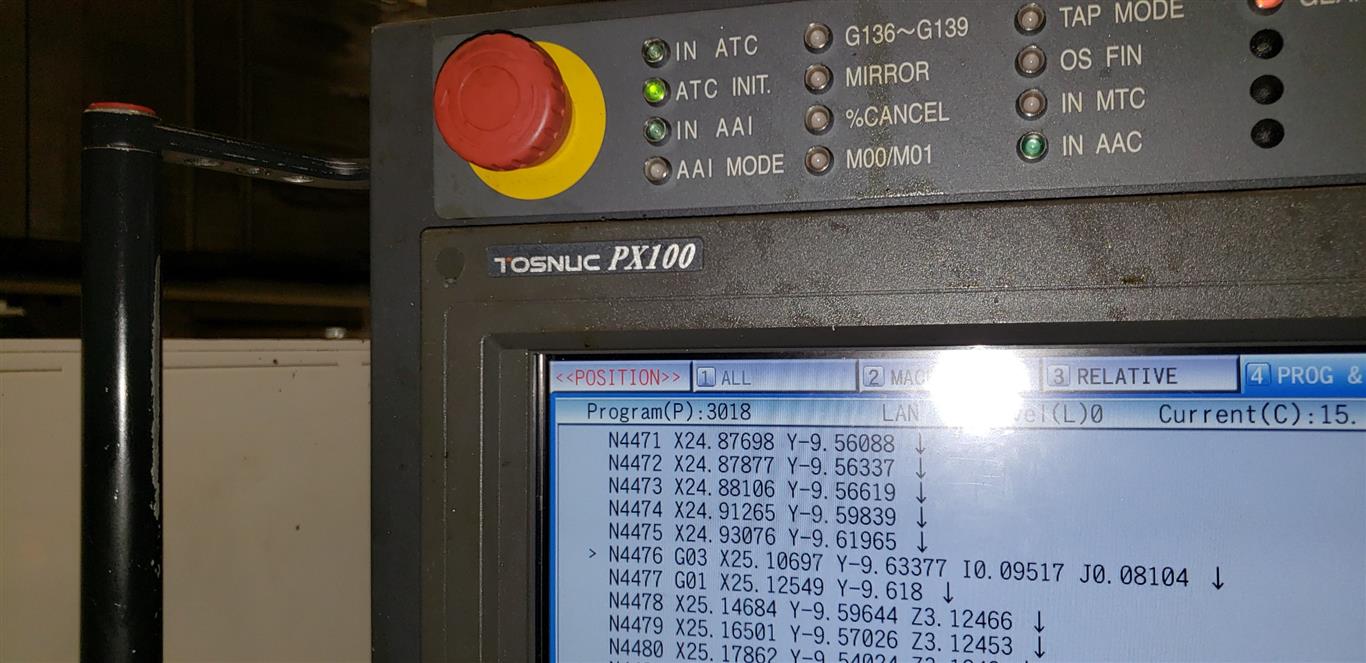

Control:Tosnuc PX100
Condition:Excellent
Under Power:Yes
Code:M0120

Travels:

  • X-axis travel (Bridge longitudinal direction): 137.8"
  • Y-axis travel (Spindle head crossw ise dir.): 145.7"
  • Z-axis travel (Ram vertical direction): 35.4"
  • Height (Table top to Gauge plane): 41.3"
  • Distance between wall columns: 180.3"

Spindle:

  • Spindle Speed: 30 ~ 4,000 RPM
  • Max. Torque: 1,127.8 Ft-lb
  • Spindle drive motor: AC40/29.5 HP
  • Taper on the spindle: 7/24 taper No. 50

Ram:

  • Guide for ram: Full closed mono-block
  • Sectional dimensions: 15" x 15"

Feed Rate:

  • Rapid traverse rate ( X / Y ): 984 Inches/min
  • Rapid traverse rate ( Z ): 393.7 inches/min
  • Feedrate for machining ( X / Y / Z ): 1 ~ 393.7 inches/min

Accuracy:

  • Positioning accuracy ( X / Y / Z ): +/- 0.00027/39.4"
  • Repeatability ( X / Y / Z ): +/-0.00012"

Floor Plate:

  • Floor plate size: 126" x 94.5"
  • Max. mass on floor plate: 2,048 Lbs/Ft2

Machine Size:

  • Machine height: 1 92.9"
  • Floor space: 310" x 323.7"
  • Mass of machine (including CNC system): 110,230 Lbs

Equipped With:

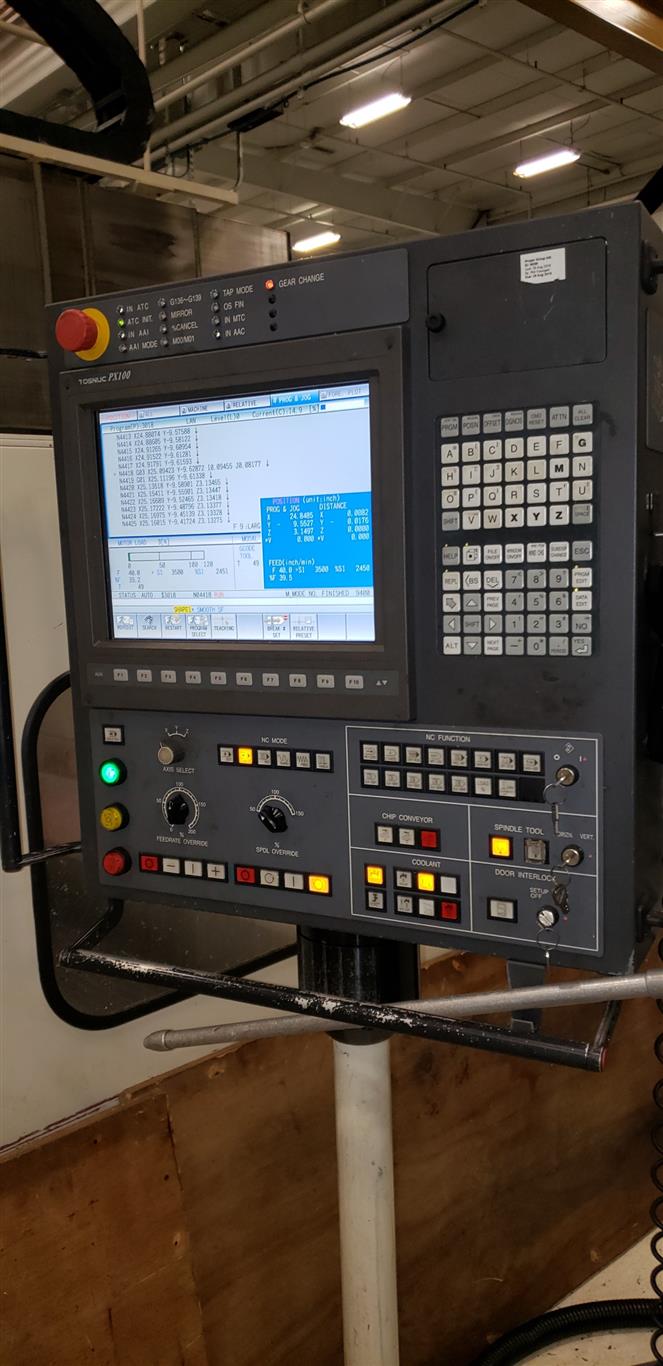

  • Tosnuc PX100 Control

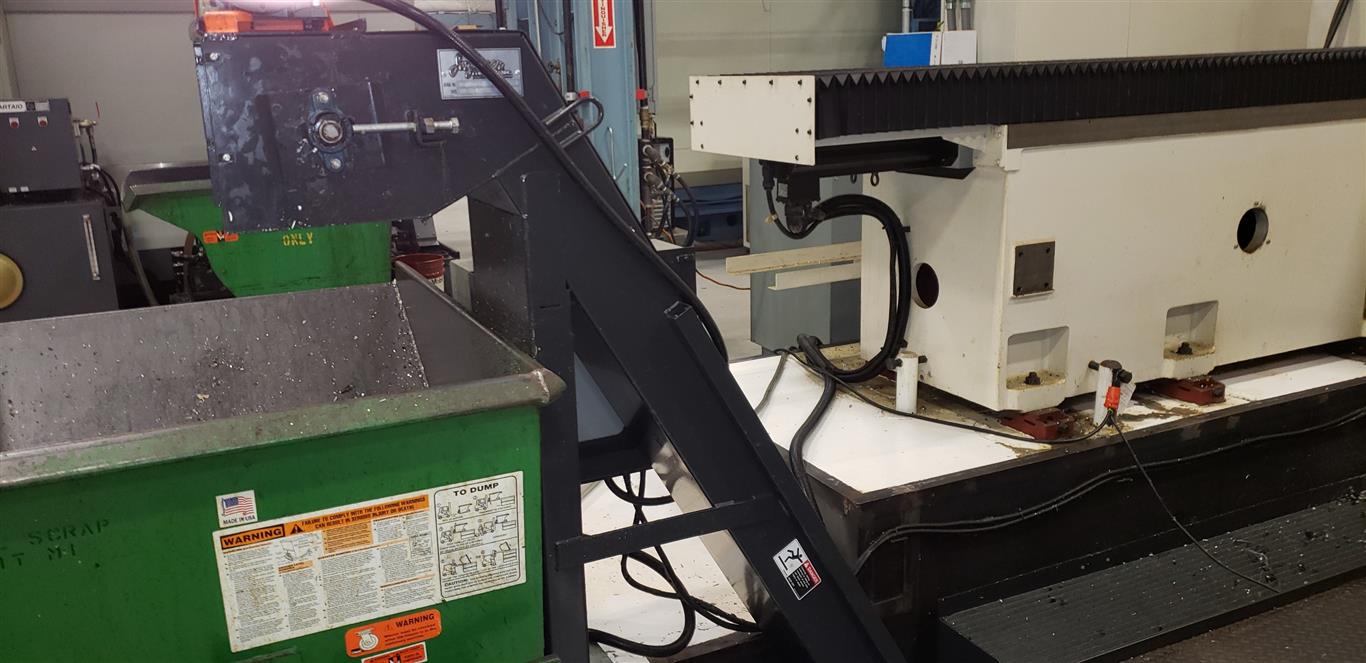

  • Chip Conveyor
  • 36 Position Automatic Tool Changer

Comments:

  • Quoted price is only assured until October 31, 2019
  • After that the price may change
  • Machine was built new in 2011, but was not installed until 2017

Price:

$695,000

Condition:

Excellent

Location:

MI
