Overview
Type: Horizontal Table Type Boring Mills
Manufacturer: TOSHIBA
Model: BTH 130 R24 CNC
Year: 2008
Stock #:1208
Status:For Sale

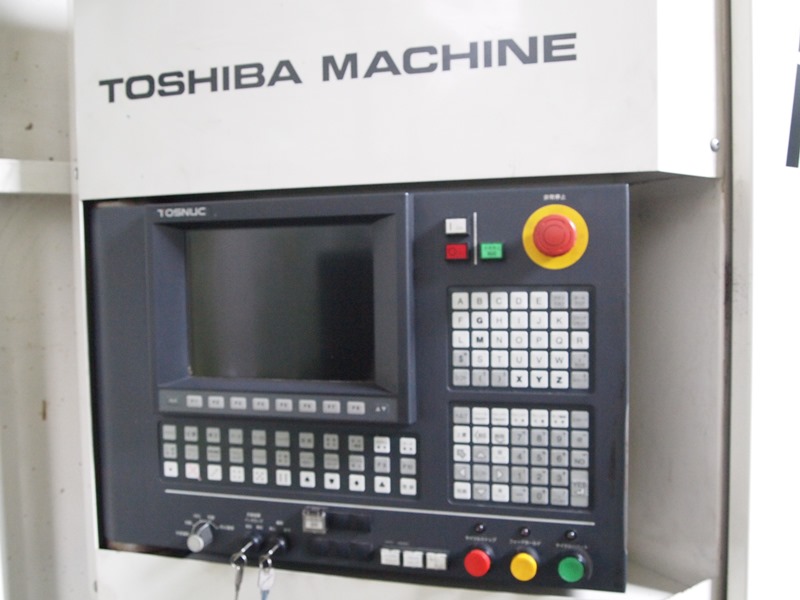

TOSHIBA BTH 130 R24 "HI CUBE" CNC HORIZONTAL BORING MILL FEATURES 78" X 95" TABLE WITH 0.0001 DEGREE INDEXING AND TOSNUC 999 CNC CONTROL
Spindle Size 5.1"
X-Horiz Tvl of Table 118"
Y-Vert Tvl of Head 91"
Power 40 hp
RPM 2,500 RPM
Table-W 78.7"
Table-L 95"
Spindle Tvl. 60"

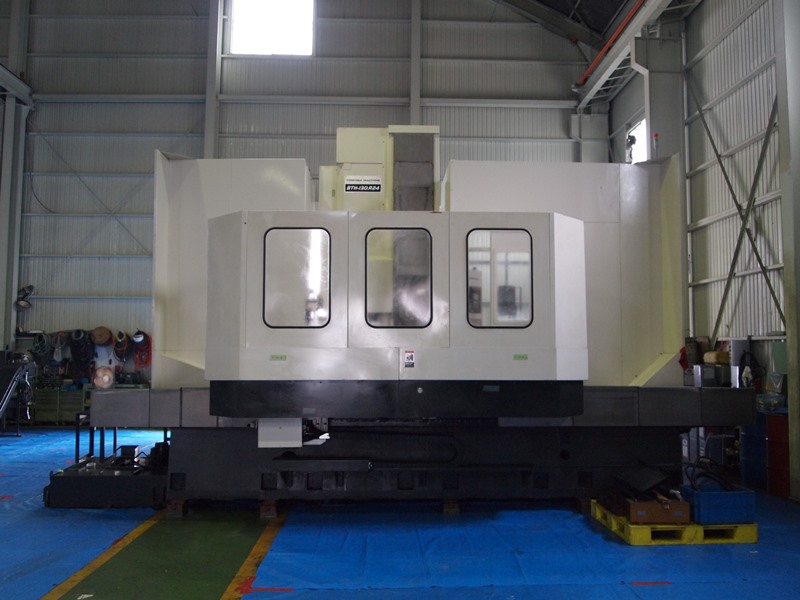

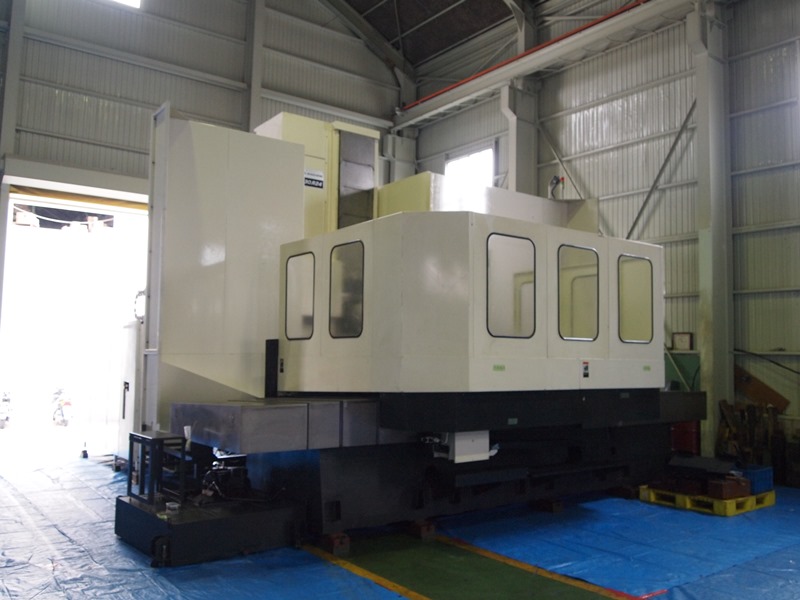

TOSHIBA BTH 130 R24 HORIZONTAL BORING MILL (2008)
BTH-130.R24
The BTH-130.R24 provides horizontal boring operation ability with machining centre productivity and flexibility.
Machine Specifications BTH-130.R24
Travel X-axis travel (Cross movement of table) mm (in) 3 000 (118)
Y-axis travel (Vertical movement of spindle head) mm (in) 2 300 (90.5)
Z-axis travel (Longitudinal movement of table) mm (in) 1 500 (60)
W-axis travel (Spindle extension) mm (in) 700 (28)
Distance from table surface to spindle center mm (in) 900 to 2 400 (35.4 to 95.4)
Distance from table center to milling spindle gauge plane mm (in) 0 to 2 300 (0 to 90.5)

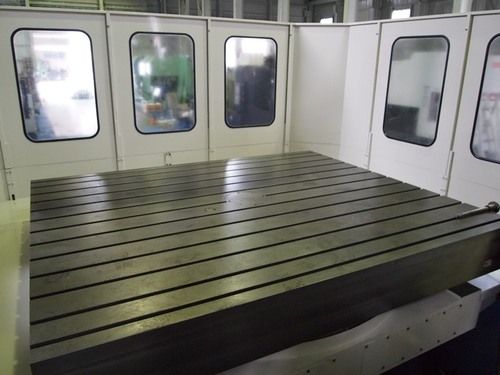

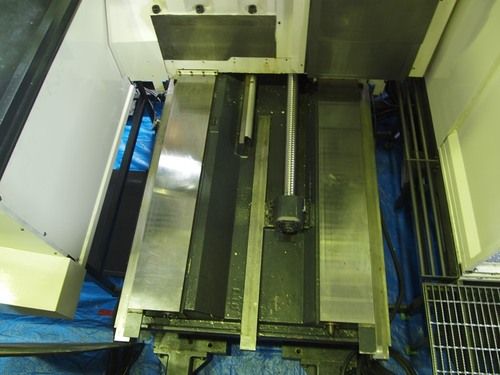

Table Table working surface mm (in) 2 000 x 2 400 (78.7 x 94.4)
Table loading capacity kg (lbs) 20 000 (44 000)
Table surface configuration (Pitch to T-slots 160 mm
(6.2 in), size 22 mm (0.86 in) 13 T-slots

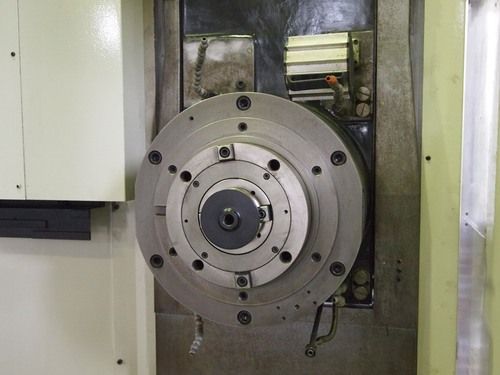

Minimum table indexing angle (B- axis) degrees 0.0001

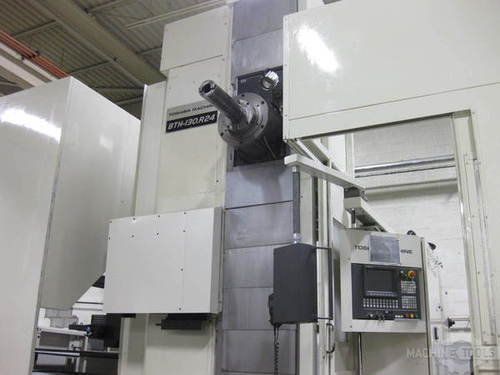

Spindle Spindle diameter mm (in) 130 (5.1)
Spindle speed range min-1 5 ~ 2 500 [6 ~ 4 000]
Feedrate Rapid traverse rate X, Y Z mm/min (ipm) 14 000 (551.1)
W mm/min (ipm) 5 000 (196.8)
B deg/min 500
Feedrate X, Y Z mm/min (ipm) 1 to 7 000 (0.04 to 275.5)

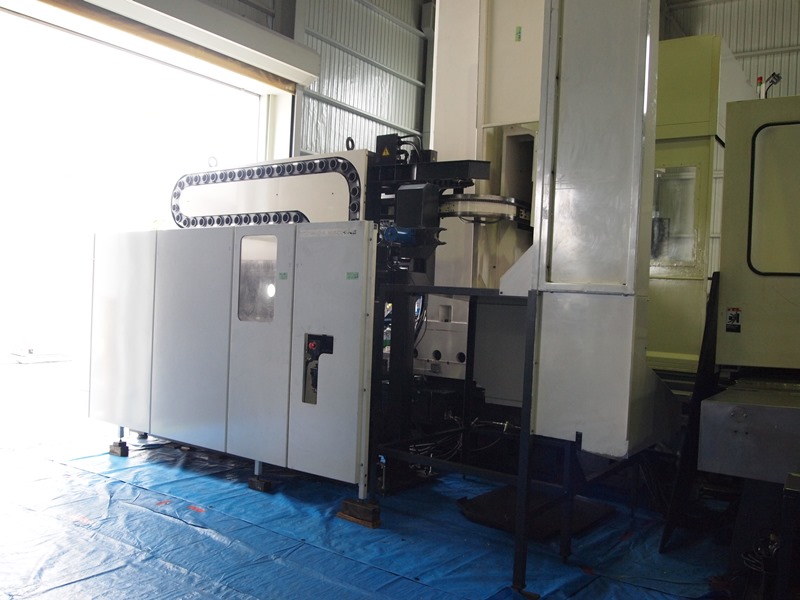

Automatic tool changer (ATC) Type of tool shank MAS BT50 (CAT50)
Tool storage capacity 38[60,90,120] tools
Spindle drive motor (30 min./cont. rating) kW (HP) AC22/18.5 (AC30/25)
[AC30/22 (AC40/30)]
Machine size Machine height mm (in) 5 060 (199.2)
Floor space mm (in) 7 250 x 6 950 (285.4 x 273.6)
Mass of machine (including NC equipment) kg (lbs) 45 000 (99 000)
Accuracy Positioning accuracy X, Y, Z mm/min (ipm) +/-0.016 (+/-0.00063)/full length
W mm/min (ipm) +/-0.012 (+/-0.00047)/full length
Repeatability X, Y, Z mm/min (ipm) +/-0.007 (+/-0.00027)
W mm/min (ipm) +/-0.008 (+/-0.00031)
Machine colour R4-383 (ivory white) and N2.5 (dark gray)
For the NC system, servo motors and cooler, each makers standard colour shall apply

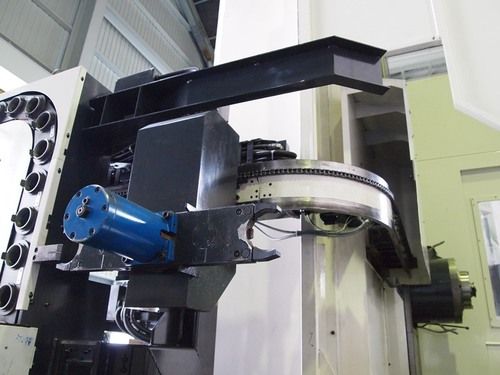

ATC Magazine capacity 120 tools
Taper BT50
Spindle speed 5 to 2,500 rpm
(Catalog specifications subject to revision)
