Type:
Horizontal Table Type Boring Mills
Manufacturer:
TOSHIBA
Model:
BTD-11ER16
Condition: Used - Good
Year: 1991
Stock #:1206
Status:For Sale
Very clean Toshiba 4.3" CNC boring mill, with TOSNUC 777.2 interactive CNC control.
Ways are in excellent condition. Price includes dismantling and loading
Spindle Size4.3"X
Horiz Tvl of Table 79" Y
Vert Tvl of Head 59"
Power 20 hp
RPM 2,500 RPM
Table W 63"
Table L 55"
Spindle Tvl. 19.7 in
Control CNC (TOSNUC 777.2)

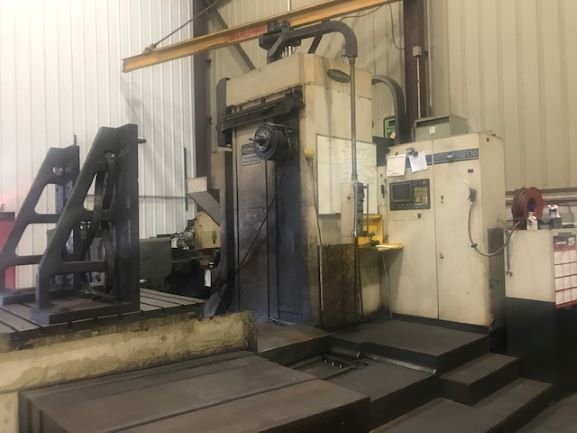

TOSHIBA BTD 11 ER 16 CNC HORIZONTAL BORING MILL
Machine features 4.33 in spindle, TOSNUC 777.2 interactive CNC control,
40 ATC, and B-axis rotary table
serial number 4217780 built 1991
catalog specifications subject to verification
Spindle diameter 4.33 in
Spindle taper CAT 50
Vertical travel of headstock (Y-axis) 59.05 in
Cross travel of table (X-axis) 78.74 in
Spindle bar travel (Z-axis) 19.68 in
Longitudinal travel of saddle (W-axis) 60 in
Spindle speeds (2 ranges) 2 to 2,500 rpm
Spindle drive motor 20 HP
Size of B-axis rotary table 55.12 x 63 in
Minimum input of table indexing 0.001 degree
Feed rates 1 to 157 ipm
Rapid traverse rate 394 ipm
Table load capacity 13,860 lbs.
Automatic Tool Changer capacity (ATC) 40
Condition good inspect under power; recent alignment report available
Price--$79,500 FOB Warren, Michigan
Thank you for your interest,
Nash Tool & Machine Supply, Inc.
Kenneth A. Nash

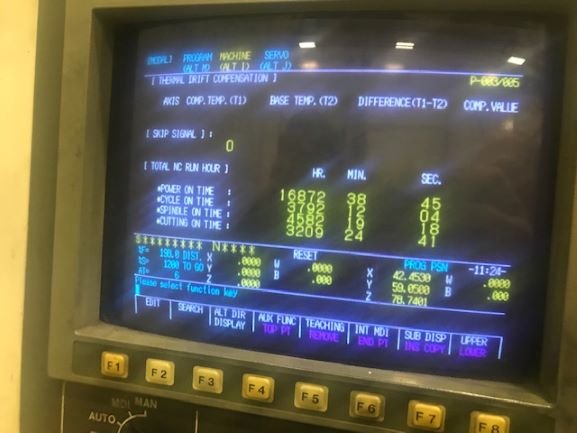

TOSNUC (Toshiba Numeric Control) 777.2 interactive CNC control

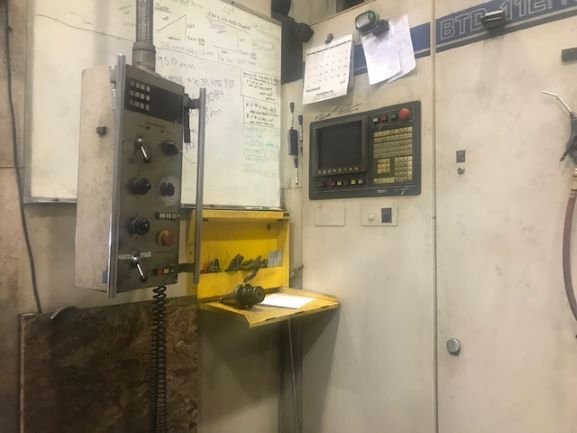

Full pendant operation with joystick control
Teach function
B-axis rotary table
Flood coolant system with chip conveyor
All ways hardened and ground
Way covers
Operation and electrical manuals
