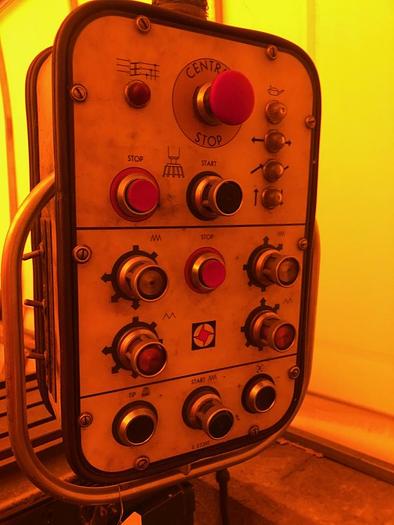

Description
SPECIFICATIONS:
EXTERNAL DIMENSIONS OF TABLE
WIDTH 17.7 in
78.7 in
MAX TABLE LOAD 2650 LBS
CLAMPING SLOTS IN TABLE
NUMBER 3
WIDTH 3/4
PITCH 3 1/8
TAPER IN SPINDLE ISO 50 (STANDARD)
LONGITUDINAL FEED TO TABLE
MANUAL 42.6 in
POWER 42.2
CROSS TRANSVERSE FEED TO TABLE
MANUAL 15.7
POWER 15.3
VERTICAL FEED TO TABLE
MANUAL 17 1/8
POWER 16 3/4
SPINDLE DIAMETER IN FRONT BEARING 4
TABLE SWIVELS TO EITHER SIDE THROUGH 45 deg
DISTANCE SPINDLE CENTRELINE TO TABLE
MAX. 19.7 in
MIN. 3.5
DISTANCE SPINDLE CENTRELINE TO BOTTOM SURFACE
OF ARM 6 1/8
DISTANCE SPINDLE NOSE TO OUTER SUPPORTING BEARING
SPINDLE WITH STEEP OR ASA TAPER 22 1/2
SPINDLE WITH MORSE TAPER 21 1/2
DISTANCE COLUMN GUIDEWAYS TO BEARING SUPPORT 27 3/8
RANGE OF 12 SPINDLE SPEEDS
STANDARD 18 to 1,400
RANGE OF 15 FEEDS
LONGITUDINALLY AND ACROSS 0.4 TO 49.2 IPM
VERTICALLY .1 TO 12.4 IPM
RAPID TRAVERSE
LONGITUDINALLY AND ACROSS 126/MIN
VERTICALLY 31.5/MIN
MAIN MOTOR FOR SPINDLE DRIVE
OUTPUT 20 HP
APROX. FLOOR SPACE REQUIRED
LENGTH 100
WIDTH 100
WEIGHT
APROX WEIGHT WITH STANDARD ACCESSORIES 8,000 LBS
COMPLETE WITH:
VERTICAL HEAD
Specifications
Condition Used
