36"/47" X 157" POREBA ( TOOLMEX ) HEAVY DUTY GAP BED LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Unknown
Lathes (Manual)
Engine Lathes
used
21300 (LB)
2000
$0.00

Description

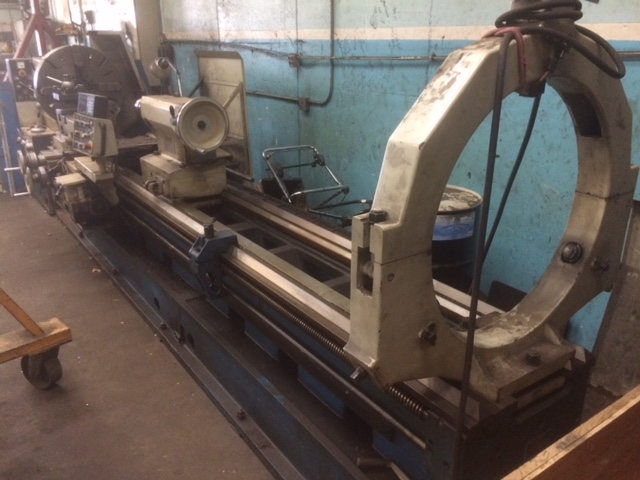

36"/47" X 157" POREBA ( TOOLMEX ) HEAVY DUTY GAP BED LATHE

MANUFACTURED NEW 2000

STOCK# 60503


SWING OVER BED ---------------------------- 36.5"
SWING OVER CROSS SLIDE -------------------- 24.8"
SWING IN GAP ------------------------------ 47.25"
LENGTH OF GAP ----------------------------- 22.4"
DISTANCE BETWEEN CENTERS ------------------ 157"
SPINDLE SPEEDS ----------- ( 21 ) --------- 9 TO 900 RPM
SPINDLE NOSE ------------------------------ A1-15"
SPINDLE BORE ------------------------------ 3.75"

MAXIMUM LOAD CAPACITY:
  BETWEEN CENTERS ------------------------- 13,200 LBS.
  BETWEEN CENTERS AND 1 STEADY ------------ 16,700 LBS.
FEED RANGE, LONGITUDINAL -- ( 70 ) -------- .0043 TO .5 IPR
FEED RANGE, CROSS --------- ( 70 ) -------- .0021 TO .250 IPR
THREAD RANGE, INCH -------- ( 56 ) -------- 1/4 TO 30 TPI
THREAD RANGE, METRIC ------ ( 62 ) -------- 1 TO 120 MM/REV.

TAILSTOCK QUILL ----------- ( 2 SPEED ) --- 1:1 AND 1:5 RATIO
MAIN DRIVE MOTOR ---------- ( 2 SPEED ) --- 35 / 20 HP


EQUIPPED WITH ---

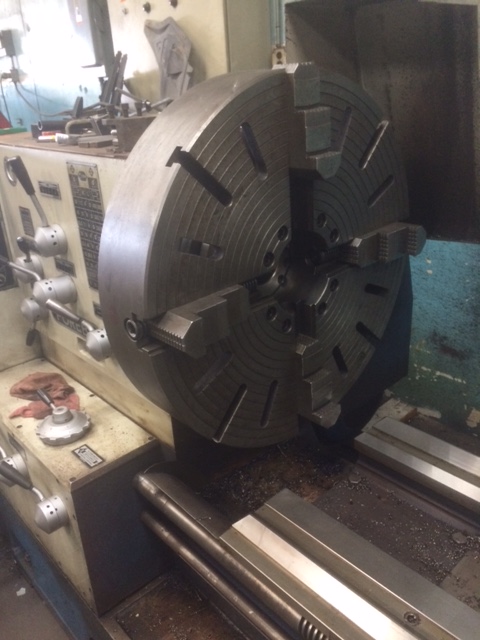

32" 4 JAW CHUCK                          TAPER ATTACHMENT

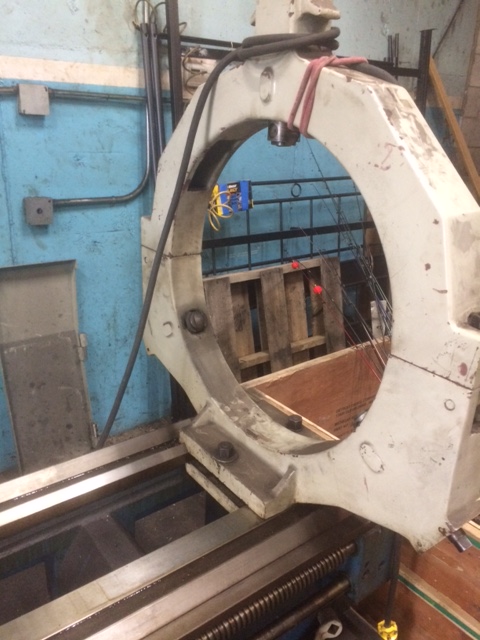

3 POINT ROLLER STEADY REST, 29" CAP.     THREADING DIAL

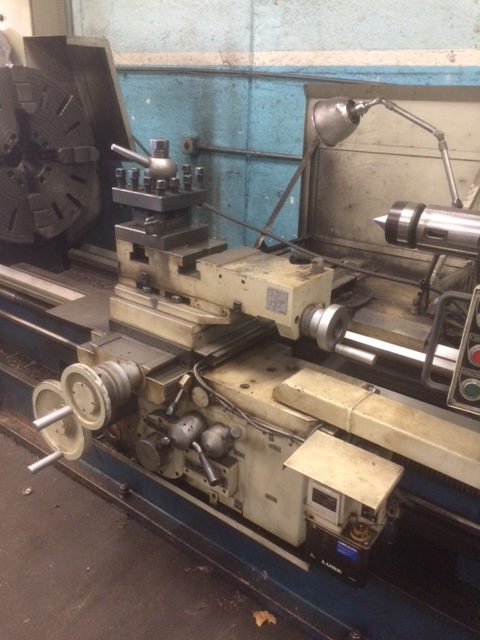

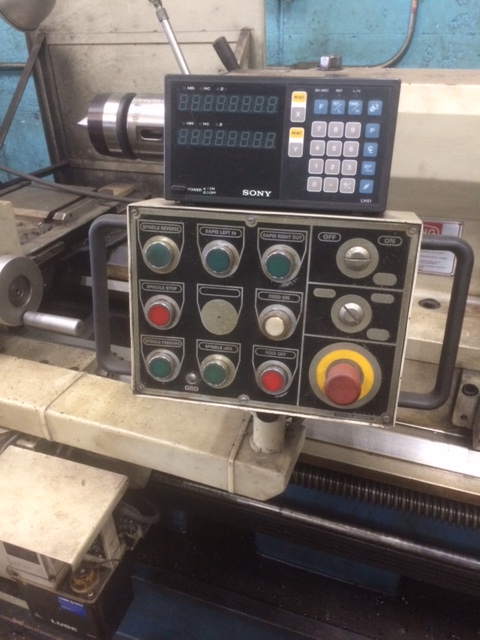

SONY 2 AXIS DIGITAL READOUT SYSTEM       4 WAY TOOL POST
POWER RAPID TRAVERSE                     COOLANT SYSTEM

Weight : 21300
Dimension (IN) : N/A
