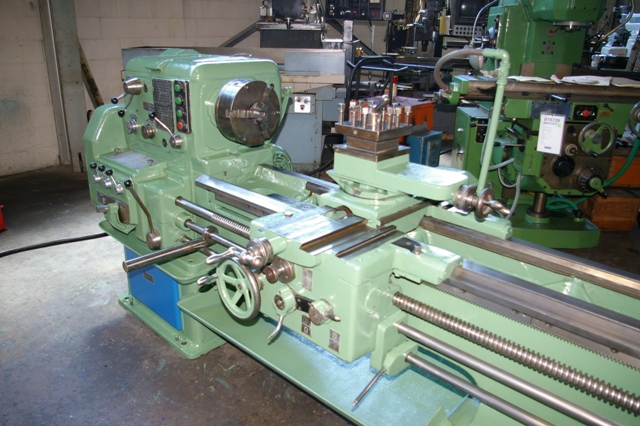

21" X 100" TARNOW ( TOOLMEX ) GAP BED LATHE
MODEL TUJ48P
SWING OVER BED ---------------------------- 21"
SWING IN REMOVABLE GAP -------------------- 28"
SWING OVER CROSS SLIDE -------------------- 12"
DISTANCE BETWEEN CENTERS ------------------ 100"
LENGTH IN GAP FROM SPINDLE NOSE ----------- 11"
SPEEDS ---------- ( 16 ) ------------------ 22 TO 1120 RPM
SPINDLE BORE ------------------------------ 1-15/16"
THREADS, INCH --- ( 35 ) ------------------ 1 TO 28 TPI
THREADS, METRIC - ( 38 ) ------------------ 0.4 TO 28 MM
FEEDS ----------- ( 28 ) ------------------ .0036 TO .056 IPR
MAIN DRIVE MOTOR, 2 SPEED ----------------- 9/5.4 HP
PRESENT ELECTRICAL ARRANGEMENT ------------ 380/3/50
EQUIPPED WITH ---
SQUARE TURRET TOOL POST
10" 3 JAW CHUCK
CHIP PAN
COOLANT PUMP
STOCK# 17439
