TAKUMI SEIKI V11A CNC VERTICAL MACHINING CENTER W/ MITSUBISHI 520AM W/ 4TH AXIS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


V11A
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
16500 (LB)
0
$44,500.00

Description

MACHINE FEATURE & CONSTRUCTION:



*  Four (4) Box - Slideway System Eliminating Overhang For Maximum Table Support

*  Hardened And Ground Box Way Construction For Superior Rigidity

*  Large 1.97. Ballscrew Diameter

*  6,000 RPM Spindle Yields A Combination Of Speed And Torque Well Suited For A Broad Range Of Machining Applications

*  A Standard Spindle Oil Cooler System Maintains Constant Temperature Throughout The Spindle Housing

*  Swing Arm Cam-Type Automatic Tool Changer Has A Quick 2-1/2 Second Tool Change Time



SPECIFICATIONS:



*  Ball Screw Diameter                                                       1.97 in

*  X-Axis Travel                                                                   43 in

*  Y-Axis Travel                                                                   22 in

*  Z-Axis Travel                                                                    25.6 in

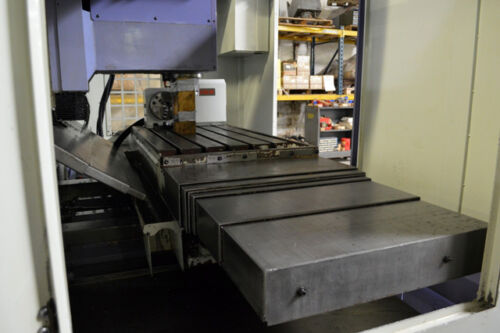

*  Table Size                                                                        53 in x 20 in

*  Spindle Center To Column                                               22 in

*  Spindle Nose To Table                                                     5.9 in - 31.5 in

*  Table Load                                                                       1,760 lbs.

*  T-Slots                                                                              .7 in x 5 in x 3.94 in

*  Spindle                                                                              Cat 40

SPECIFICATIONS: (CONT.)



*  Spindle Speed                                                                   60-6,000 RPM

*  Spindle Motor                                                                   15 Hp

*  Rapid Travel:

*  X-Axis                                                                                    472 IPM

*  Y-Axis                                                                                    472 IPM

*  Z-Axis                                                                                    394 IPM

*  Cutting Feed Rate:

*  X-Axis                                                                                    236 IPM

*  Y-Axis                                                                                    236 IPM

*  Z-Axis                                                                                    236 IPM

*  Feed Increments:

*  X, Y, And Z                                                               0.0254 in

*  Accuracy:

*  X,Y, And Z-Axis Repeatability                                 * 0.00019 in

*  X,Y, And Z-Axis Positioning                                     * 0.0001 in

*  Ball Screw Class                                                         C-3

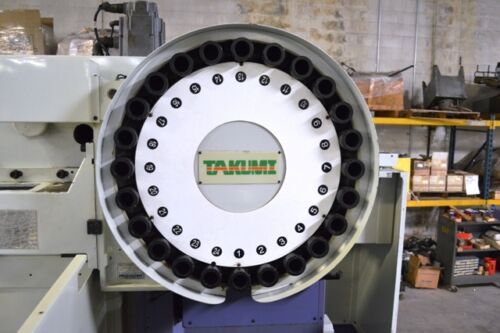

*  Tool Changer:

*  Capacity                                                                      24 Tool (Arm Type)

*  Type                                                                            Cat 40

*  Tool Weight Max                                                         17.6 lbs.

*  Tool Diameter Max                                                      3.55 in

*  Tool Diameter Max (Adjacent Pot Empty)                   7.1 in

*  Tool Change Time                                                       2-1/2 Seconds

*  Weight And Dimensions:

*  Net Machine Weight                                                   16,500 lbs.

*  Floor Space                                                                143.4 in W x 108.4 in H x 131.6 in L

*  Electrical Requirements:

*  Voltage                                                                       220-Volt

*  Transformer May Be Required For Voltages

Under 200 Or Over 230

*  AC/3-Phase                                                                 20KVA/50A

*  Air Requirement                                                                85 PSI



STANDARD EQUIPMENT:



*  Spindle Oil Cooler

*  Coolant System

*  Tool Box

*  Air Blast Device

*  Rear Spiral Conveyor And Flush Coolant

*  Front Spiral Chip Conveyor

*  MPG Box (Manual Pulse Generator)

*  Fully Enclosed Guarding

STANDARD EQUIPMENT:



*  CE Specifications (Meets International Industrial Safety Standards)

*  Heat Exchanger For Electrical Cabinet

*  Rigid Tapping

*  RS-232 Interface

*  160 Meters Memory



ACCESSORIES INCLUDED:

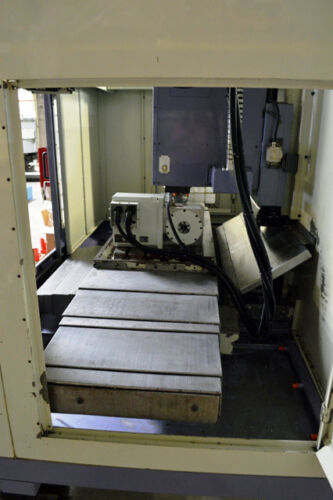

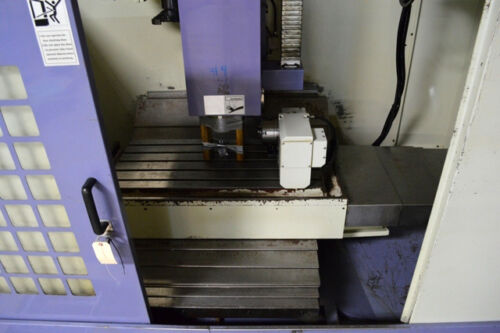

-          CNC-170 6.6 in CNC 4th Axis Rotary Table With Tailstock
