Year of Manufacture Machine 1995 / Control updated 11/2015

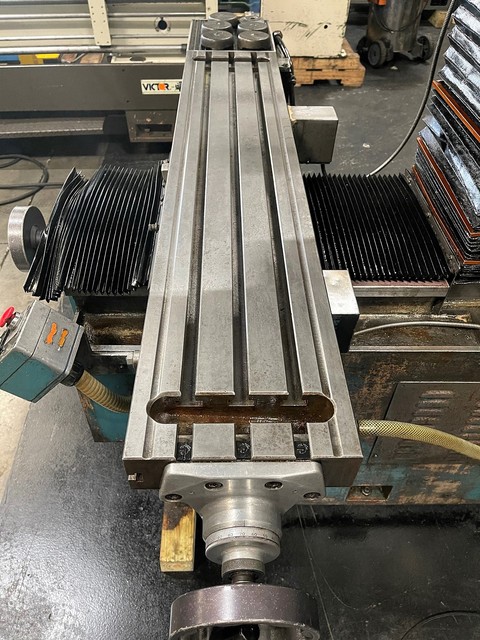

Overall size of t-slotted table 10" x 50"
Longitudinal (X) 31"
Cross (Y) 17"
Head (Z) 23.5"
Quill 5"
Maximum table load 1,320 Lbs.
Spindle taper #40 N.S.T.

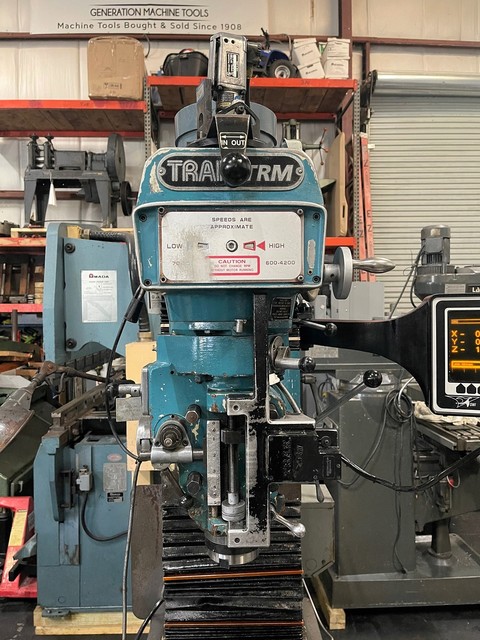

Infinitely variable spindle speeds to 70 to 4,200 R.P.M.
(3) Quill feeds .002, .004, & .006 I.P.R.
Head swivel, left and right of zero to 90 deg
Maximum/Minimum distance spindle nose to table 24 in/0 in
Distance, spindle center to column face 17.3 in
CHARACTERISTICS:
Equipped With:

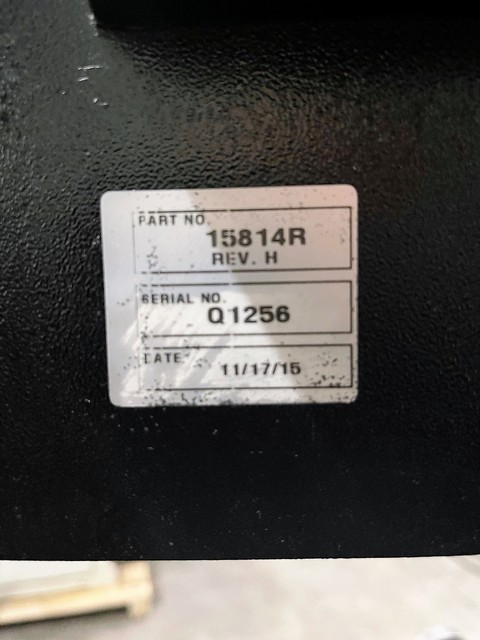

#MX2 TRAK two-axis CNC control / Updates 11/2015
-three-axis digital readout in manual mode
-9" CRT
-floppy disc drive
-RS 232 port
-remote Stop/Go switch
Two-axis CNC machining or handwheels for manual operation
Pneumatic draw bar
Precision ball screws and AC servo drives for X & Y axes
Quill has Z axis Display for positioning
Hardened and ground square box ways
Telescoping way covers
CHEN YING lubrication system

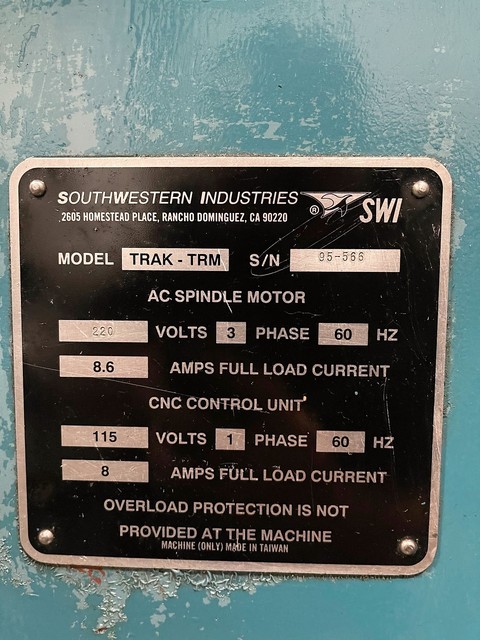

3 H.P. 3/60/220-440 volt spindle drive motor and electrical controls
Machine is wired for 220 volt operation.
Approximate Weight (Machine Only): 4,200 Lbs.
APPROXIMATE DIMENSIONS: 68 in W x 64 in L x 98 in H
PRICE: $5,950
