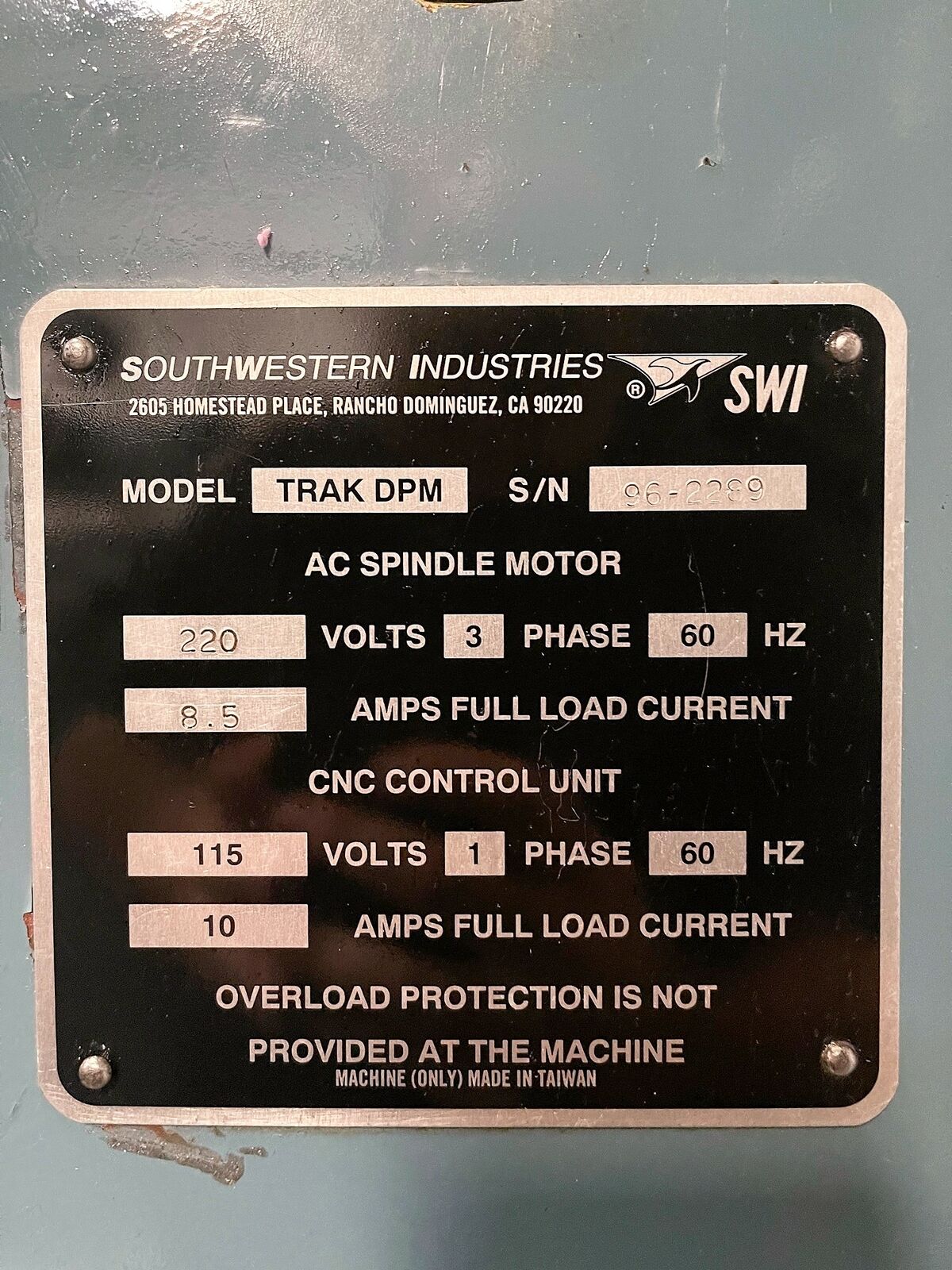

Reference #
GMT-2589
Model #
DPM
Serial #
96-2289
Year of manufacture
1996
Capacity-
Drilling, mild steel
1-1/2 in
Tapping
1-1/4 in
Milling
3"
Boring
4-3/4 in
Table working surface
10 in x 50 in
Number of t-slots
(3)
Maximum weight of workpiece
1,320 Lbs.
Longitudinal travel (X)
31"
Cross travel (Y)
17"
Head (Z)
23.5"
Quill travel
5"
Minimum/Maximum distance, spindle nose gage line to table
0 in/24 in
Distance, centerline of spindle to face of column
17.3"
Maximum uniform table load
1,320 Lbs.
(3) Power quill feeds
.002, .004, .006 I.P.M.
Infinitely variable spindle speeds, manually controlled
70 to 4,200 R.P.M.
Spindle taper
#40 N.S.T.

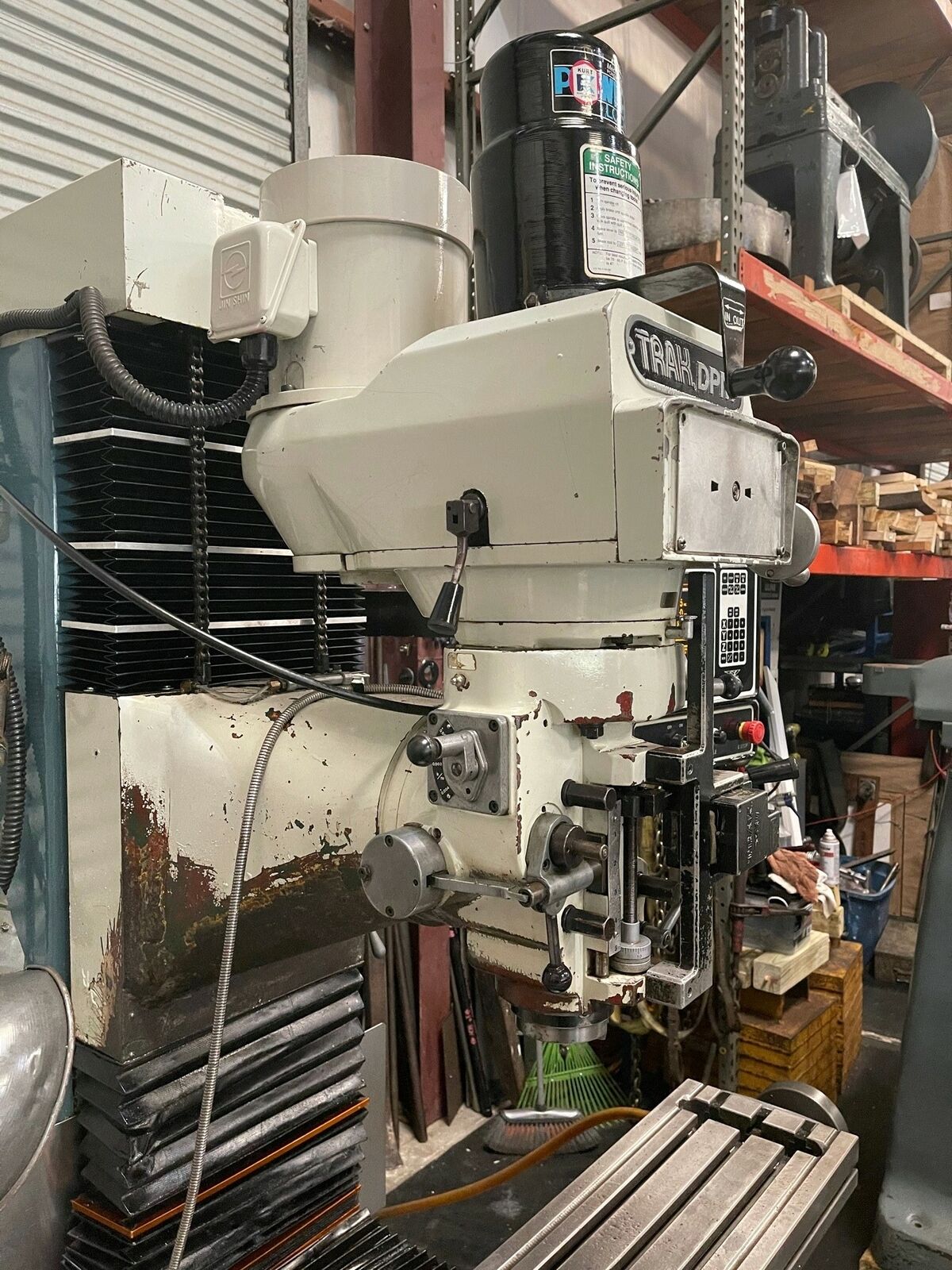

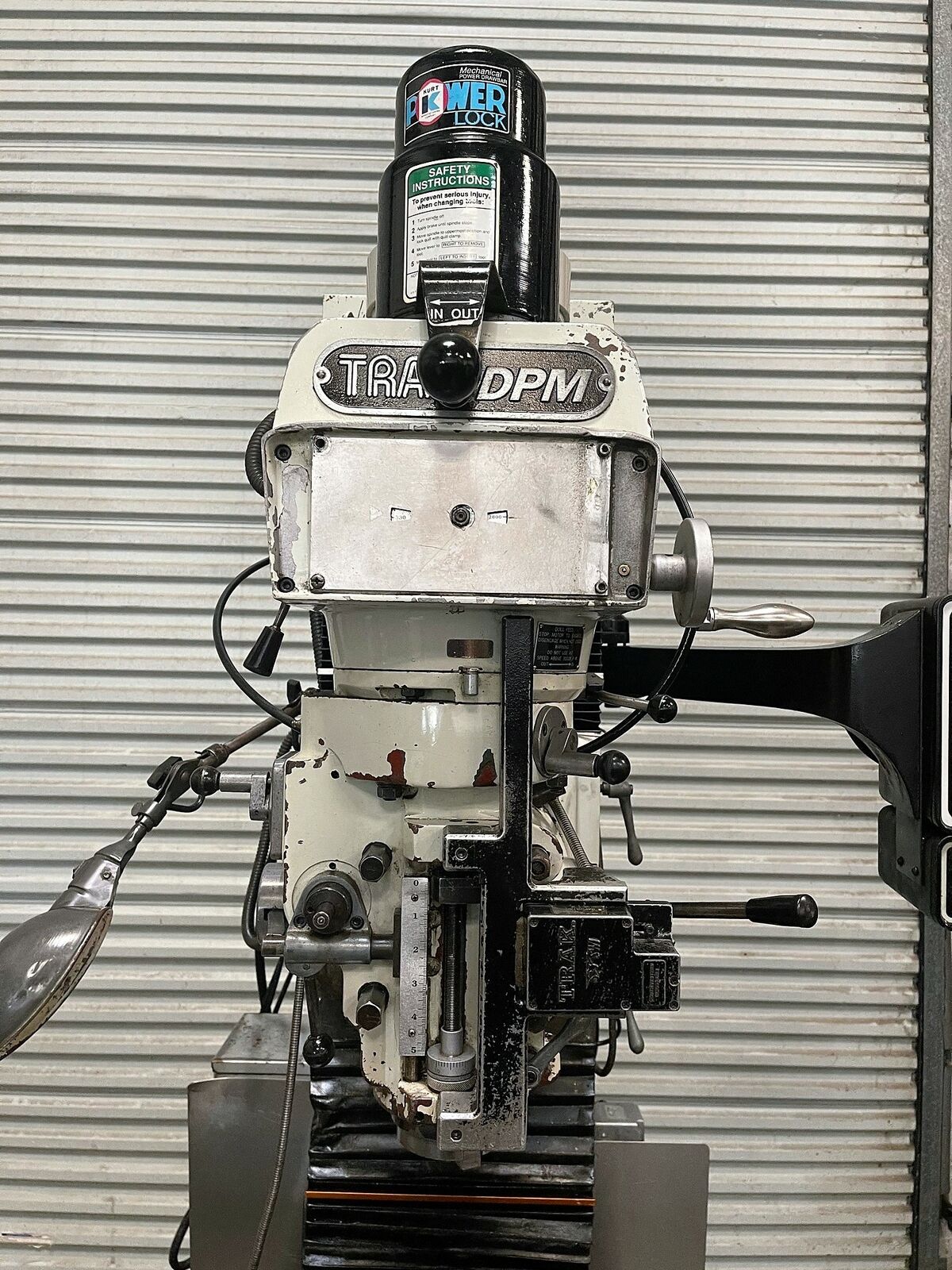

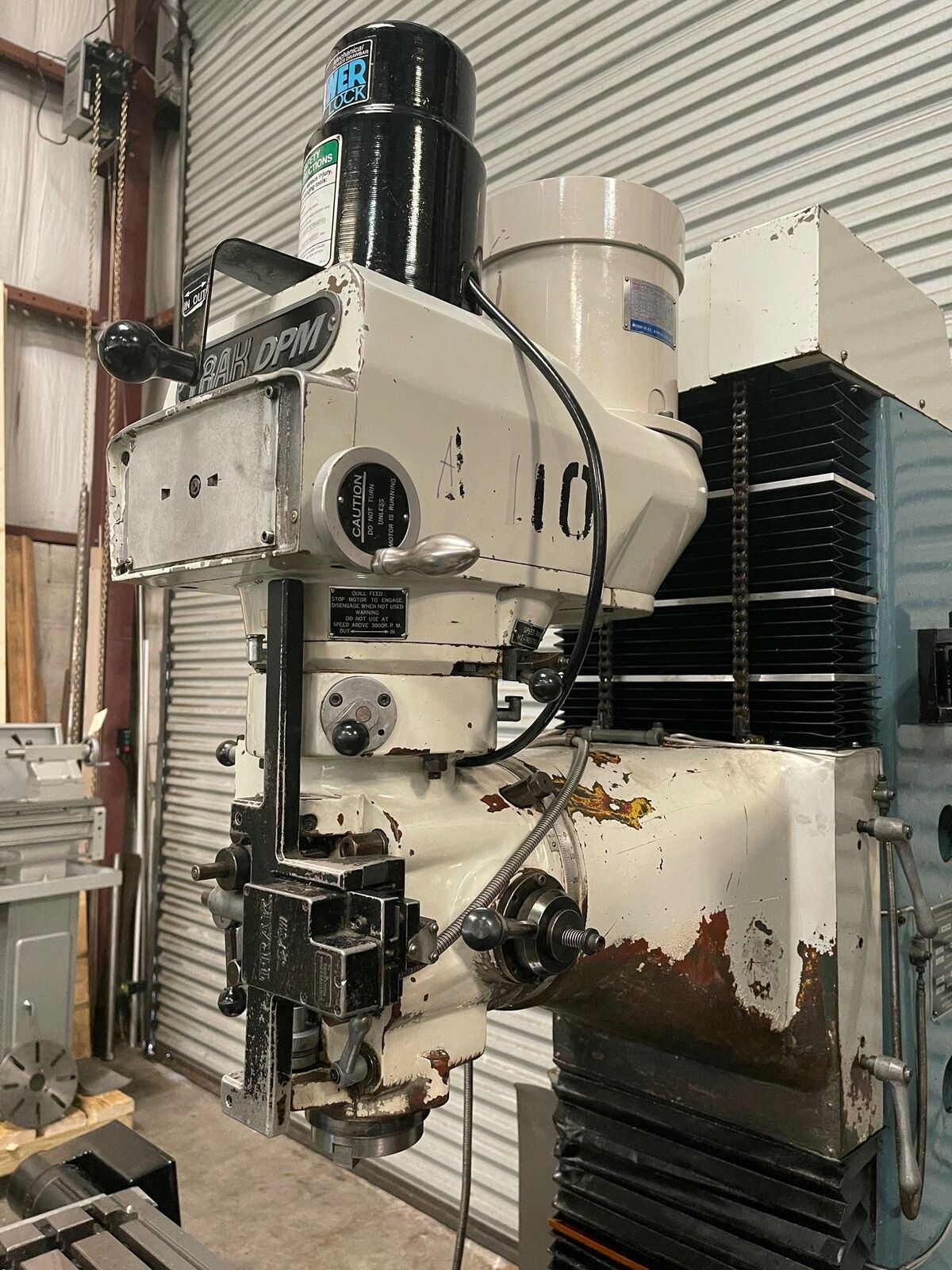

Milling head swivels right and left
90 deg

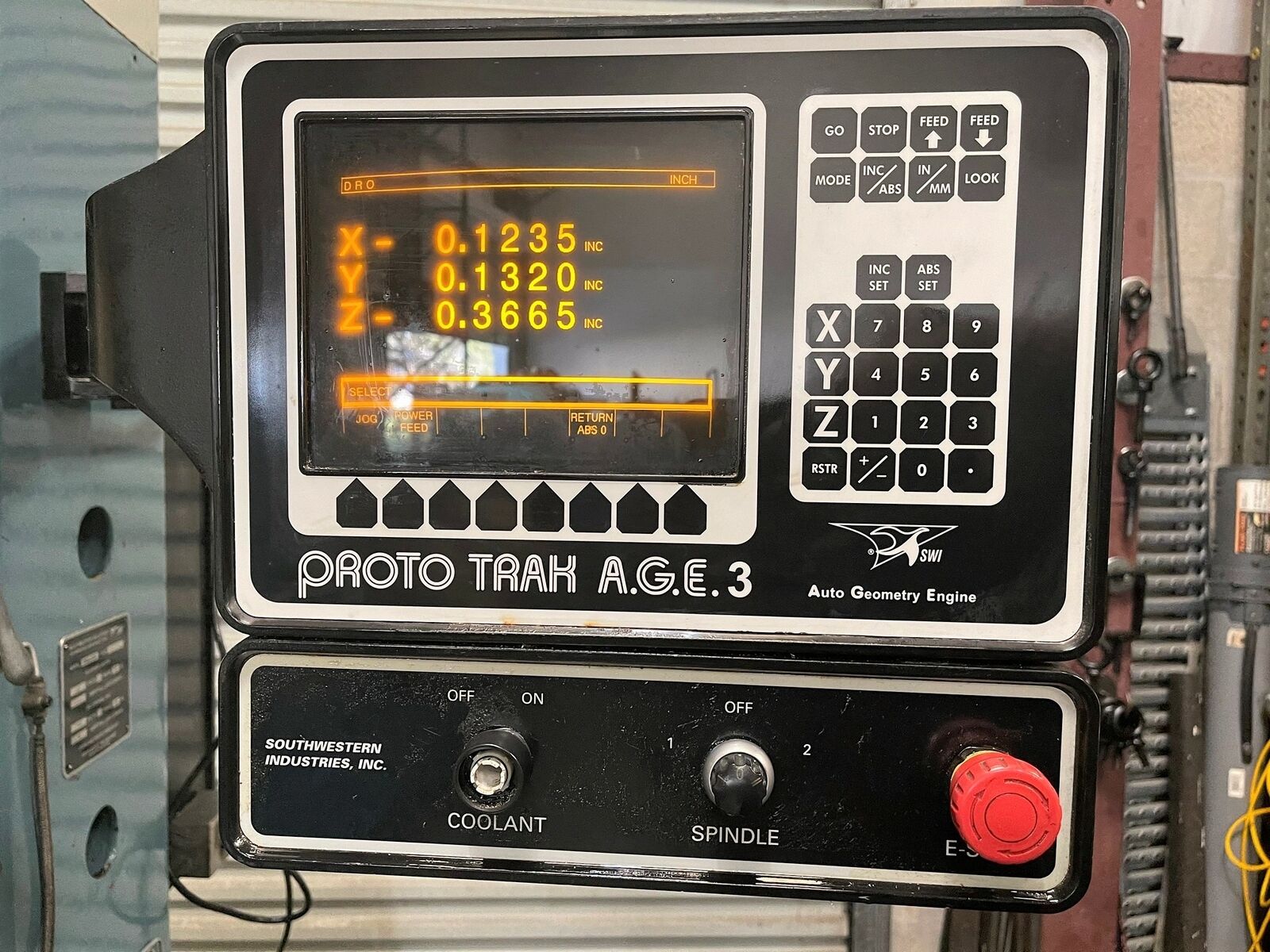

TRAK A.G.E. 3 three-axis CNC
-three-axis digital readout in manual mode
-dual floppy disc drives
-RS 232 port
Full three-axis CNC machining or handwheels for manual operation
Pneumatic power drawbar
Precision and ground ball screws installed in table, saddle, and column
Telescoping way covers
Automatic lubrication system
Self-contained flood coolant system
Leveling pads
3 H.P. spindle drive motor and electrical controls
Machine is wired for 220 operation.
4100 Lbs.
71 in L x 71 in W x 84 in H
F.O.B Bradenton, FL
CNC Vertical Mills-GMT-1566

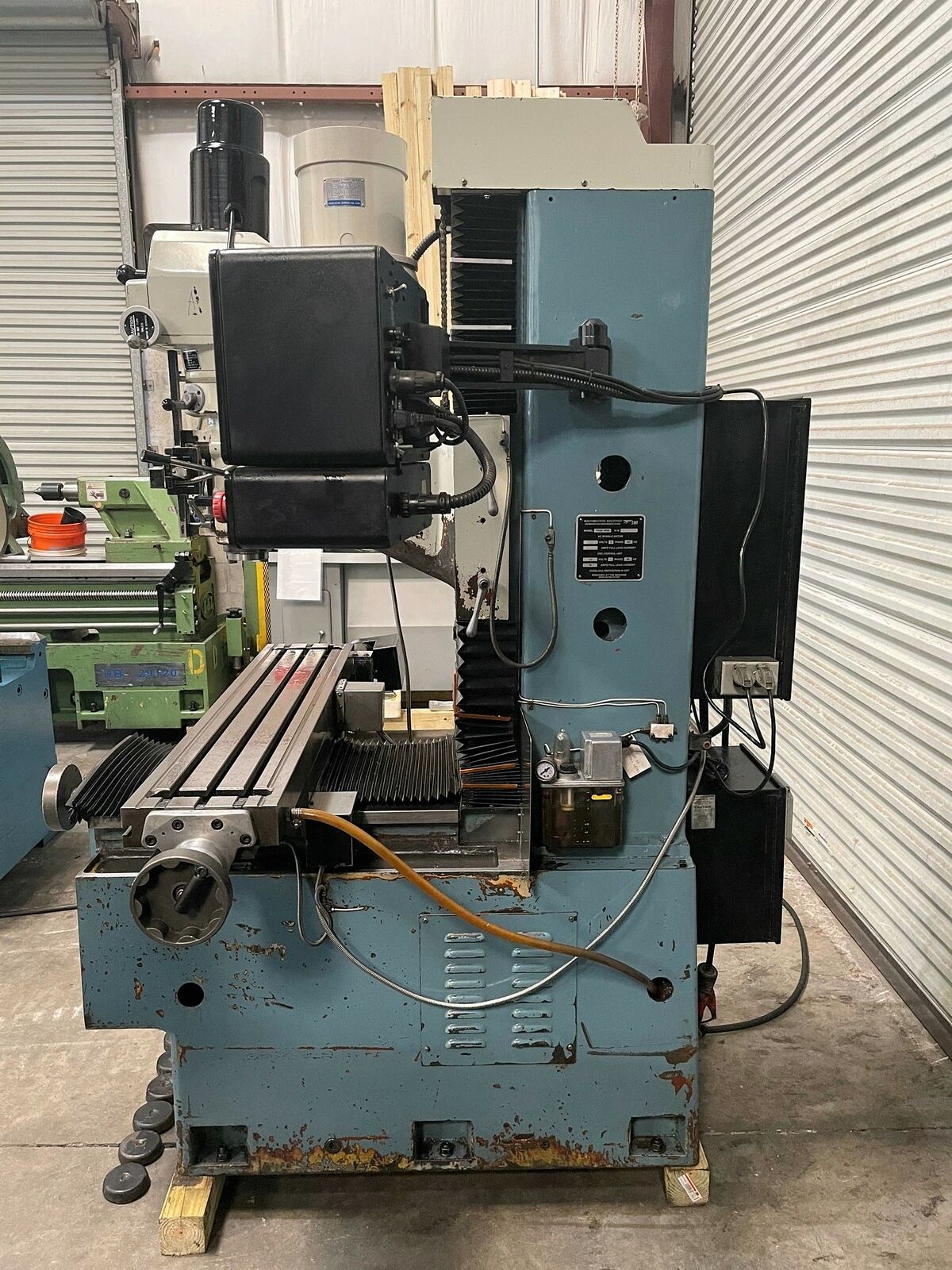

To view more information on the SWI TRAK #DPM CNC VERTICAL MILLING MACHINE 3 AXIS PROTO TRAK 1997’ #GMT-2589, including reviews, brand information, photos, videos, and more,
