SPECIFICATIONS:

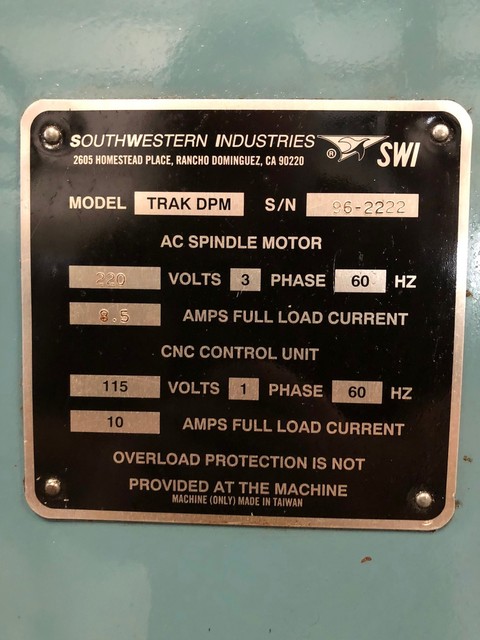

Reference # GMT-1750 Model # DPM
Serial # 96-2222
Year of manufacture 1996
Capacity: Drilling, mild steel 1-1/2 in Tapping 1-1/4 in Milling 3 in Boring 4-3/4 in

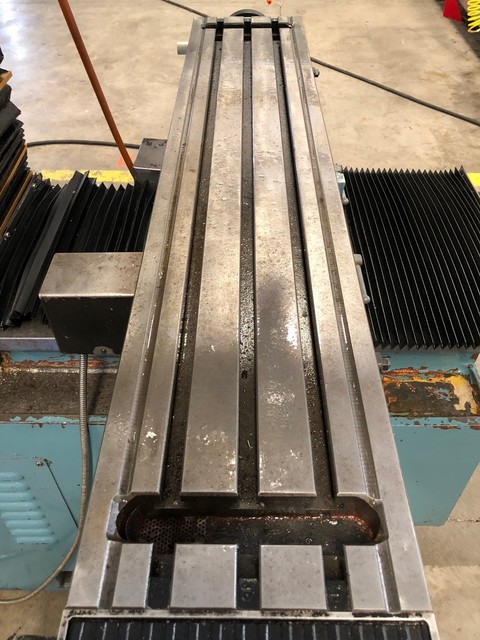

Table working surface 10 in x 50 in Number of t-slots (3)
Maximum weight of workpiece 1,320 Lbs.
Longitudinal travel (X) 31 in Cross travel (Y) 17 in Head (Z) 23.5 in Quill travel 5 in
Minimum/Maximum distance, spindle nose gage line to table 0 in/24 in
Distance, centerline of spindle to face of column 17.3 in
Maximum uniform table load 1,320 Lbs.
(3) Power quill feeds .002, .004, .006 I.P.M.

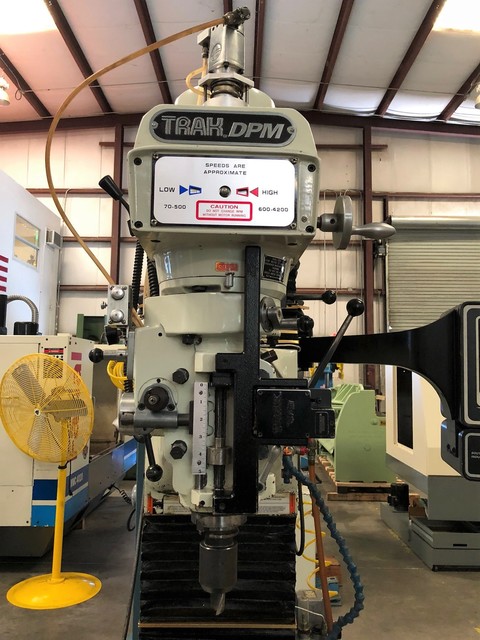

Infinitely variable spindle speeds, manually controlled 70 to 4,200 R.P.M.
Spindle taper #40 N.S.T.
Milling head swivels right and left 90 dgrees
EQUIPPED WITH:

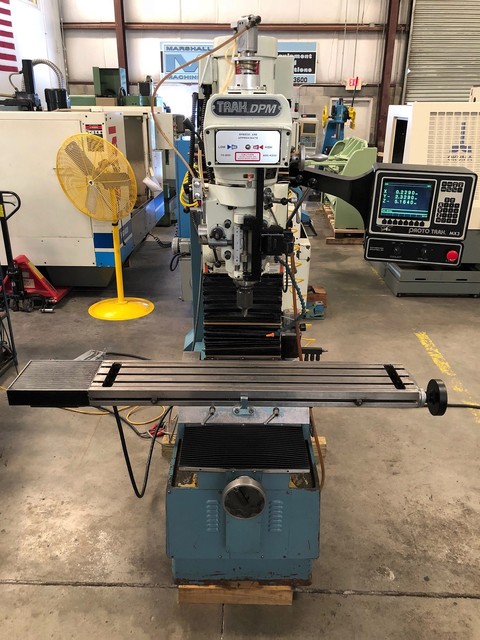

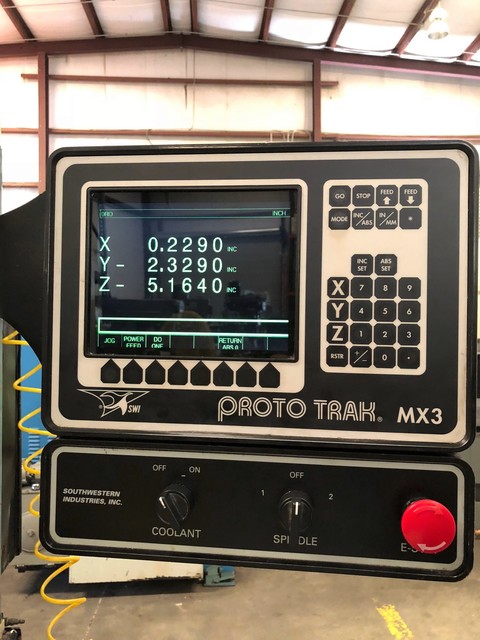

TRAK MX3 three-axis CNC -Three-axis digital readout in manual mode -9 in LCD Upgraded Screen replaced 12/2018 -Dual floppy disc drives -RS 232 port Full three-axis CNC machining or handwheels for manual operation

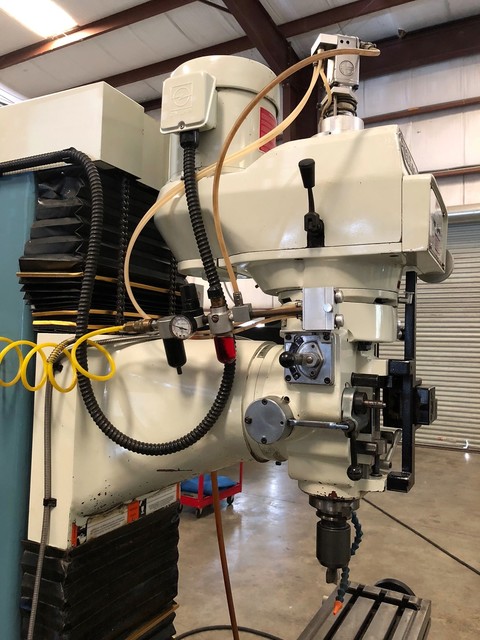

Pneumatic power drawbar
Precision and ground ball screws installed in table, saddle, and column
Telescoping way covers
Automatic lubrication system
Self-contained flood coolant system
3 H.P. spindle drive motor and electrical controls Machine is wired for 220 operation.
APPROXIMATE WEIGHT (MACHINE ONLY): 4,100 Lbs.
APPROXIMATE DIMENSIONS: 71 in L x 71 in W x 84 in H
LOCATION: F.O.B. Bradenton, Florida
REFERENCE #: CNC Vertical Mills-GMT-747
PRICE #: $14,500.00
