Specifications:
Model G32P-100NC
Serial number GD07009
Year of manufacture June, 2007
Swing over table 16 in
Center distance 40 in
Max grinding diameter 12 in
Max load on table 330 lbs.
Max/optimal wheel speed 1390/1150 rpm.
Sliding angle degree 90 deg.
Min incremental feed 00.0001 in
Spindle speed, variable 30 to 350 rpm.
Quill travel 1 in
Table, min incremental feed 0.0001 in

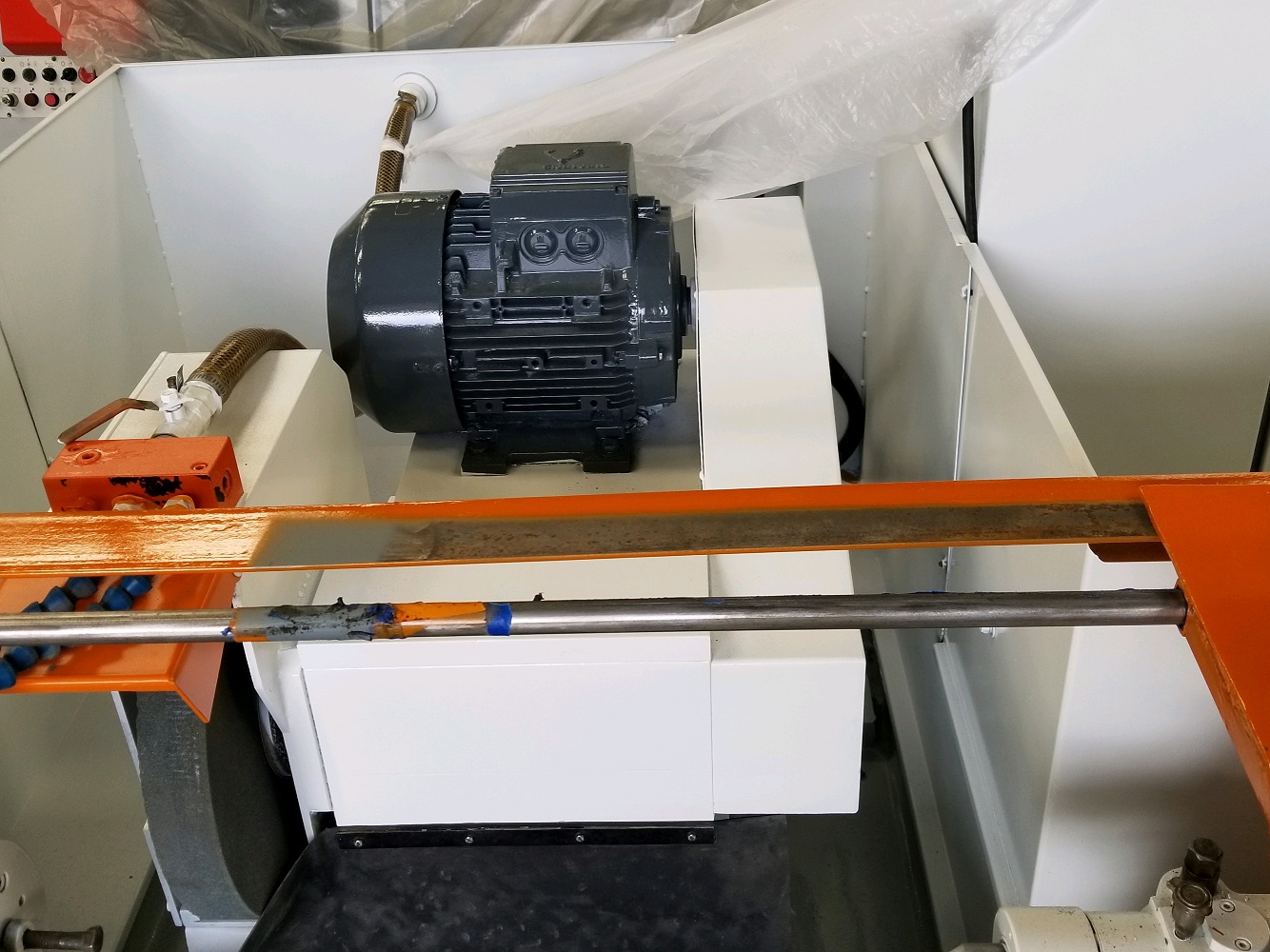

Spindle wheel motor .5 hp.
Wheel head motor 2 hp.
Hydraulic pump motor 2 hp.
Lub and coolant motor 0.25 hp.
Fanuc X-axis motor 1.2 hp.
Fanuc Z-axis (wheel) motor 1.2 hp.
Machine weight 10,340 lbs.
Dimensions, L x W x H ????
Price: $ 22,500 FOB Houston, TX Subject to prior sale
