SPECIFICATION:
Reference # GMT-2927

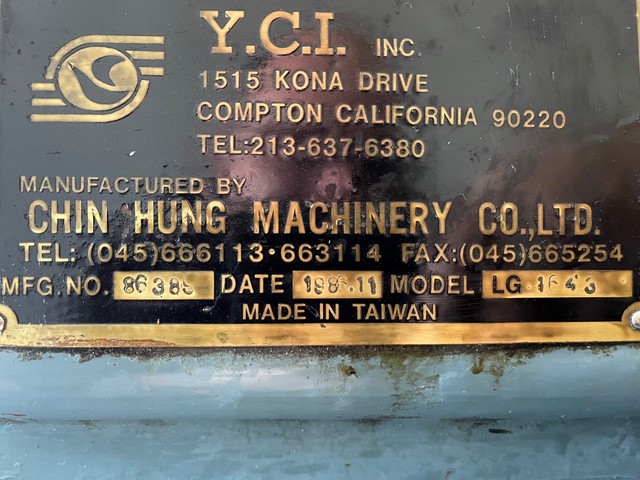

Model # LG1643
Serial # 86389
Year of manufacture 11/1986
Swing over bed 16 in
Swing in gap 24"
Swing over cross slide 9-1/2"
Distance between centers 43"
Spindle taper D1-6
Spindle bore 2-1/8"
Spindle speeds 35 to 1,800 R.P.M.
Longitudinal feeds (16) 0.0028 in to 0.020 in
Cross feeds (16) 0.0014 in to 0.010 in
Inch threading 4 to 42 T.P.I.
MM threading .4 to 7 mm

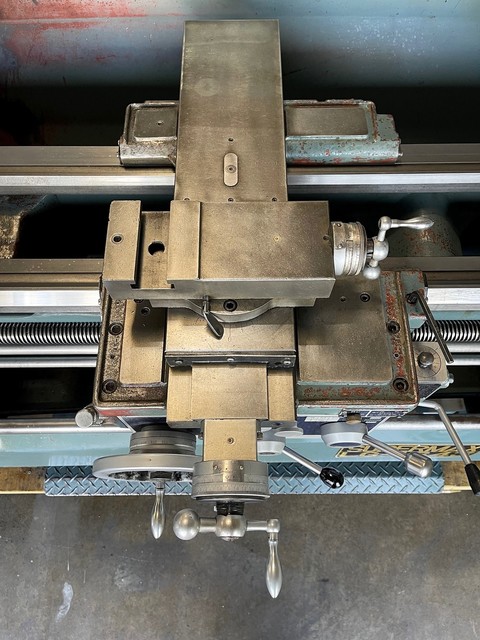

Cross slide travel 10"
Compound travel 4-3/4 in

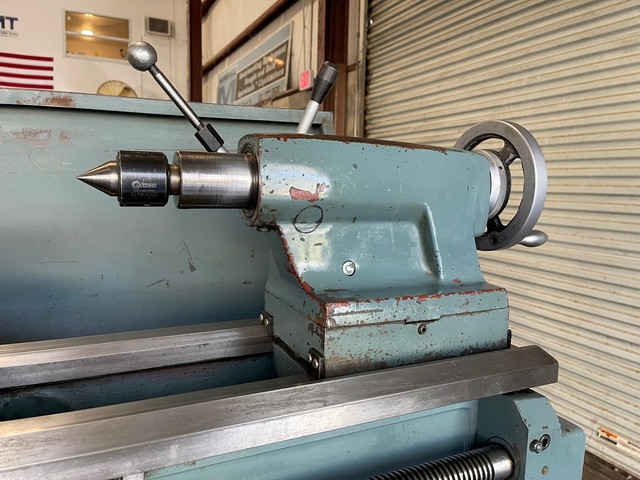

Tailstock taper #4 Morse
Tailstock quill travel 7"
CHARACTERISTICS:
Equipped With:
Full cast base machine
Hardened bedways
Foot treadle
Inch/Metric dials

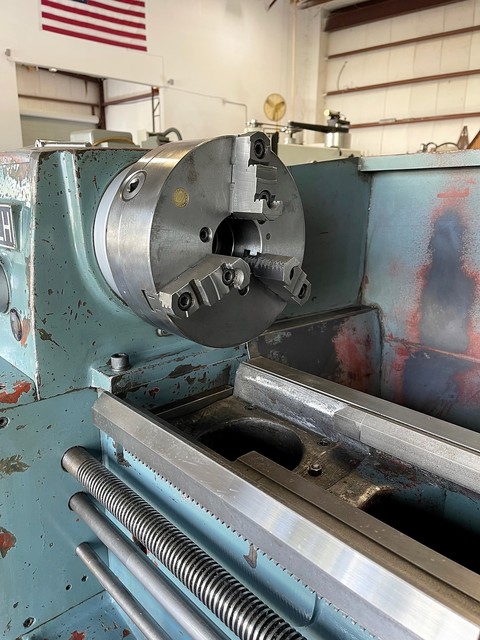

10 in BISON 3 Jaw Chuck
Live center
Coolant pump and built in base reservoir
5 H.P. motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Approximate Weight (Machine Only): 2250 Lbs.
APPROXIMATE DIMENSIONS: 93 in L x 46 in W x 55 in H
PRICE: $7,950
To view more information on the SUPERMAX # LG1643 16”/24” X 43” GAP LATHE # GMT-2927 (SOLD), including reviews, brand information, photos, videos, and more,
