SUMMIT HEAVY DUTY GAP BED ENGINE LATHE 40"/52" X 80"

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MO#40DC, 33.5
S/N 19300010
Lathes (Manual)
Gap Bed Lathes
used
(LB)
0
$0.00

Feature Video

Description

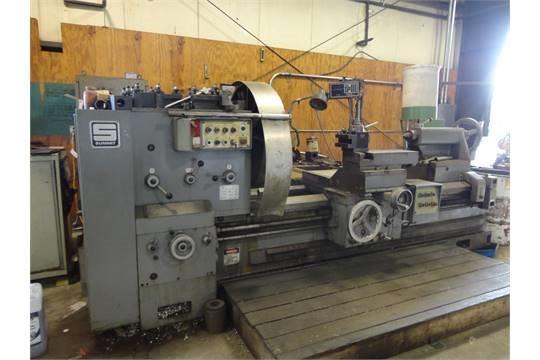

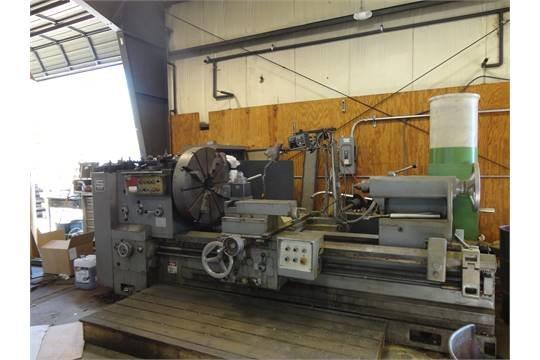

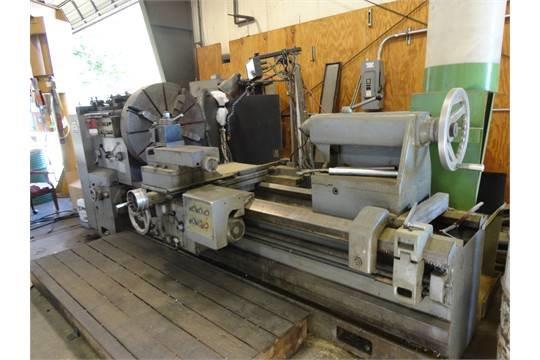

40"/52" X 80" SUMMIT HEAVY DUTY GAP BED ENGINE LATHE

MODEL 40DC

SWING OVER BED ---------------------------- 40"

SWING IN REMOVABLE GAP -------------------- 52-1/4"

LENGTH OF GAP ----------------------------- 15-3/4"

SWING OVER CROSS SLIDE -------------------- 26-1/4"

DISTANCE BETWEEN CENTERS ------------------ 80"
SPINDLE NOSE ------------------------------ A2-11
SPINDLE BORE ------------------------------ 5-1/2"
SPINDLE SPEEDS, VARIABLE ( 3 GEARED RANGES ) 2 TO 500 RPM
THREADS, INCH -------- ( 64 ) ------------- 9/16 TO 64 TPI
THREADS, METRIC ------ ( 54 ) ------------- .75 - 64 MM
FEEDS, LONGITUDINAL -- ( 60 ) ------------- .0054 TO 5.6 IPR
FEEDS, CROSS --------- ( 60 ) ------------- .0027 TO 2.8 IPR
BED WIDTH --------------------------------- 25-1/2"
MAIN DRIVE MOTOR -------------------------- SIEMENS DC DRIVE
EQUIPPED WITH ---
33-1/2" 4 JAW CHUCK
POLYSPEDE "SPEDESTER" DIGITAL D.C. DRIVE
3 POINT ROLLER STEADY REST ( 16" CAP. )
FOLLOW REST
TAPER ATTACHMENT
TRAK 2 AXIS D.R.O.
ALORIS QUICK CHANGE TOOL POST WITH HOLDERS
POWER RAPID TRAVERSE ( X & Z )
COOLANT SYSTEM
TO VIEW VIDEO, PLEASE CLICK LINK www.racomachinery.com/vlink/17856.mp4

STOCK# 17856
