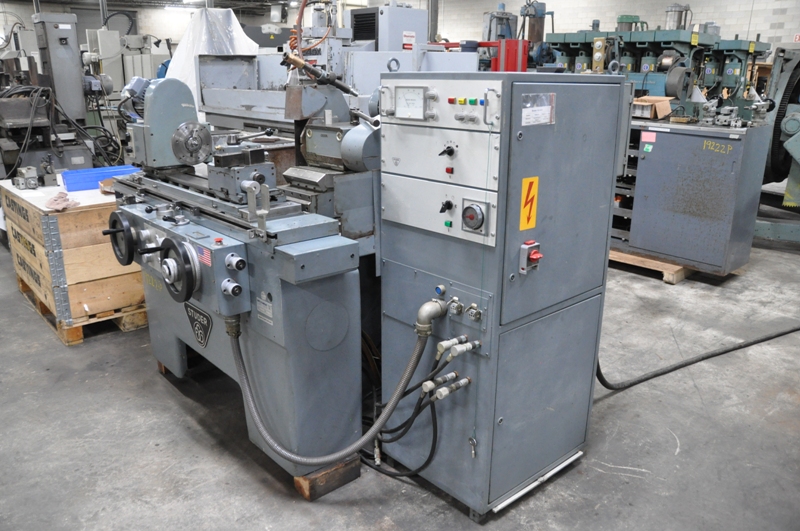

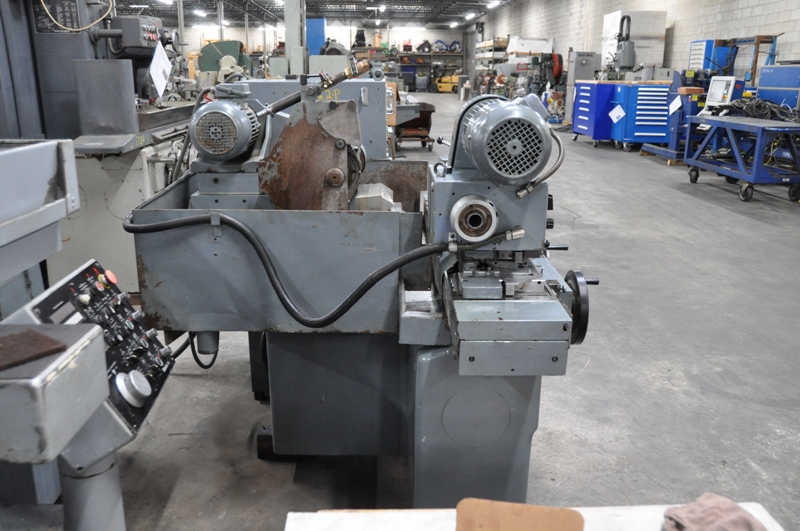

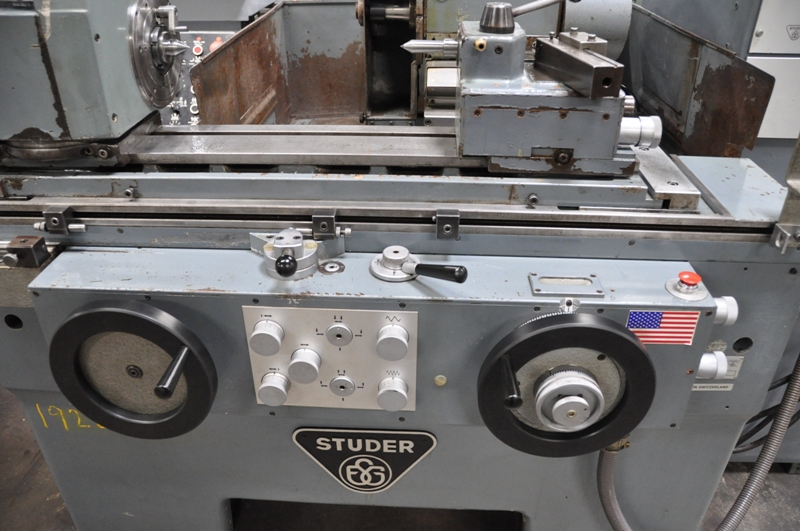

10" X 14" STUDER UNIVERSAL CYLINDRICAL GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA    $13,500.00

HMC Stock # 19222-P

Machine Serial No.: 728.47

Machine Model No.: RHU 400/125C

Swing: 10"
Distance Between Centers: 14"
Longitudinal Travel: 17" Maximum
workpiece Weight: 176 Lbs.
Table Size: 36" Length x 6" Width
Table Speed (Infinitely Adjustable): 0.17 to 18.33 FPM
Dwell at Table Reversal: 0 to 6 Seconds
Table Swivel: 12 Degrees Maximum
Travel per Handwheel Revolution: 0.98"

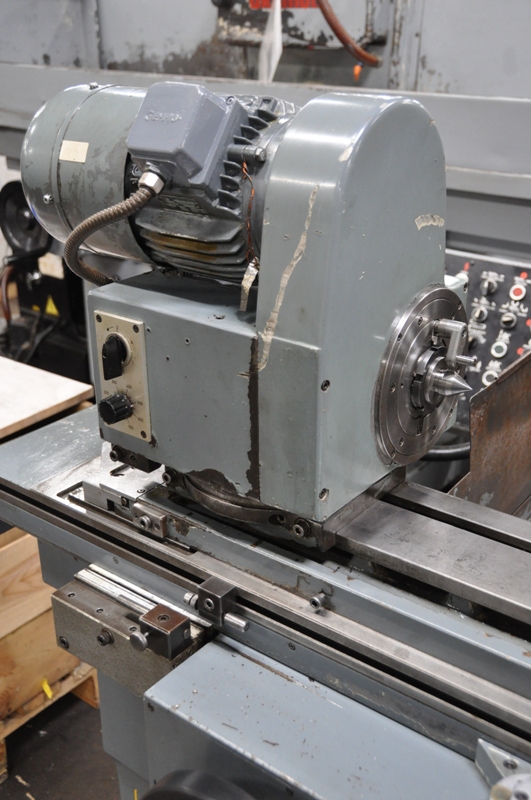

WORKHEAD
Swivel Towards Grinding Wheel: 90 Degrees
Spindle Speed (Infinitely Variable): 30 to 675 RPM
Spindle Nose Taper: #5 Morse Taper

WHEELHEAD

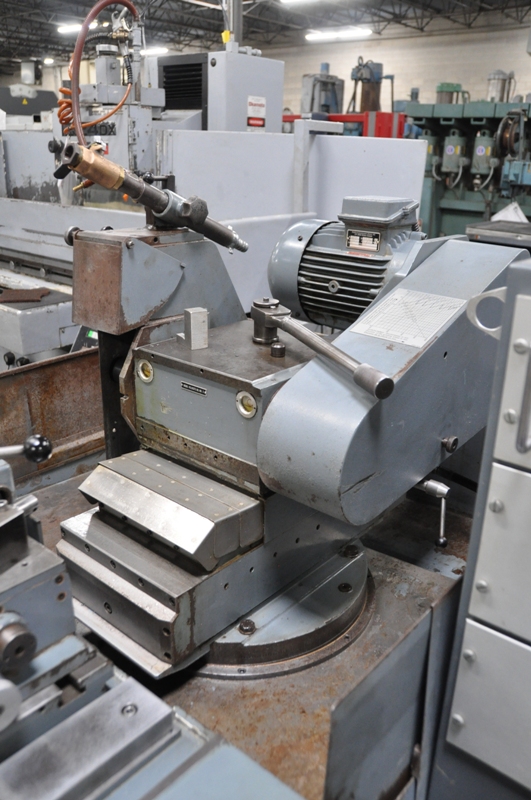

Grinding Wheel Size: 16" Dia. x 3" Width x 5" Hole
Spindle Speeds: 1500/1625/1800 RPM
Hydraulic Approach & Retraction: 1.58"
Hand Lever Adjustment: 8.27"
Swivel of Cross Slide: 45 Degrees Left & Right
Auto Infeed (Infinitely Variable): 0.00004" to 0.002"
Plunge Infeed: 0.00008" to 0.004"
Plunge Dia. Depth: 0.07" Maximum

EQUIPPED WITH:
(1) Air- Hydraulic Part Measuring Gage
(2) Table Mounted Adjustable Wheel Dressers with Diamonds
(3) 1" High Table Mounted Sub Plates
(1) 1-1/4" High Sub Table with Sine Fixture

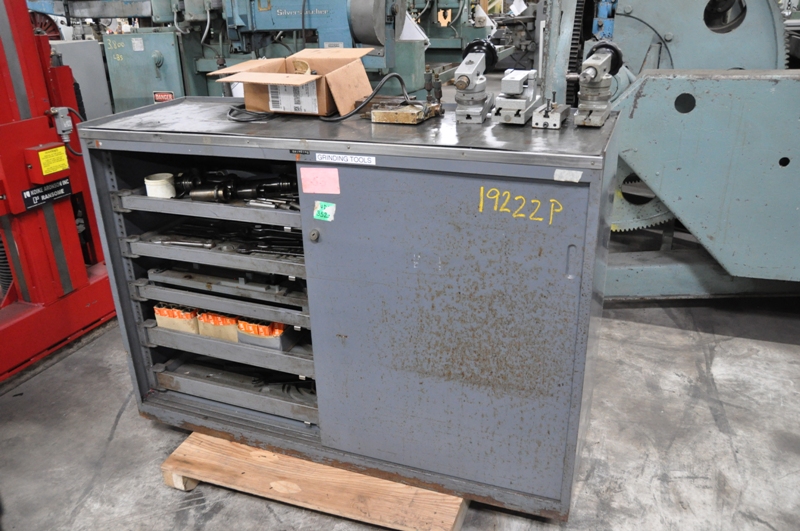

(1) 9 Drawer Metal Cabinet with Accessories
(1) Coolant Tank & Pump System with Filter Unit

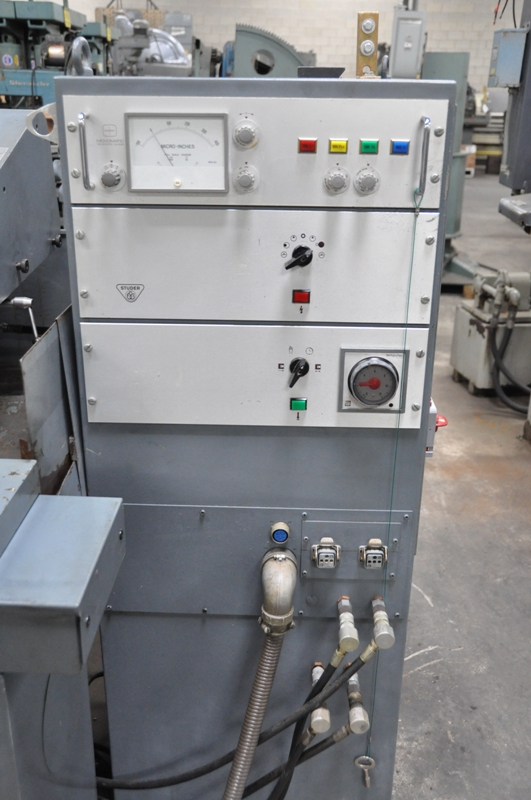

(1) Electric Control Panel that Houses the Hydraulic System
(5) #5 Morse Taper Shanks for Mounting Face Plate or Chuck
(5) #5 Morse Taper R8 Collect Holder Adapters
(3) Grinding Wheel Mounting Hubs
(2) Coolant Spouts
(2) Workhead Draw Bars for R8 Collects
(139) Assorted R8 Collects
(1) Powerhold Air Chuck Actuator, Model 3B, Serial No. 21100
(1) 4" Dia. Northfield 3 Jaw Air Chuck, Serial No. 453480 with (3) Chuck Jaws
(2) 7-3/4" Dia. Face Plates
(1) 5" Dia. Face Plate Adapter
(1) 6" Dia. Face Plate
(4) Wheel Balancing Arbors, 8" & 9" Long
(2) 6" Dia. Northfield 3 Jaw Air Chuck, Model 100, No Jaws
(1) 4" Dia. Mfg. Unknown 4 Jaw Chuck with 1 Piece Hard Reversible Jaws, Plain Back
(1) 9" Dia. Mfg. Unknown Magnetic Chuck with Mounting Plate
(1) 6" Dia. Northfield 2 Jaw Air Chuck with Chuck Jaws
(1) 6" Dia. Northfield 3 Jaw Air Chuck with Long Nose Jaws
Several Assorted Work Driver Dogs

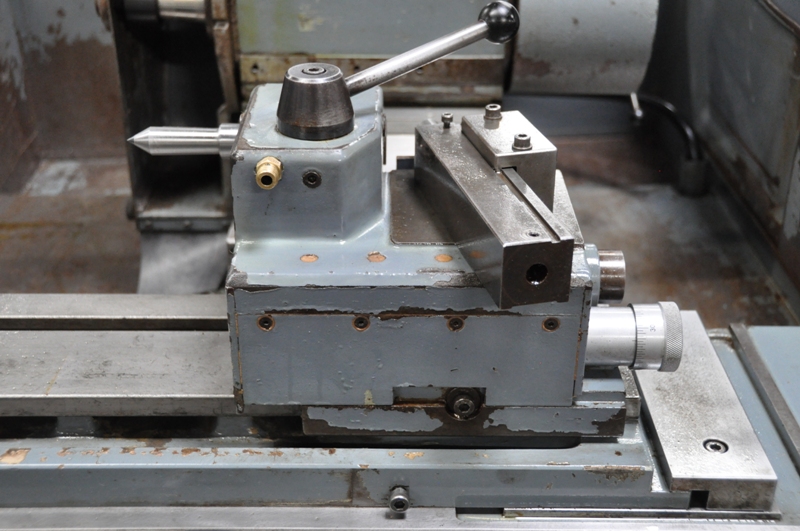

Several Assorted Carbide Tipped Solid Centers for Tailstock
Main Motor, Wheel and Belt Guards
Assorted Wrenches
? HP Grinding Head Motor
? HP Hydraulic Pump Motor
1.1 KW Coolant Pump Motor, Wired 225/390 Volts, 50 Hz

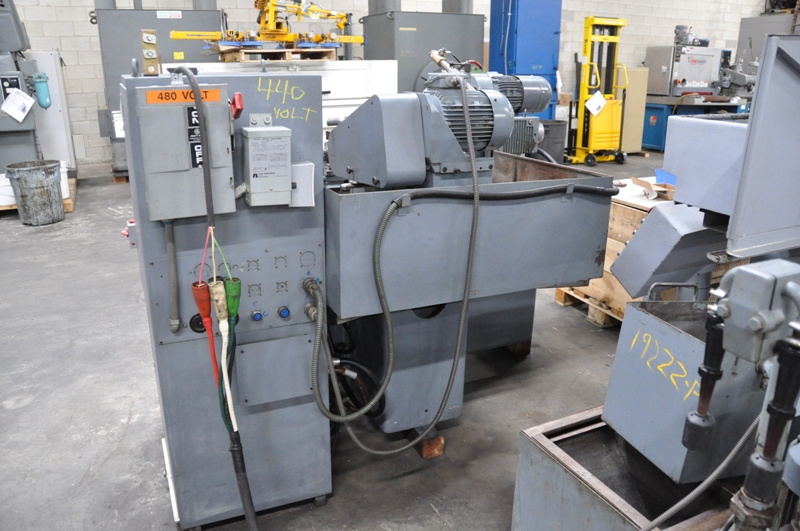

Presently Wired for 3 Phase, 60 Hz, 440 Volt Operation

OVERALL SIZES:
Machine: 60" LR x 53" FB x 56" High on 3" Blocks
Electrical Cabinet: 33" FB x 23" LR x 58" High
Coolant Tank: 31" x 34" x 48" High
Metal Cabinet: 20" x 57" x 39" High
Machine Only Net Weight: 4,850 Lbs.
