13.8" X 40" STUDER MODEL S35R CNC UNIVERSAL CYLINDRICAL GRINDER
** RETROFIT & REBUILT BY STUDER IN 2000 **
SWING OVER TABLE -------------------------- 13.8"
DISTANCE BETWEEN CENTERS ------------------ 40"
MAXIMUM GRINDING LENGTH ------------------- 21-1/4"
MAXIMUM GRINDING DIAMETER ----------------- 12"
TRAVEL ----- ( Z AXIS ) ------------------- 25.6"
TRAVEL ----- ( X AXIS ) ------------------- 10.5"
Z AXIS SPEED ------------------------------ .0006 TO 394 IPM
X AXIS SPEED ------------------------------ .0003 TO 197 IPM
GRINDING WHEEL SIZE ----------------------- 20"X 3-1/4" X 8"
WHEEL HEAD SWIVEL RANGE ------------------- +/- 8.5 DEGREES
WHEEL HEAD SPEED -------------------------- 1670 RPM
MAXIMUM WORKPIECE WEIGHT BETWEEN CENTERS -- 287 LBS.
WORKHEAD SPEED RANGE ---------------------- 15 TO 750 RPM
WHEELHEAD DRIVE MOTOR --------------------- 10 HP A.C.
WORKHEAD DRIVE MOTOR ---------------------- 1.6 HP A.C.
EQUIPPED WITH ---

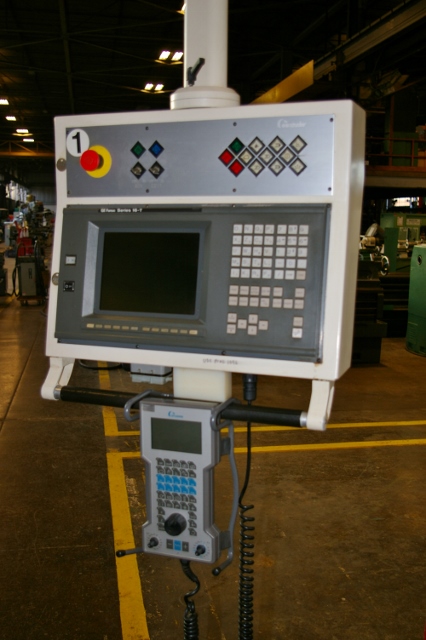

16T FANUC CNC CONTROL WITH HAND HELD CONTROL
COOLANT FILTRATION SYSTEM
AUTOMATIC LUBRICATION
TO VIEW VIDEO, CLICK LINK www.racomachinery.com/vlink/17574.mp4
STOCK# 17574
