Manufacturer: Star
Model: SB-16 Type C
Year: 2005
SPECIFICATIONS:
Max. Machining Diameter: 16mm ( 5/8")
Max. Heastock Stroke Stationary GB: 8"
Max. Headstock Stroke Revolving GB: 6 3/32"
Tool: 5 Tools
4 Spindle Sleeve Holder: 4 Tools, 25/64" drill cap. M8 Tap Cap.
Power Driven Attachment: 3 Tools, 6mm drill cap., M5 tap cap.
Max. Spindle Speed: 10,000
Main Spindle Motor: 2.2 Kw/ 3.7 Kw
Rapid Feed Rate: 35 m/min (X,Y,Z,ZB)
Power Driven Att. Spindle Speed: 5,000
Power Driven Att. Drive Motor: 0.4 Kw
Coolant Tank Cap. 152
Overall Dimenions: 73" x 42" x 68" H
Weight: 3700 lbs.

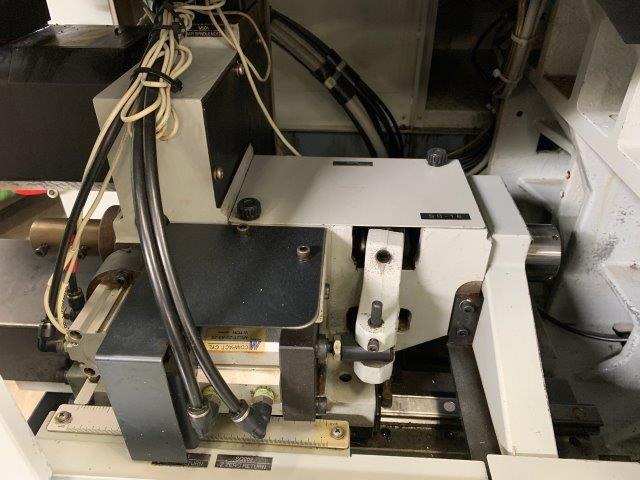

Backwork Att. Specifications:
Max. Chucking Diameter: 16mm ( 5/8")
Max. Length for front ejection: 80mm
Max. Parts projection length: 30mm
4 Sleeve Spindle Holder: 4 Tools, 8mm drill cap. M6 tap. cap.
Sub Spindle Speed: 8,000
Sub Spindle Motor: 1kw
To view more information on the STAR, NO. SB-16 TYPE C SCREW MACHINE, FANUC 18I-TB, 2005, 16MM 5/8" CAPACITY OUR STOCK NUMBER: 5591, including reviews, brand information, photos, videos, and more,
