STAMA FIVE AXIS VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MC 533 (Made in Germany)
Machining Centers Vertical Horizontal CNC
5 Axis Machines
used
35860 (LB)
0
$349,500.00

Description

Specifications:

Model                                      MC 533 (Made in Germany)
CNC control                            Siemens 840D

Highlights:
Travels, X-Y-Z                       640-400-400mm
Tilting and Swivel bridge 5 axis simultaneously, 90 rpm max
Table Load Capacity                1,100 lbs
Spindle Motor                         25HP
Spindle Speed                         12,000 rpm
Spindle taper                           A-63 (HSK A63 tooling)
Coolant thru the spindle           High Pressure Coolant Package (70 bar)
Tool stations                           72
Measuring system                   Siemens absolute 0.001
Machine weight                      35,860 lbs.

Extras:
Direct measuring system of X-axis
Direct measuring system of Y-axis
Coolant filtration paper/system
High pressure coolant package
Measuring device TS27R
Probe unit preparation
Master cube including mounting elements
Transfer of standard voltage
Deviation of power frequency
Remote diagnosis via Internet

Price:  $ 349,500. FOB Houston, TX.  Subject to Prior Sale.

Comments:  The machine was purchased out of storage in San Antonio.  It was originally
used for the production of sophisticated aviation parts.  It is in very good condition with
extremely low hours.

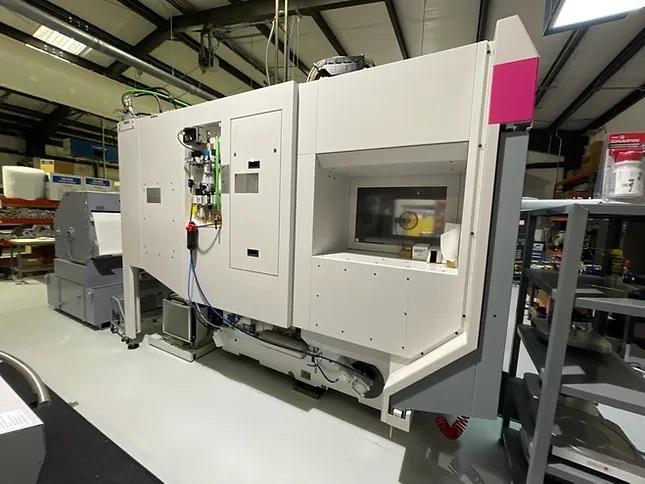

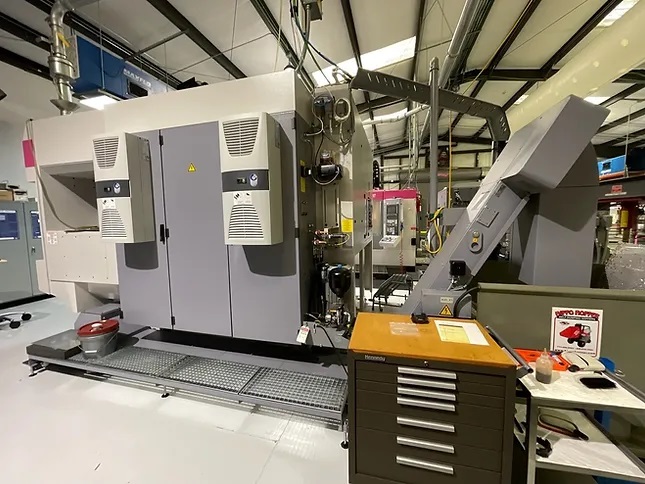

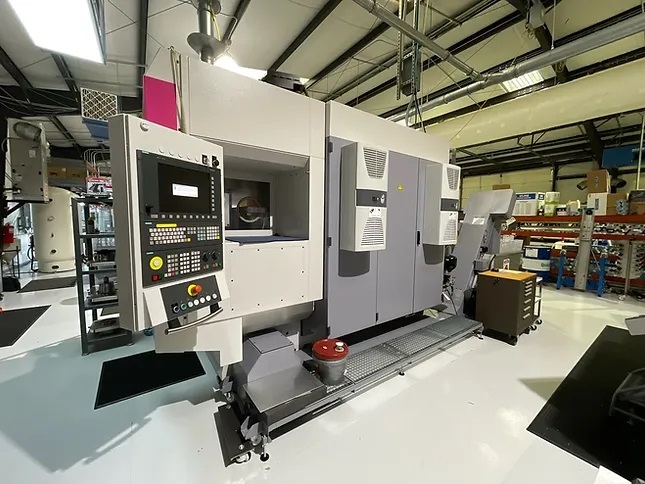

STAMA MC533 FIVE AXIS VERTICAL MACHINING CENTER

(pictures were taken before the machine was put in storage)
