X Axis Travel: 27.95"
Y Axis Travel: 17.71"
Z Axis Travel: 19.68"

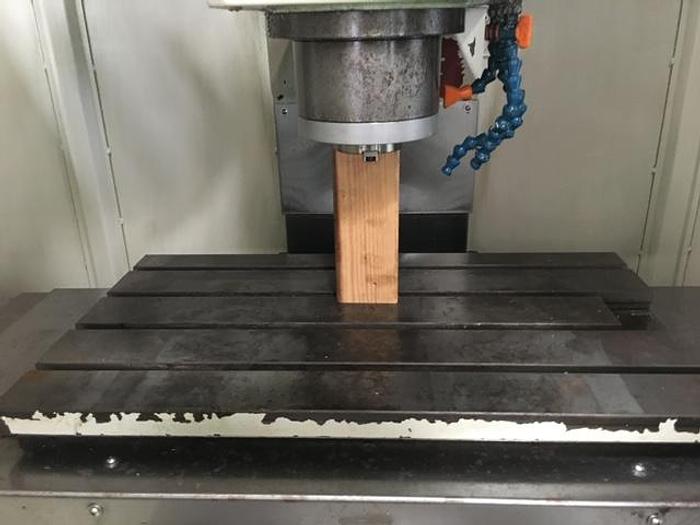

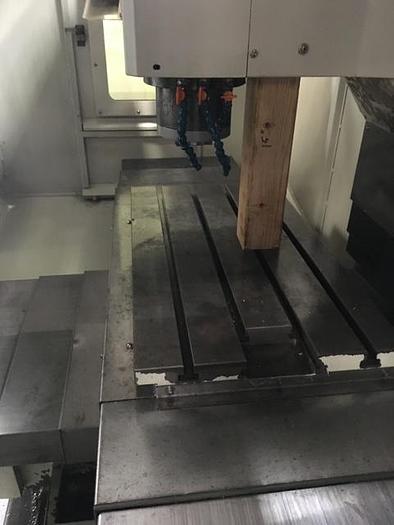

Table Size: 29.92" x 16.92"
Spindle Center To Column: 19.37"
Spindle To Table: 3.93"-24.01"
Column front to table center: 19.37"
Rapid Fee XYZ axis: 20 m/min Box Way
Cutting Feed Rates: 1-20000 mm/min
Max. Table Load: 1102 lbs.
T Slot Size: 16mm
T slot number and pitch: 4 @ 100 mm
Spindle Speed: 5-8000 rpm
Spindle Motor: 20 HP
Spindle Taper: BT40

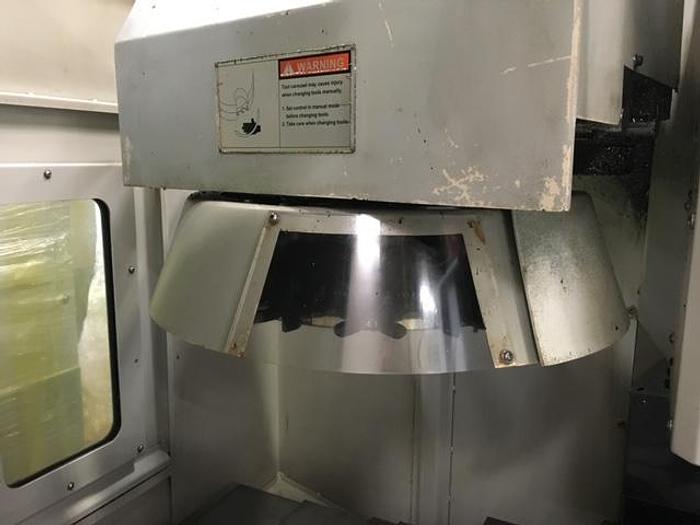

Tool Magazine Capacity: 24 Station
Tool Change Time Tool to Tool: 2.5 sec
Max. Tool Diameter: 3.14"
Max. Tool Weight: 15.43 lbs.
Coolant Capacity: 160 L
Ball Screw Size: (grace C3): 32mm P8
Ac Servo Motor Size: X and Y 8 Nm Z 12 Nm
Machine Weight: 8900 lbs.
Footprint: 88.58" x 87.40" x 100.39" H

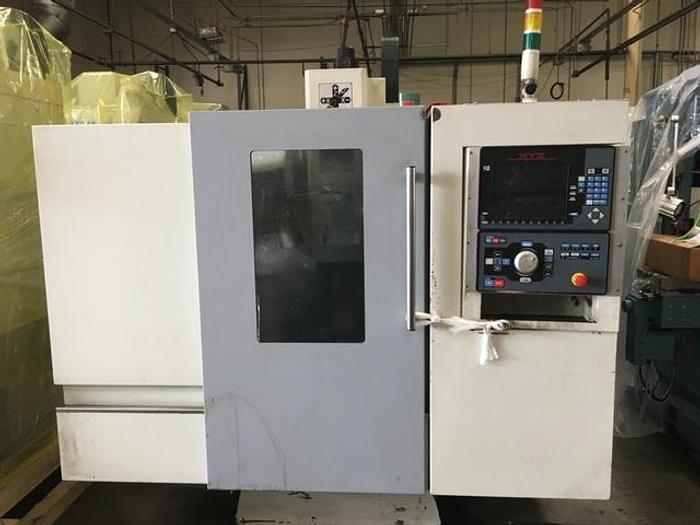

To view more information on the SOUTHWESTERN TRAK XYZ ( LPM ) 710 CNC VERTICAL MACHINING CENTER, including reviews, brand information, photos, videos, and more,
