Manufacturer: Southwestern Industries
Model: Proto Trak DPM CNC Vertical Mill
Specifications:
Table Size.................10" x 50"
Table Travels:
X..........................31"
Y..........................17"
Knee.......................23.5"
Quill Travel...............5"
Spindle Taper..............#40
Spindle Speeds.............70 - 4200 RPM
Spindle Motor..............5 HP
Spindle To Column..........19"
Spindle To Table...........23.5"
Max. Workpiece on Table....1,320 Lbs
Rapid Traverse.............150 IPM (X,Y,Z)
Electrics..................220/440v, 3ph
Dimensions.................68" x 65" x 85"
Equipped With:

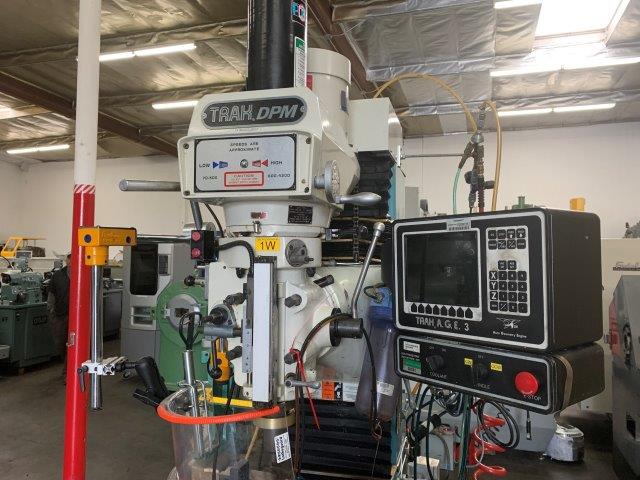

Proto Trak AGE 3 Control
USB Emulator
Repar Safety Shield Electronically Interlocked with Control
Kurt Vise
To view more information on the SOUTHWESTERN INDUSTRIES MODEL TRAK DPM CNC MILLING MACHINE, PROTO TRAK AGE 3 OUR STOCK NUMBER: 5540, including reviews, brand information, photos, videos, and more,
