SOUTH BEND RADIAL ARM DRILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


GK50-1500
540439
Drills Manual and CNC
Radial Drill
used
7000 (LB)
0
$6,950.00

Description

Description & Specifications

SOUTH BEND RADIAL DRILL

PRICE: Loaded on Truck, Our Warehouse, York, PA       $6,950.00


Stock # 16074-P
Machine Serial No. 540439
Machine Model No. GK50-1500
New Date: Unknown

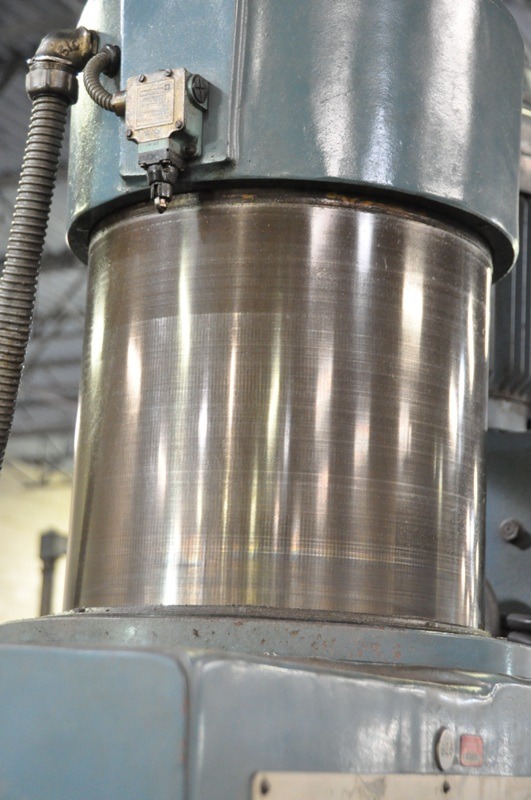

Column Diameter: 14"
Arm Length: 59-1/16"
Traverse of Head on Arm: 46-1/4"
Arm Travel on Column: 29"
Distance Spindle to Base: 13-3/16" Min. to 51-1/4" Max.
Height of Head at Full Arm Elevation: 108-5/8"
Spindle Radius: 19-3/4" Min. to 66" Max.
Drilling Capacity in Mild Steel: 2"
Quill Travel: 9"
Taper in Spindle: #4 Morse

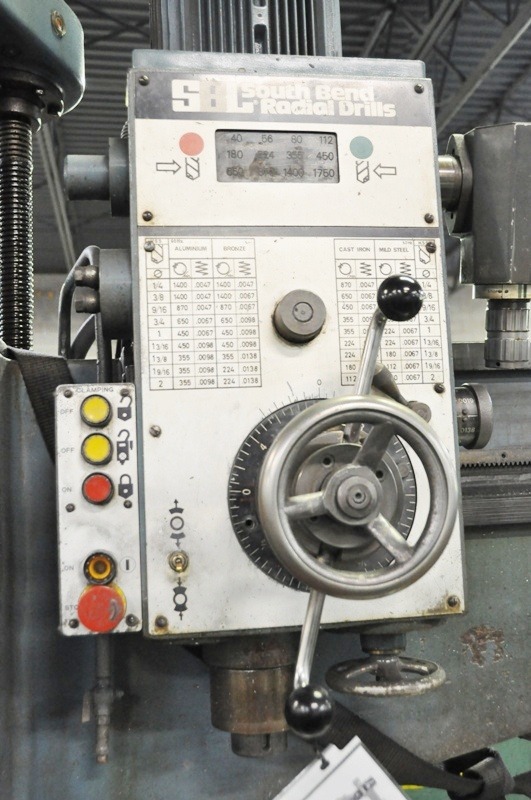

(12) Spindle Speeds: 40 to 1750 RPM
(6) Feeds: .0020" to .0138" Per Revolution
Base Size: 66-3/8" Long x 32-1/4" Wide x 8-21/32" High
(3) T-Slots in Base

EQUIPPED WITH:
Power Clamping
Power Elevation
Box Table
Coolant
Manuals
4 HP Main Motor, Wired for 3 Phase, 60 Cycle, 230 Volts

Overall Size: 96" L-R x 36" F-B x 103" H x 7,000 Lbs.
