Description

The Sodick Wire EDM range features rigid linear motors, maximizing cutting performance and giving you the part accuracy you need to be the envy of your competition. Each Wire EDM Machine is thoroughly designed and tested to ensure the best quality machine ends up on your shop floor.

Specification                                                                          Description

X Axis Travel                                                                              22.0"

Y Axis Travel                                                                              13.8"

Z Axis Travel                                                                              11.8"

UV Axis Travel                                                                               3.15"

Maximum Workpiece Size                                                      30.3" x 19.7" x 12.0"

Maximum Work-Piece Weight                                                     1,763 lbs

Axis Drive (X, Y, U, V)                                                 Linear Motors/ Glass Scales

Z Axis Drive                                                               AC w/ Closed Loop Feedback

Axis Tracking System (X, Y, Z, U, V)                                     Linear Motion Guides

Minimum X, Y, U, V Resolution                                                   0.000004

Numerically Controlled Axes                                                        5

Wire Diameter Capability                                                        0.006" - 0.013"

Dielectric Water Capacity                                                            225 Gal

Power Requirements                                                          200-220 Volts/3Phz/15kVA

Required Floor Space (WxD)                                                  132" x 151"

Machine Dimensions (WxDxH)                                              95" x 109" x 86"

Machine Weight                                                                           11,000 lbs

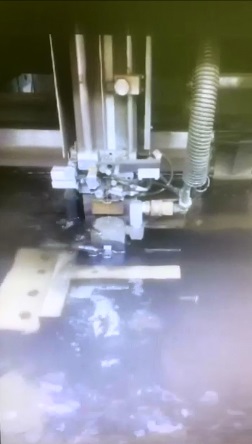

Equipped With:

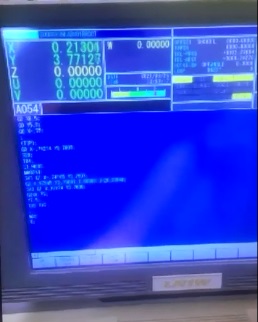

* Sodick LN1W CNC Control * Linear Motor & Scales on X,Y,U,V * Automatic Wire Threader * Submersible Flushing * Glass Scale Feedback (X,Y,U,V) * Large Spool Option (44lbs) * Ceramic Components * Wire Chopper * Wire Tip Disposal Unit * Front Drop Door * Advanced Corner Control * Z-Axis Automatic Dielectric Fluid Level Control * Advanced Tension Servo Control * FTII (Precision Pick-Up Function) * High Speed Electrolysis-Free Power Supply * Fine Finish Circuitry * Energy Saving Circuit * Motion Controller (K-SMC) * On-Board, User-Friendly Heart NC Software * USB & Lan Connection Port * Remote Hand Control and Mouse * Built-In Voltage Stabilizer * Complete Dielectric Filtration System * Electric Chiller * All Available Manuals and Accessories.

Stock Number: 0787

Condition: As Is, Where Is
