SODICK A325 WIRE EDM

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


A325
Electrical Discharge Machining EDM
Wire Cut EDM
used
6220 (LB)
1998
$0.00

Description

Specification                                                       Description

X-Axis Travel                                                          13.7"

Y-Axis Travel                                                            9.8"

Z-Axis Travel                                                            8.6"

UV Axis Travel                                                      +/- 3.15"

Taper Angle                                                  +/- 20 Deg in 4"

Worktank Dimensions                                     35.2" x 25.6"

Max Workpiece Size                                       23.6" x 13.7" x 8.6" H

Max Workpiece Weight                                        990 Lbs

Wire Diameter Capability (All guides not included) .004" - .012" dia

Power Consumption 13 KVA

Filtration System Dimensions                              32" x 80" x 67"H

Filtration System Weight                                         380 Lbs

Machine Dimensions                                              63" x 80" x 82"H

Machine Weight                                                          6,220 Lbs

Equipped With:

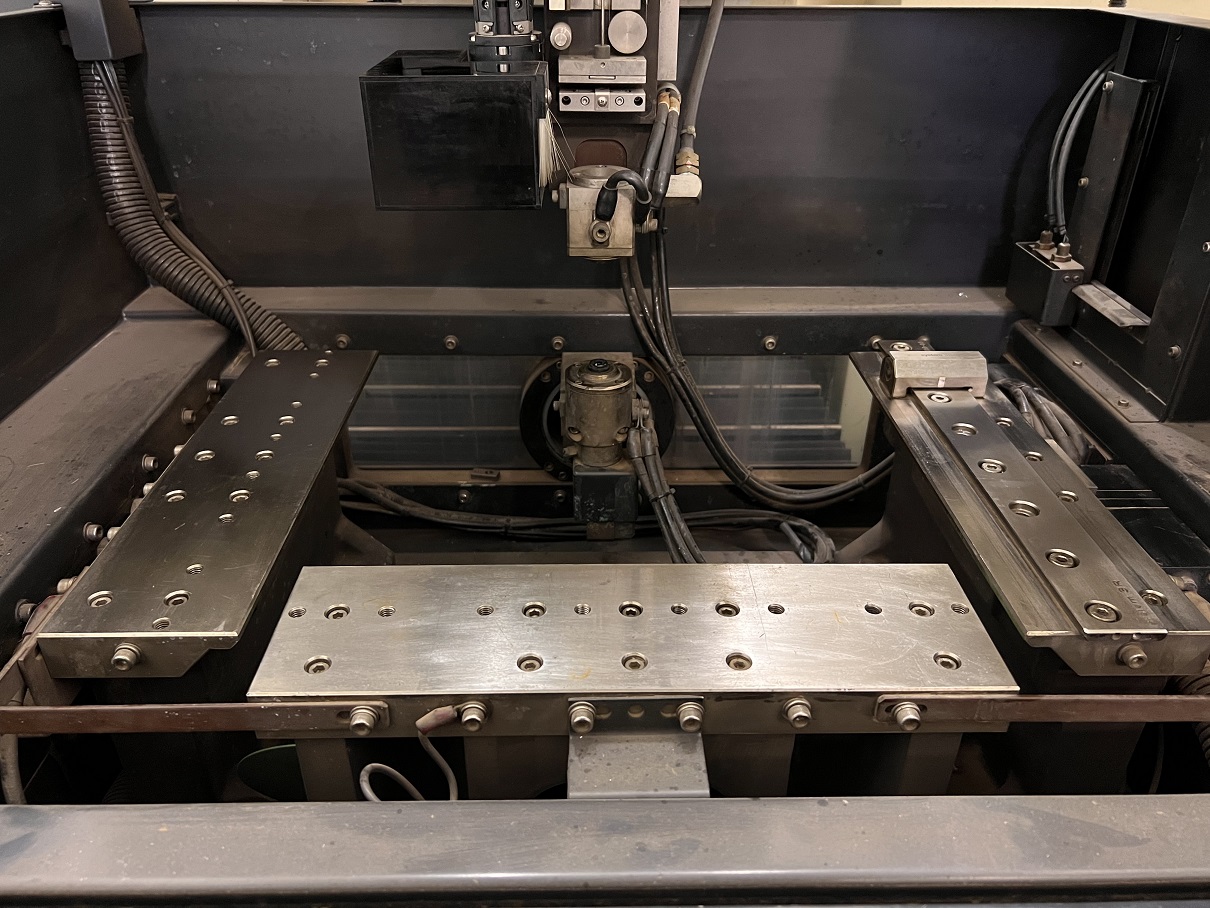

* Sodick Mark 25 CNC Controller w/Color CRT * Automatic Wire Threader * Submerged Machining Capability * U-shaped Zeroline Stainless Steel Worktable * On-board Programming Capability * Floppy Drive * RS-232C Port * Water Dielectric Fluid Filtration System * Electric Chiller ** System 3R tooling pictured is NOT included with the machine

Stock Number: 0778

Sodick A325

Age: 1998

Condition: As Is, Where Is
