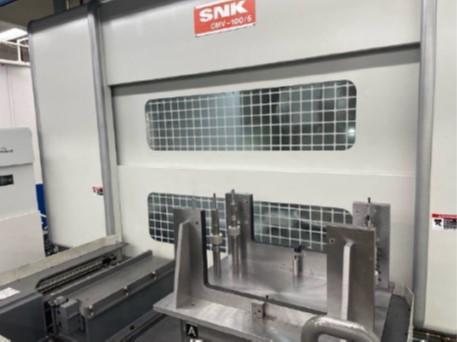

SNK CMV-100/5 5-AXIS CNC HORIZONTAL MACHINING CENTER, WITH 8000 RPM, 1000MM PALLETS, COOLANT THRU, FANUC 31I-B5, 40HP, RAN 20 PARTS (NEW 2016 - INSTALLED 2017)

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


CMV-100/5
Machining Centers Vertical Horizontal CNC
Horizontal Machining Centers
used
(LB)
2016
$0.00

Description

Stock # 56072

Condition Excellent

Specifications:

CNC Control yes

CNC Control Fanuc 31i-B5

Main Specifications - See Below See Below

Table Size: 1000mm x 1000mm (39.3 x 39.3 in)

Distance from Pallet surface to spindle center 0-1,300mm (0 -51.1 in)

Distance from pallet surface to spindle end (when spindle is in vertical position) 0-1,000 mm (0-39.3 in)

Max Table Load 1,500 kg / table (3,300 lbs.)

Spindle: See Below

Spindle Speed 40 to 8,000 RPM

Spindle Nose Taper CT-50V (Dual face contact type)

Coolant Thru Spindle yes

Spindle motor drive VAC 30/22 kW (40/29.5 HP)

Torque N-m 26 to 653 Nm

Travels See Below

Table Longitudinal (X-Axis) 1,500 mm (59.0 in)

Column transverse (y-Axis) 1,330 (52.3 in)

Spindlehead vertical (Z-Axis) 1,300 mm (51.1 in)

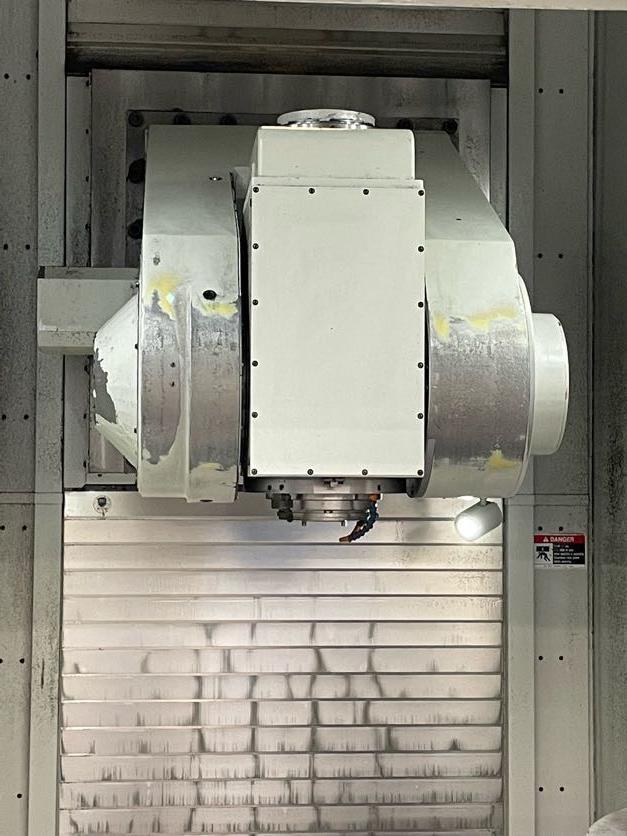

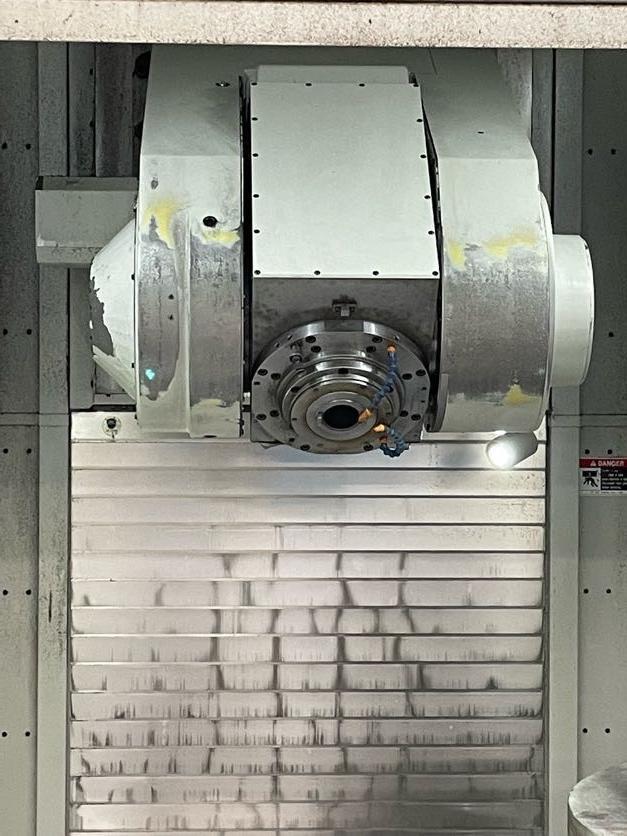

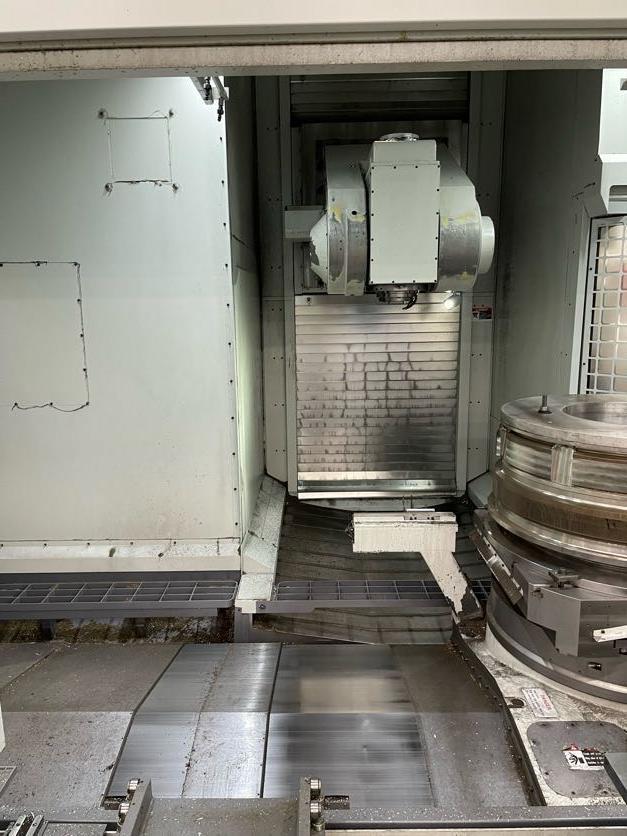

Spindlehead tilt (A-Axis) +30 to -120 deg.

Table rotation (C-Axis) endless

Feedrates See Below

Rapid Traverse - X,Y,Z 40 m/min (1574 in)

Rapid traverse - A-Axis 2,880 dpm

Rapid traverse, C-Axis 2,880 dpm

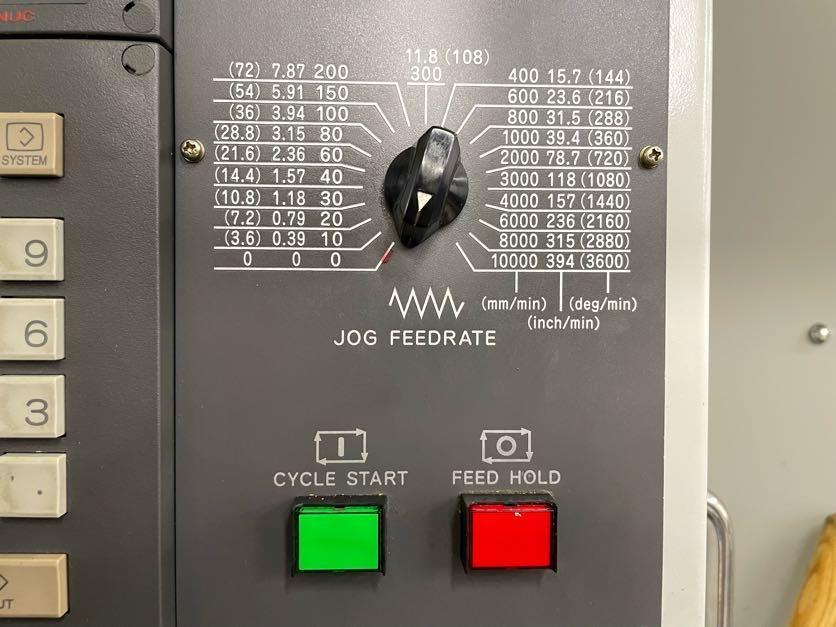

Feedrate - X, Y, Z -Axis 1 - 20,000 mm/min (0.001 to 787.4 ipm)

Feedrate A-Axis 0 to 2,880 dpm

Feedrate - C-Axis 0 - 2,880 dpm

Automatic Tool Changer (ATC) 80 Tools

Automatic Pallet Changer (APC) 2 - Pallets - 1,000 x 1,000 mm (39 x 39 in)

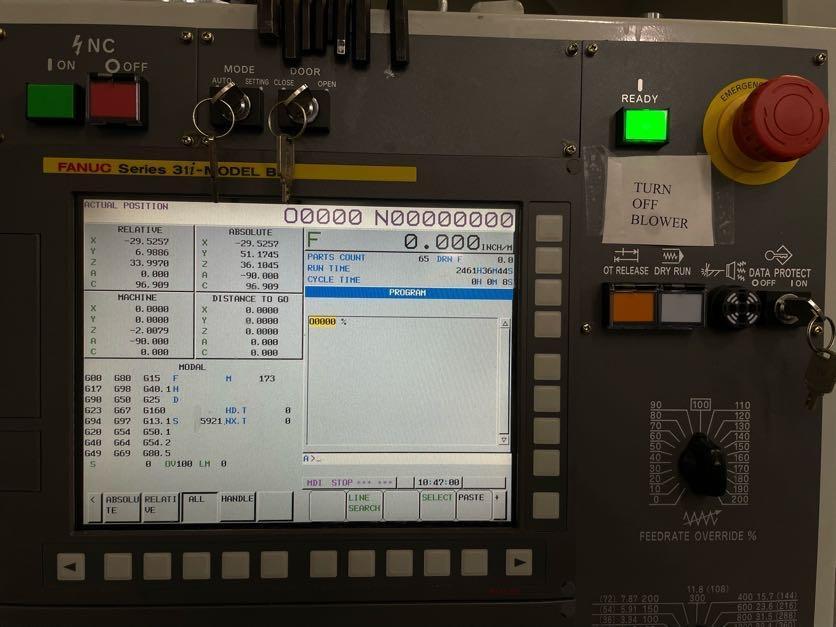

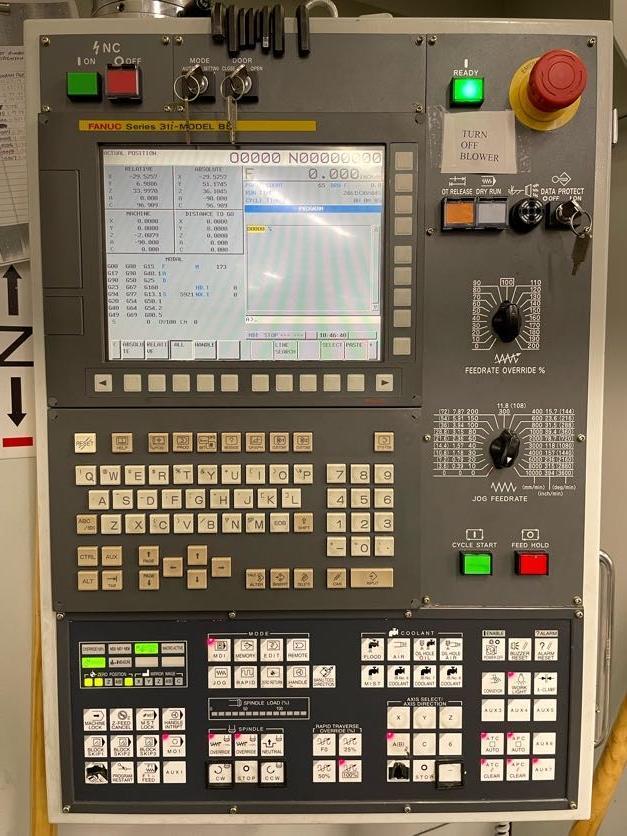

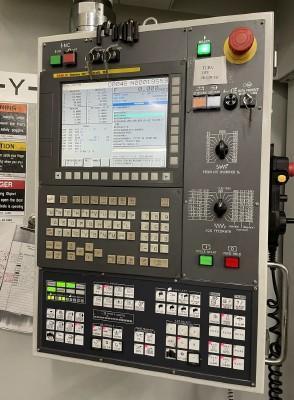

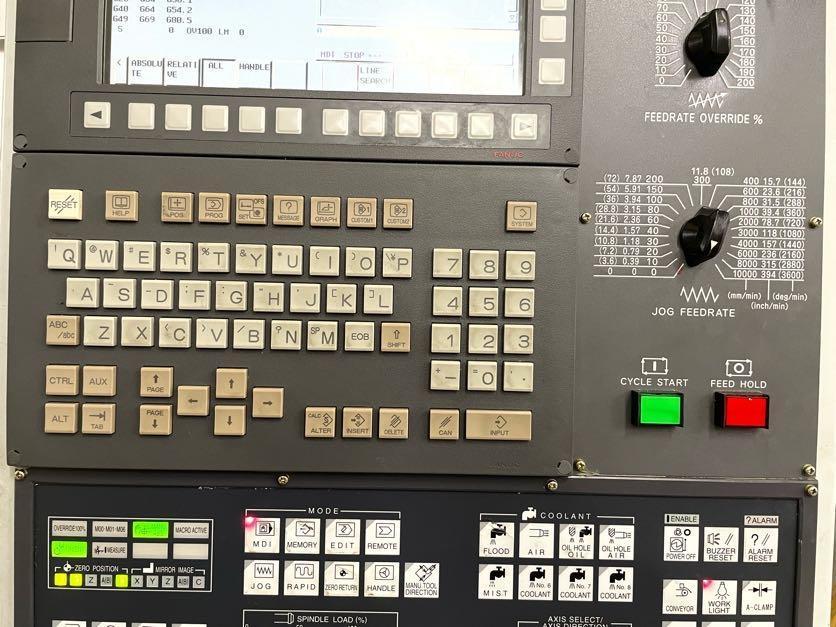

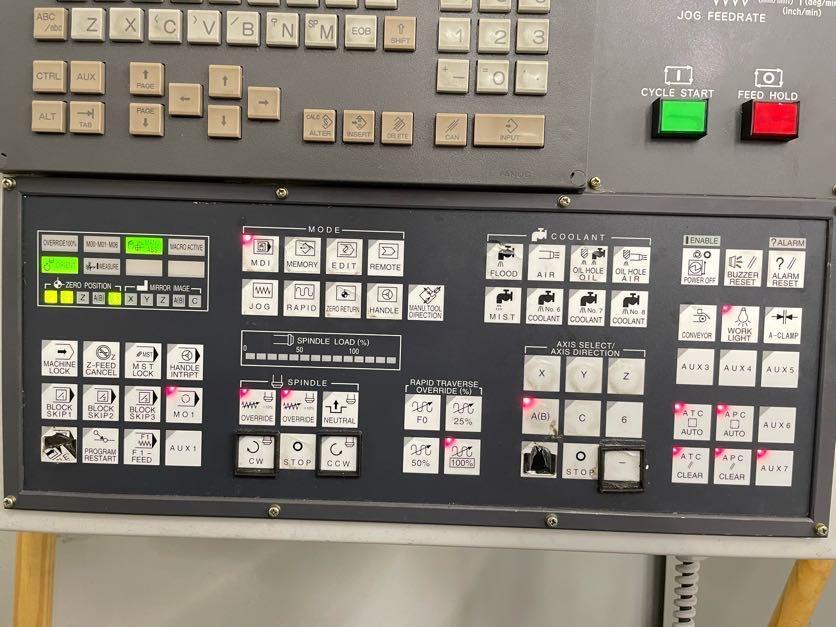

Fanuc 31i-B5 CNC Control

Automatic Tool Changer (ATC) 80 Tools

Automatic Pallet Changer (APC) - Two (2) Pallets

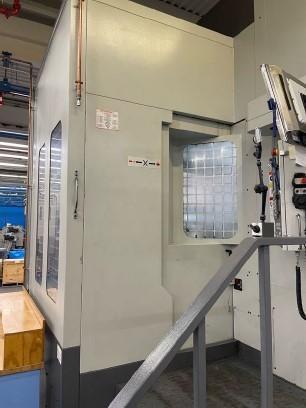

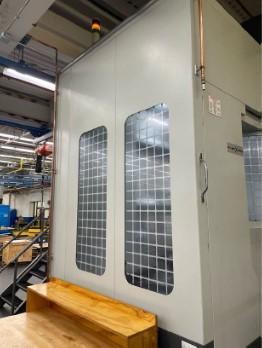

Splashguard (Full Enclosurer

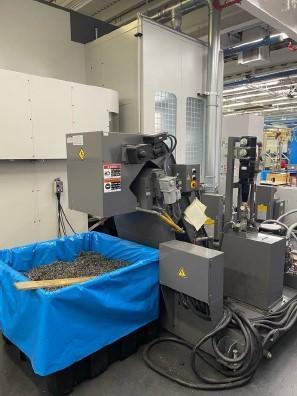

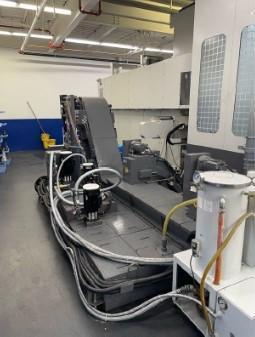

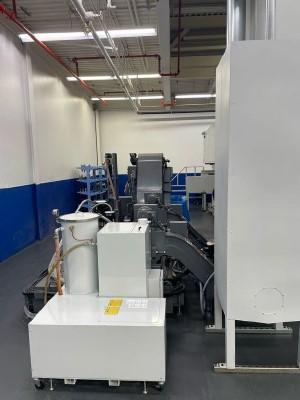

Large capacity coolant tank with 2 conveyors + 1 conveyor with coolant tank

Thru Spindle Coolant (7MPa, 15lit/min

Air Blow Device

Automatic measuring and alignment function (RMP-60 or equivalent

Automatic tool length and tool diameter measuring and compensating function (laser type)

Spindle overload preventing function

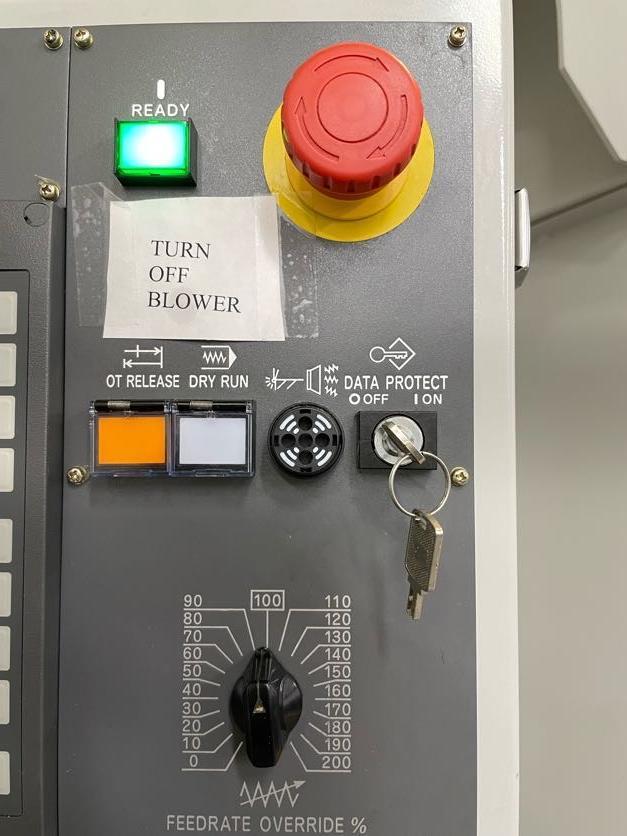

Three lamp indication light

Four flood coolant nozzles

Shower Coolant System

Six extra spare M code functions

Scale feedback X, Y, Z, A and C
