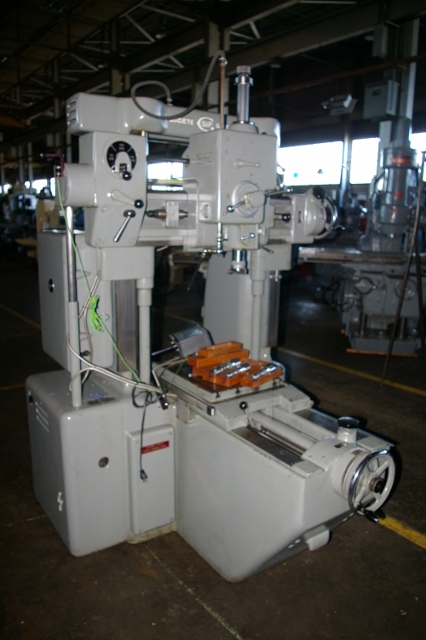

SOCIETE GENEVOISE "SIP" TYPE MP-4G JIG BORER
MODEL MP-4G
DOUBLE COLUMN DESIGN WITH PRECISION MICROMETER SCREWS
AND MICROMETER HEADS.
TABLE WORKING SURFACE --------------------- 20.5" X 15"
LONGITUDINAL TRAVEL OF WORK TABLE --------- 18"
CROSS TRAVEL OF SPINDLE HEAD ON RAIL ------ 14"
MAX. DISTANCE SPINDLE END TO TABLE TOP ---- 24"
DISTANCE BETWEEN COLUMNS ------------------ 23-3/4"
VERTICAL TRAVEL OF CROSS RAIL ------------- 18"
SPINDLE TAPER ----------------------------- #2 MORSE
SPINDLE SPEEDS ------- ( 8 ) -------------- 75 TO 2,000 RPM
FEEDS ---------------- ( 6 ) -------------- .0008" TO .007"
SPINDLE QUILL TRAVEL ---------------------- 6"
DRILLING CAPACITY ------------------------- 1"
BORING CAPACITY --------------------------- 4"
MAIN DRIVE MOTOR -------------------------- 1-1/2 HP A.C.
EQUIPPED WITH ---

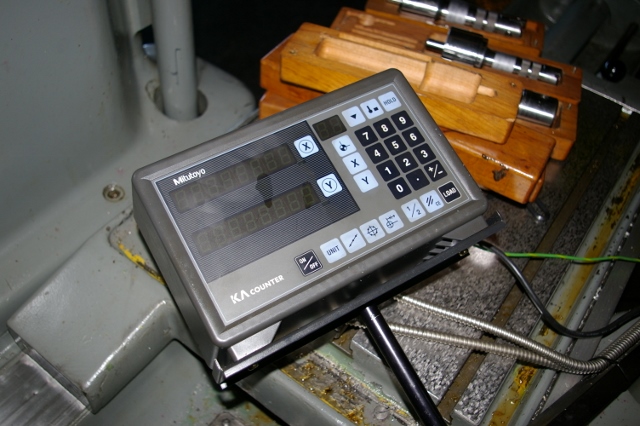

MITUTOYO 2 AXIS DIGITAL READOUT

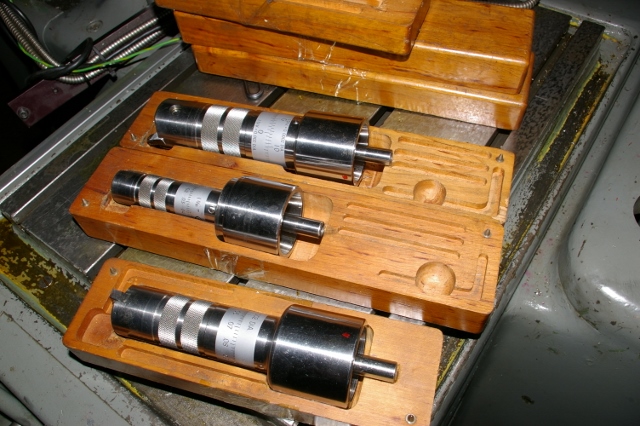

( 4 ) SIP BORING HEADS
RAPID TRAVERSE TO SPINDLE BY PULL LEVERS
SPINDLE POWER FEED WITH AUTOMATIC KNOCK OUT
AT PRESCRIBED DEPTH
STOCK# 18286
